The 50mil RT/duroid 6006 PCB, you can leverage its exceptional performance, reliability, and global availability to meet your specific design requirements.
Item NO.:
BIC-N12-v218.0Order(MOQ):
1-10Payment:
T/TProduct Origin:
ChinaShipping Port:
ShenzhenLead Time:

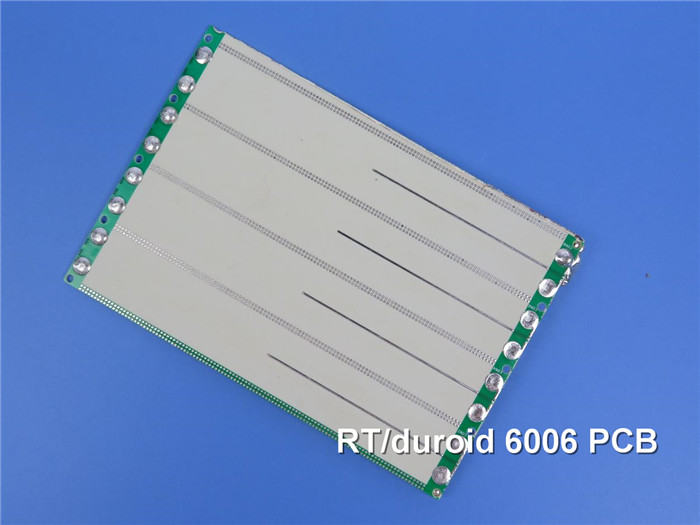

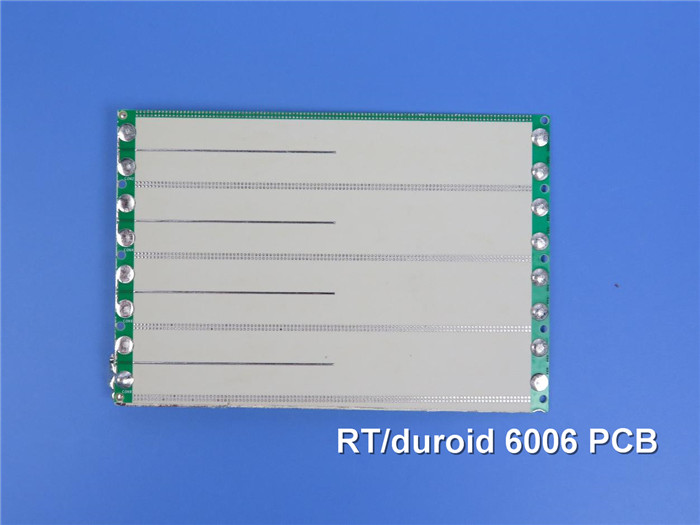

7-10 days50mil RT/duroid 6006 Material High Frequency PCB Rogers 6006 Board
The newly shipped 50mil RT/duroid 6006 PCB is a specific type of printed circuit board that utilizes the RT/duroid 6006 material. This material is a ceramic-filled PTFE (polytetrafluoroethylene) composite known for its excellent electrical performance and thermal stability.
The 50mil RT/duroid 6006 PCB refers to a PCB with a thickness of 50 mils, which is approximately 1.27 millimeters. This thickness option provides additional flexibility and durability for various applications, making it suitable for a wide range of electronic devices and systems.
RT/duroid 6006 PCB Construction details:
Construction Details |
Specifications |
Board Dimensions |
77mm x 59mm (2 Types = 2 PCS), +/- 0.15mm |
Minimum Trace/Space |
8/7 mils |
Minimum Hole Size |
0.5mm |
Blind or Buried Vias |
No |
Finished Board Thickness |
1.3mm |
Finished Cu Weight |
1 oz (1.4 mils) all layers |
Via Plating Thickness |
1 mil |
Surface Finish |
Immersion Gold |
Top Silkscreen |
No |
Bottom Silkscreen |
No |
Top Solder Mask |
Green |
Bottom Solder Mask |
No |
Silkscreen on Solder Pads |
No |
Electrical Test |
100% Electrical Test Used |
50mil RT/duroid 6006PCB Statistics:
PCB Statistics |
Quantity |
Components |
29 |
Total Pads |
54 |
Thru Hole Pads |
38 |
Top SMT Pads |
16 |
Bottom SMT Pads |
0 |
Vias |
23 |
Nets |
5 |
Here are some key features and characteristics of the 50mil RT/duroid 6006 substrate PCB:
Dielectric Constant: The RT/duroid 6006 material used in this PCB has a dielectric constant of 6.15±0.15. This value is an important factor in determining the signal propagation speed and impedance matching in high-frequency applications.
Loss Tangent: The loss tangent of the RT/duroid 6006 material is typically less than 0.0013. A low loss tangent indicates minimal signal loss and better signal integrity, which is crucial in high-frequency and high-speed applications.
Thermal Stability: The 50mil RT/duroid 6006 PCB has excellent thermal stability, allowing it to withstand a wide range of operating temperatures. It can operate reliably in temperatures ranging from -40℃ to +85℃, making it suitable for applications in various environments.
Electrical Conductivity: The RT/duroid 6006 material offers good electrical conductivity, with a volume resistivity of 7 x 107 Mohm.cm and a surface resistivity of 2 x 107 Mohm. This ensures efficient electrical performance and reliable conduction of signals.
Mechanical Strength: The 50mil RT/duroid 6006 PCB has robust mechanical properties, including a Young's modulus of 627 MPa, ultimate stress of 20 MPa, and ultimate strain of 12-13%. These properties provide durability and resistance to mechanical stresses and external forces.
Manufacturing Standards: The 50mil RT/duroid 6006 PCB is manufactured in compliance with industry standards and quality control processes. It typically adheres to the IPC-Class-2 standard, ensuring reliable manufacturing and consistent performance.
Applications: The 50mil RT/duroid 6006 PCB is commonly used in high-frequency and high-speed applications that require excellent signal integrity, such as telecommunications, aerospace, defense, and radar systems. Its versatility and reliability make it a popular choice for various electronic devices and equipment.
In summary, the 50mil RT/duroid 6006 high frequency PCB offers exceptional electrical performance, thermal stability, and mechanical strength. Its 50-mil thickness provides flexibility and durability, making it suitable for a wide range of applications. Whether you need reliable signal transmission or robust performance in demanding environments, the 50mil RT/duroid 6006 PCB can meet your requirements effectively.
