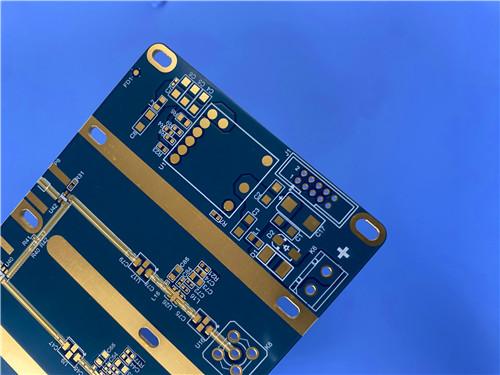

12-Layer Megtron6 -M6 High Speed PCB Panasonic R-5775G 2.0mm ENIG Resin-filled Capped Plating Via

12-Layer Megtron6 -M6 High Speed PCB Panasonic R-5775G 2.0mm ENIG Resin-filled Capped Plating Via

Introducing the 12-Layer Megtron6 (M6) High-Speed PCB—an advanced rigid circuit board designed to redefine performance in high-frequency, low-loss electronic systems. Built with Panasonic’s premium M6 R-5775 laminate, this 2.12mm-thick PCB delivers exceptional signal integrity, thermal reliability, and mechanical stability, making it the ideal choice for 5G communication, automotive ADAS, data centers, and aerospace applications. Below is a comprehensive breakdown of its technical specifications, design optimizations, and core advantages.

PCB Construction Details

The High Speed PCB’s construction is precision-calibrated to support high-speed signal transmission, featuring industry-leading materials and manufacturing processes to ensure consistency and reliability.

PCB Stackup

The 12-layer PCB stackup is meticulously engineered with M6 cores and R-5670 prepregs, optimizing dielectric thickness and copper distribution to enhance signal integrity and impedance control.

Precision Impedance Control

Consistent impedance is critical for high-speed signal integrity—this 12-layer M6 High Speed PCB features five tailored single-ended impedance configurations (50 ohm) to minimize signal reflection and attenuation:

Impedance-1: L1, 5.71mil trace, down reference to L2

Impedance-2: L3, 4.31mil trace, upper reference to L2 + down reference to L4

Impedance-3: L5, 4.71mil trace, upper reference to L4 + down reference to L7

Impedance-4: L8, 4.51mil trace, upper reference to L7 + down reference to L9

Impedance-5: L10, 4.31mil trace, upper reference to L9 + down reference to L11

PCB Statistics

The Megtron M6 PCB’s compact design accommodates a robust component layout, balancing density with assembly flexibility for diverse application needs.

Core Advantages: Megtron6 (M6) Material

At the heart of this PCB is Panasonic Megtron 6 R-5775 laminate—a high-performance copper-clad laminate (CCL) engineered for high-frequency reliability. Key material benefits include:

• Stable dielectric constant (Dk): 3.4 at 1GHz/23°C, 3.34 at 13GHz
• Ultra-low dissipation factor (Df): 0.002 at 1GHz/23°C, 0.0037 at 13GHz
• Excellent thermal stability: Tg >185°C (DSC), 210°C (DMA); Td = 410°C (TGA)
• Low coefficient of thermal expansion (CTE): X/Y = 16 ppm/°C, Z = 45 ppm/°C
• RoHS/halogen-free compliance (green manufacturing)
• Compatibility with standard FR-4 processing (no special equipment required)
• UL 94V-0 flammability rating
• Support for 4–30 layer designs (scalable for complex circuits)

Typical Applications

This Panasonic Megtron6 PCB is purpose-built for industries demanding high-speed, low-loss performance:

• 5G Communication: Millimeter-wave antennas, AAU (Active Antenna Unit) RF front-ends
• Automotive Electronics: 77GHz millimeter-wave radar, ADAS (Advanced Driver-Assistance Systems)
• Data Centers: 400G/800G optical modules, high-speed server motherboards
• Aerospace: Satellite communication, radar system high-frequency circuits
• Consumer Electronics: Wi-Fi 6E/7 routers, AR/VR devices

Quality & Availability

Manufactured to IPC-Class-3 standards (the highest grade for electronic assemblies), this PCB supports Gerber RS-274-X artwork and is available for worldwide shipping. It undergoes rigorous testing to ensure compliance with industry benchmarks, making it a trusted choice for global OEMs and contract manufacturers.

Whether you’re designing next-gen 5G infrastructure, automotive safety systems, or high-performance computing hardware, the 12-Layer Megtron6 High-Speed PCB delivers the precision, reliability, and performance needed to push the boundaries of electronic innovation.
