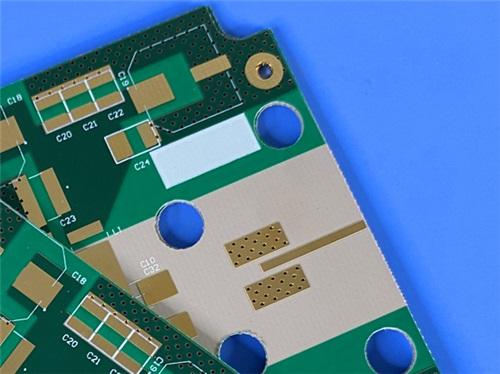

Designed for next-generation millimeter wave and RF/microwave applications, the MT77 2-Layer 10mil Immersion Gold PCB stands out as a cost-effective, high-performance solution—leveraging the breakthrough Astra MT77 laminate to deliver exceptional electrical stability and processing flexibility. Ideal for automotive radar systems and commercial RF designs, this Low-loss Dielectric PCB combines tight manufacturing tolerances, reliable construction, and industry-compliant standards to meet the demands of high-frequency applications where signal integrity and durability are non-negotiable. Below is a detailed breakdown of its specifications, design advantages, and application capabilities.

Core Material: Astra MT77 Laminate

At the heart of this PCB is Astra MT77, alow-loss dielectricPCBmaterial engineered for millimeter wave frequencies and beyond. Its ultra-low dissipation factor (Df = 0.0017 at 2/10 GHz) and stable dielectric constant (Dk = 3.0 at 2/10 GHz/23°C) outperform traditional alternatives like PTFE, while offering significant cost savings. The material maintains electrical stability across a broad temperature range (-40°C to +140°C) and up to W-band frequencies, making it perfect for harsh automotive environments. With a Tg of 200°C, UL 94-V0 flammability rating, and lead-free compatibility, Isola Astra MT77 ensures long-term reliability and compliance with global manufacturing standards.

PCB Construction Details

Below is a comprehensive breakdown of the Isola MT77 PCB’s construction parameters, ensuring transparency on critical manufacturing and performance-related specifications:

PCB Stackup

The 2-layer rigid stackup is optimized for signal integrity and structural stability, with precise layer thicknesses tailored to high-frequency performance:

PCB Statistics

Key design and component-related metrics highlight the 10 mil MT77 PCB’s layout efficiency and connectivity capabilities for targeted applications:

Key Features & Performance Advantages

Beyond its core material, the MT77 2-Layer PCB boasts standout features that elevate its performance:

1)Exceptional peel strength (5.7 lb/inch for 1oz copper) ensures robust component adhesion;

2)Minimal moisture absorption (0.1%) prevents performance degradation in humid environments;

3)Controlled thermal expansion (CTE: X/Y = 12 ppm/°C, Z = 250-350 ppm/°C) maintains dimensional stability under temperature fluctuations;

For manufacturers, its processing advantages are a game-changer: FR-4 process compatibility reduces production complexity, while short lamination cycles and reduced drill wear lower manufacturing costs. The material eliminates the need for plasma desmear, offers good flow/fill during assembly, and supports advanced designs like HDI, VIPPO, and multiple lamination cycles—providing flexibility for custom configurations.

Typical Applications

This Astra MT77 PCB is purpose-built for automotive radar and long-antenna systems, including:

• Adaptive cruise control
• Pre-crash detection
• Blind spot monitoring
• Lane departure warning
• Stop-and-go systems

Its low-loss properties and temperature stability make it indispensable for these safety-critical applications, where precise signal transmission directly impacts performance. Additionally, it suits commercial RF/microwave designs requiring reliable high-frequency operation.

Availability & Compliance

Supplied with Gerber RS-274-X artwork (the industry standard for PCB manufacturing), the MT77 2-Layer Immersion Gold PCB is available worldwide. It meets lead-free process requirements and UL 94-V0 safety standards, ensuring compatibility with global supply chains and regulatory frameworks.

Whether you’re developing next-gen automotive radar or high-performance RF systems, this PCB delivers the perfect balance of electrical performance, manufacturing flexibility, and cost-effectiveness—backed by the proven reliability of Astra MT77material.

If you need customized dimensions, adjusted copper weights, or additional technical details for your specific application, feel free to reach out—our engineering team can tailor the solution to your requirements.
