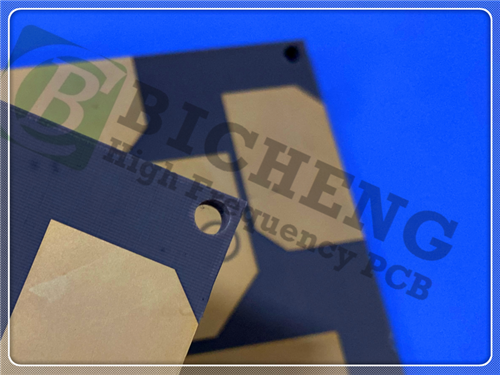

CuClad 250 PCB 20mil 0.508mm Laminates 2-layer High Frequency Printed Circuit Board with ENIG

CuClad 250 PCB 20mil 0.508mm Laminates 2-layer High Frequency Printed Circuit Board with ENIG

The CuClad 250 PCB is a state-of-the-art printed circuit board (PCB) designed to meet the demanding requirements of high-frequency and microwave applications. Manufactured using Rogers CuClad 250 laminates, this PCB delivers exceptional electrical, mechanical, and thermal performance, making it an ideal choice for industries such as aerospace, defense, telecommunications, and advanced electronics. With its unique construction, superior material properties, and precise manufacturing standards, the CuClad 250 high frequency circuit board stands out as a reliable and high-performance solution for engineers and designers seeking to optimize their high-frequency circuits.

Introduction to CuClad 250 Laminates

CuClad  250 laminates are engineered to provide a perfect balance of electrical and mechanical properties, making them a preferred choice for high-frequency applications. These laminates are composed of a cross-plied, woven fiberglass and polytetrafluoroethylene (PTFE) composite, which ensures excellent dimensional stability and low thermal expansion in all directions. The higher fiberglass-to-PTFE ratio in CuClad 250 substrates enhances mechanical strength, bringing it closer to that of conventional substrates while maintaining superior electrical performance.

Key Features

The CuClad 250 0.508mm Rogers PCB is designed to deliver outstanding performance in high-frequency environments. Below are its key features:

2.1 Low Dielectric Constant (Dk):

Dk range of 2.40 to 2.55 at 10GHz ensures consistent signal propagation and supports wider trace widths for reduced insertion loss.

2.2 Low Dissipation Factor (Df):

A Df of 0.0017 at 10GHz minimizes signal loss, making it ideal for high-frequency and microwave applications.

2.3 Low Moisture Absorption:

Moisture absorption of just 0.03% ensures reliable performance in humid environments.

2.4 Excellent Peel Strength:

Peel strength of 14 lbs/in ensures strong adhesion between copper layers and the substrate, enhancing durability.

2.5 Low Outgassing Properties:

Total Mass Loss (TML) of 0.01%, Collected Volatile Condensable Material (CVCM) of 0.0%, and Water Vapor Regain (WVR) of 0% make it suitable for aerospace and vacuum applications.

2.6 Cross-Plied Woven Fiberglass Construction:

Alternating plies oriented at 90 degrees to each other provide balanced mechanical and electrical properties.

2.7 High PTFE-to-Glass Ratio:

Ensures superior dielectric constant uniformity and low circuit losses compared to non-woven fiberglass laminates.

Benefits

The CuClad 250 20mil Rogers material PCB offers numerous advantages for high-frequency and microwave applications:

3.1 Enhanced Signal Integrity:

The low dielectric constant and dissipation factor ensure minimal signal loss and distortion, making it ideal for high-frequency circuits.

3.2 Improved Dimensional Stability:

The cross-plied construction and low thermal expansion coefficient ensure the PCB maintains its shape and performance under varying temperatures.

3.3 Wider Trace Widths:

The low dk pcb materials supports wider trace widths, reducing insertion loss and improving power handling capabilities.

3.4 High Reliability:

With low moisture absorption and excellent peel strength, the PCB performs reliably in harsh environments.

3.5 Versatility:

Suitable for a wide range of applications, including radar systems, microwave components, and sensitive electronic circuits.

3.6 Compliance with High Standards:

Manufactured to IPC-Class-2 quality standards, ensuring high reliability and performance.

PCB Stackup and Construction Details

The CuClad 250 PCB is a 2-layer rigid PCB with the following stackup:

Copper Layer 1: 35μm

Rogers CuClad 250 Core: 0.508 mm (20 mil)

Copper Layer 2: 35μm

Additional Construction Details:

PCB Statistics

The CuClad 250 PCB is designed with precision and efficiency in mind. Key statistics include:

Artwork and Quality Standards

Artwork Format: Gerber RS-274-X

Quality Standard: IPC-Class-2, ensuring high reliability and performance for commercial and industrial applications.

Availability

The CuClad 250 PCB is available worldwide, making it accessible to engineers and designers across the globe.

Typical Applications

The CuClad 250 Rogers PCB is well-suited for a variety of high-frequency and microwave applications, including:

-Radar Systems

-Electronic Countermeasures (ECM) and Electronic Support Measures (ESM)

-Microwave Components

-Sensitive Electronic Circuits

Why Choose theCuClad 250 PCB 20mil?

The CuClad 250 Rogers PCB board is a high-performance solution designed to meet the rigorous demands of modern high-frequency applications. Its unique combination of low dielectric constant, low dissipation factor, and excellent mechanical properties ensures reliable performance in even the most challenging environments. Whether you're designing radar systems, microwave components, or sensitive electronic circuits, theCuClad 250 PCBdelivers the performance, reliability, and precision you need to succeed.

Conclusion

TheCuClad 250 high frequency PCB is a testament to advanced PCB technology, offering unmatched performance for high-frequency and microwave applications. With its superior material properties, precise construction, and adherence to high-quality standards, this PCB is an excellent choice for engineers and designers seeking to optimize their high-frequency circuits. Available worldwide and backed by Rogers' reputation for quality, the CuClad 250 PCB is the ultimate solution for your high-performance PCB needs.

For more information or to place an order, contact us today and experience the difference that the CuClad 250 20mil PCB can make in your next project.
