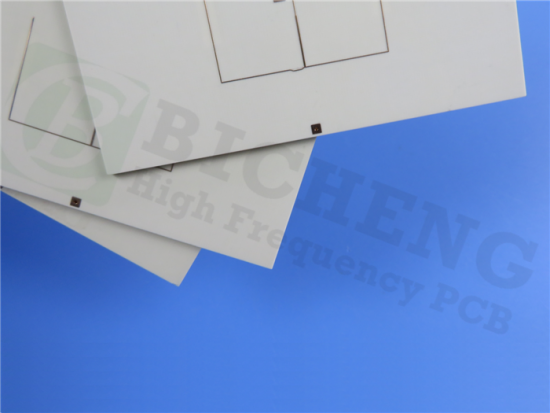

Double-Sided20mil 0.508mmRO4003C Material High FrequencyPCB
Introducing our latest product, a high-quality double-sided RO4003C PCB that is built to deliver superior performance and durability. This PCB is constructed using 20mil Rogers RO4003C material, which is designed to withstand extreme temperatures ranging from -40℃ to +85℃. With a lead-free process and a double-sided construction featuring base copper and 0.508mm RO4003C dielectric material, this PCB is built to last.
There is our newly shipped RO4003C PCB Construction details:
Parameter | Value |
Board dimensions | 144mm x 155mm = 1 PCS, +/- 0.15mm |
Minimum Trace/Space | 11/12 mils |
Minimum Hole Size | 0.5mm |
Blind/buried vias | No |
Finished board thickness | 0.68mm |
Finished Cu weight | 1.5 oz (2.1 mils) all layers |
Via plating thickness | 1 mil |
Surface finish | Electroless Nickel and Immersion Gold (ENIG) |
Top Silkscreen | No |
Bottom Silkscreen | No |
Top Solder Mask | Green |
Bottom Solder Mask | No |
Electrical Test | 100% |
Filled vias | 0.5mm via filled by resin and capped |
RO4003CPCB Statistics:
Parameter | Value |
Components | 21 |
Total Pads | 32 |
Thru Hole Pads | 23 |
Top SMT Pads | 9 |
Bottom SMT Pads | 0 |
Vias | 61 |
Nets | 9 |
Rogers RO4003C material is a high-frequency laminate that has several advantages over other materials when it comes to circuit board design and performance. Here are some of the advantages of using Rogers RO4003C material:
1. High Performance: Rogers RO4003C material has excellent dielectric constant and loss tangent properties, which makes it an ideal choice for high-frequency applications.
2. High Thermal Conductivity: The RO4003C material has high thermal conductivity, which allows for efficient heat dissipation from the PCB.
3. Low Water Absorption: RO4003C material has low water absorption properties, which means that it is less likely to absorb moisture and experience changes in its electrical properties due to moisture.
4. Compatibility with Lead-Free Processes: Rogers RO4003C material is compatible with lead-free processes, which makes it an environmentally friendly choice. It is also RoHS compliant, which means that it meets industry standards for the restriction of hazardous substances.
5. Wide Range of Thickness Options: Rogers RO4003C material is available in a wide range of thickness options, which makes it a versatile choice for a variety of applications.
6. Good Machinability: RO4003C material is easy to machine and can be used to create complex PCB designs with high precision. This makes it an ideal choice for applications that require high-density and complex circuitry.
If you have any technical questions about this PCB, please don't hesitate to contact Jane at sales20@bichengpcb.com. We're always here to help, and we look forward to hearing from you soon!
