Edge Castellated PCB Half Holes Circuit Boards 1.6mm FR-4 With Blue Solder Mask

This is a type of multi-layer PCB built on FR-4 substrate with Tg 135°C for the application of digital receivers.

  • Item NO.:

    BIC-453-v88.0
  • Order(MOQ):

    1-10
  • Payment:

    T/T
  • Price Range:1 - 50/$2.9
  • Price Range:1 - 50/$99
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-10 days
  • Product Detail

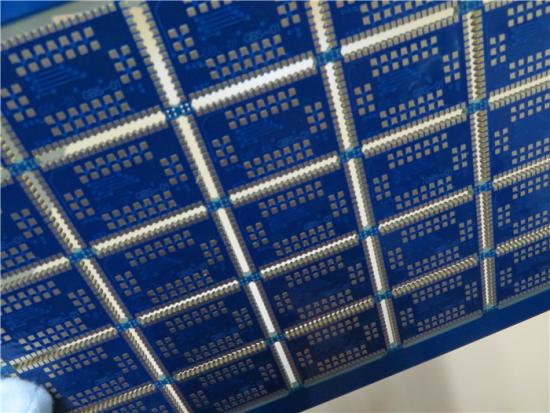

Edge Castellated PCB Half Holes Circuit Boards Built On 1.6mm FR-4 With Blue Solder Mask

(Printed circuits boards are custom-made products, the picture and parameters shown are just for reference)


1.1 General description


 It's 1.6 mm thick with white silkscreen(Taiyo) on blue solder mask and immersion gold on pads. The base material is from Shengyi supplying 25 up PCBs per panel. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 25 panels are packed for shipment.


1.2 Features and benefits



Lead free assemblies with a maximum reflow temperature of 260℃.

Good oxidation resistance and good heat dissipation.

Good shielding effect

Electrical test and high voltage test

8000 types of PCB per month

No minimum order quantity. 1 piece is available.

Free-of-charge PCB prototype test


Half holes PCB


1.4 PCB Specifications


BOARD TYPE Multilayer PCB
Number of Layers 4 layer PCB
Surface Mount Components YES
Through Hole Components YES
LAYER STACKUP Top layer --- 0.018mm +plating
PP 2116 (54%) + 1080(64%)+2116(54%)
Innerlayer 1 --- 0.018mm
Core FR-4 --- 0.79mm
Innerlayer 2 --- 0.018mm
PP 2116 (54%) + 1080(64%)+2116(54%)
Bottom layer --- 0.018mm +plating
TECHNOLOGY
Minimum Trace and Space: 7.8 mil / 7.1 mil
Minimum / Maximum Holes: 0.4 mm /3.175 mm
Number of Different Holes: 5
Number of Drill Holes: 491
Number of Milled Slots: 60
Number of Internal Cutouts: 0
Impedance Control: 0
Number of Gold finger: 0
BOARD MATERIAL
Glass Epoxy:  FR-4 Tg135℃, S1141, Shengyi
Final foil external:  1 oz
Final foil internal:  0.5 oz
Final height of PCB:  1.6mm ±0.16
PLATING AND COATING
Surface Finish Immersion gold (22.5% ) 0.1µm over 3µm nickel
Solder Mask Apply To:  TOP and Bottom, 12micron Minimum
Solder Mask Color:  Blue, R-500 BL, Onstatic
Solder Mask Type: LPSM
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend TOP and Bottom.
Colour of Component Legend White, S-380W, Taiyo
Manufacturer Name or Logo:  Marked on the board in a conductor and leged FREE AREA
VIA plated through hole(PTH), minimum size 0.3mm.
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension:   0.0059"
Board plating: 0.0029"
Drill tolerance:  0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.



1.4 Applications


GPS Tracking Device

Digital Receiver

Electrical Transformers

Switch Hub

USB Modems

Portable Sound Systems

Modem Router 4G

Cheap PLC

Game Player

Converters


1.5 Our Advantages


1. ISO9001, ISO14001, ISO13485, UL certified manufacturing factory;

2. PCB manufacturing is strictly as per required specifications;

3. Meeting your PCB needs from prototype to mass production;

4. Powerful PCB capabilities support your research and development, sales and marketing;

5. Delivery on time higher than 98% on-time-delivery rate;

6. 30000㎡output capability per month;

7. Prototype PCB capability to Volume Production capability;

8. IPC Class 2 / IPC Class 3;


1.6 More Displays of Half Holes PCBs


 More half holes PCB



MANUFACTURING PROCESS:


Process PTH PCB


BICHENG PCB WORKSHOP:



BICHENG PCB CERTIFICATE:



BICHENG MAIN COURIERS:
