F4BM300 High Frequency PCB DK3.0 0.6mm PTFE substrates 2oz Copper With Immersion Gold
(PCB's are custom-made products, the picture and parameters shown are just for reference)
Brief Introduction

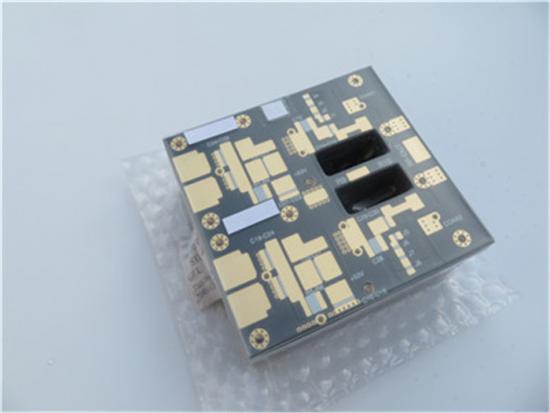

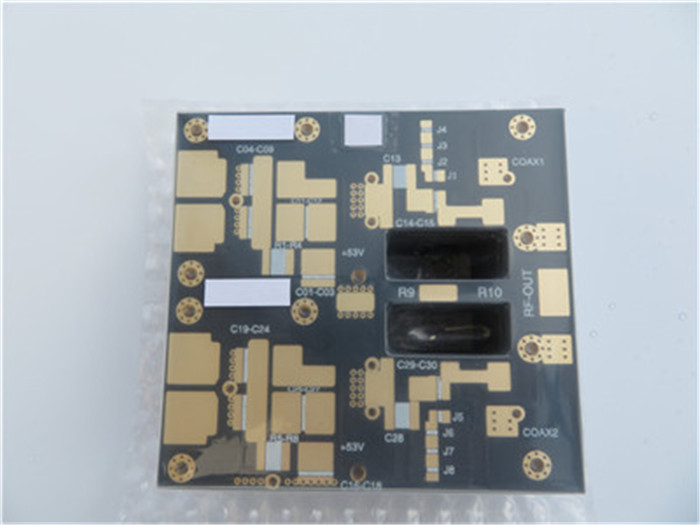

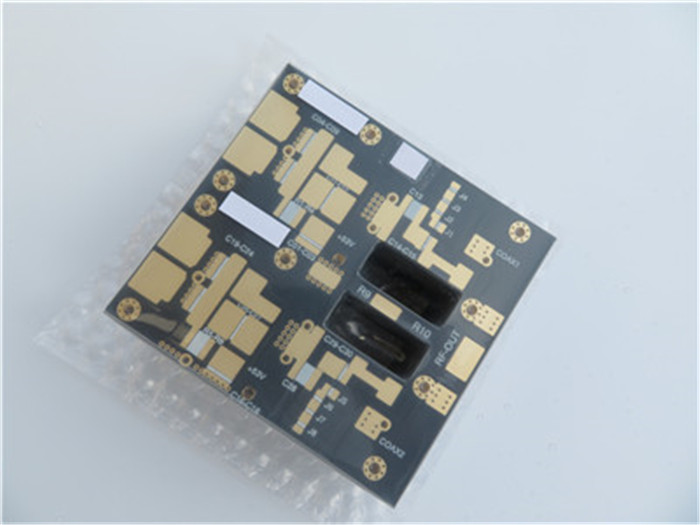

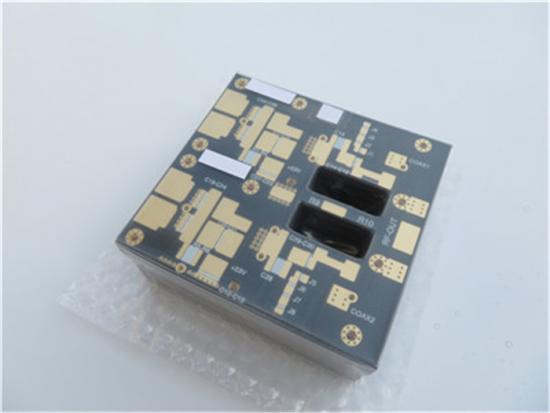

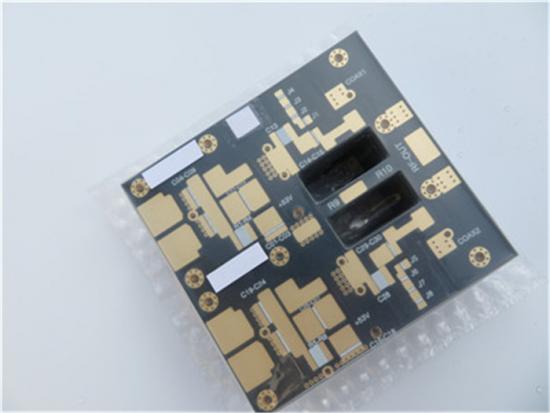

This F4B PCB features a square design with dimensions of 85mm x 85 mm, utilizing a double-sided layout that contains two layers of copper. It is compatible with surface mount components, while through-hole components are not included in this design.
This F4BM300 High Frequency PCB’s layer stackup consists of a top layer made of 70 µm (2 oz) copperstartingwith1ozplating, along with a durable F4BM300 core material that has a thickness of 0.508 mm. The bottom layer also incorporates 70 µm (1 oz) copper with plating, ensuring reliable performance.
The surface finish is Immersion Gold, which enhances solderability and provides excellent protection against corrosion. A black solder mask is applied to the top side of the F4B PTFE substrate PCB, offering both durability and a sleek appearance while safeguarding the underlying circuitry.
Here are details in table below.
|
PCB SIZE
|
85 x 85mm=1PCS
|
|
BOARD TYPE
|
Double sided PCB
|
|
Number of Layers
|
2 layers
|
|
Surface Mount Components
|
YES
|
|
Through Hole Components
|
NO
|
|
LAYER STACKUP
|
copper ------- 70um (1 oz+plate) TOP layer
|
|
F4BM300 - 0.508mm
|
|
copper ------- 70um(1 oz + plate) BOT Layer
|
|
TECHNOLOGY
|
|
|
Minimum Trace and Space:
|
5 mil / 8 mil
|
|
Minimum / Maximum Holes:
|
0.3 mm / 1.2 mm
|
|
Number of Different Holes:
|
5
|
|
Number of Drill Holes:
|
79
|
|
Number of Milled Slots:
|
2
|
|
Number of Internal Cutouts:
|
2
|
|
Impedance Control:
|
no
|
|
Number of Gold finger:
|
0
|
|
BOARD MATERIAL
|
|
|
Glass Epoxy:
|
F4BM300 DK 3.0
|
|
Final foil external:
|
2oz
|
|
Final foil internal:
|
N/A
|
|
Final height of PCB:
|
0.6 mm ±10%
|
|
PLATING AND COATING
|
|
|
Surface Finish
|
Immersion gold
|
|
Solder Mask Apply To:
|
Top
|
|
Solder Mask Color:
|
Black
|
|
Solder Mask Type:
|
no
|
|
CONTOUR/CUTTING
|
Routing
|
|
MARKING
|
|
|
Side of Component Legend
|
Top
|
|
Colour of Component Legend
|
White
|
|
Manufacturer Name or Logo:
|
Marked on the board in a conductor and leged FREE AREA
|
|
VIA
|
Non-Plated through hole(PTH), minimum size 0.3mm.
|
|
FLAMIBILITY RATING
|
UL 94-V0 Approval MIN.
|
|
DIMENSION TOLERANCE
|
|
|
Outline dimension:
|
0.0059"
|
|
Board plating:
|
0.0029"
|
|
Drill tolerance:
|
0.002"
|
|
TEST
|
100% Electrical Test prior shipment
|
|
TYPE OF ARTWORK TO BE SUPPLIED
|
email file, Gerber RS-274-X, PCBDOC etc
|
|
SERVICE AREA
|
Worldwide, Globally.
|
F4BM High Frequency Laminates
F4BM series materials are made by scientifically formulating and strictly pressing a combination of fiberglass cloth, polytetrafluoroethylene resin, and polytetrafluoroethylene film. Its electrical performance is improved compared to F4B substrates, mainly due to a wider range of dielectric constants, lower dielectric loss, increased insulation resistance, and improved stability. It can replace similar foreign products.
Features & Benefits
-DK options available: 2.17 to 3.0, customizable DK
-Low loss
-F4BME paired with RTF copper foil, excellent PIM performance
-Diverse sizes, cost-effective
-Radiation resistance, low outgassing
-Commercialized, large-scale production, high cost-effectiveness
Typical Applications
Microwave, RF, radar
Phase shifter, passive components
Power divider, coupler and combiner
Feed network, phased array antenna
Satellite communication, base station antenna
Our PCB Capability (F4BM)
|
PCB Capability (F4BM)
|
|
PCB Material:
|
PTFE glass fiber cloth copper clad laminates
|
|
Designation (F4BM )
|
F4BM
|
DK (10GHz)
|
DF (10 GHz)
|
|
F4BM217
|
2.17±0.04
|
0.0010
|
|
F4BM220
|
2.20±0.04
|
0.0010
|
|
F4BM233
|
2.33±0.04
|
0.0011
|
|
F4BM245
|
2.45±0.05
|
0.0012
|
|
F4BM255
|
2.55±0.05
|
0.0013
|
|
F4BM265
|
2.65±0.05
|
0.0013
|
|
F4BM275
|
2.75±0.05
|
0.0015
|
|
F4BM294
|
2.94±0.06
|
0.0016
|
|
F4BM300
|
3.00±0.06
|
0.0017
|
|
Layer count:
|
Single Sided, Double Sided PCB, Multilayer PCB, Hybrid PCB
|
|
Copper weight:
|
0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
|
|
Dielectric thickness (or overall thickness)
|
0.127mm (dielectric), 0.2mm, 0.25mm, 0.5mm, 0.508mm, 0.762mm, 0.8mm, 1.0mm, 1.5mm, 1.524mm, 1.575mm, 2.0mm, 2.5mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm, 8.0mm, 10.0mm, 12.0mm
|
|
PCB size:
|
≤400mm X 500mm
|
|
Solder mask:
|
Green, Black, Blue, Yellow, Red etc.
|
|
Surface finish:
|
Bare copper, HASL, ENIG, Immersion silver, Immersion tin, OSP, Pure gold, ENEPIG etc..
|
Data Sheet (F4BM)
|
Product Technical Parameters
|
Product Model & Data Sheet
|
|
Product Features
|
Test Conditions
|
Unit
|
F4BM217
|
F4BM220
|
F4BM233
|
F4BM245
|
F4BM255
|
F4BM265
|
F4BM275
|
F4BM294
|
F4BM300
|
|
Dielectric Constant (Typical)
|
10GHz
|
/
|
2.17
|
2.2
|
2.33
|
2.45
|
2.55
|
2.65
|
2.75
|
2.94
|
3.0
|
|
Dielectric Constant Tolerance
|
/
|
/
|
±0.04
|
±0.04
|
±0.04
|
±0.05
|
±0.05
|
±0.05
|
±0.05
|
±0.06
|
±0.06
|
|
Loss Tangent (Typical)
|
10GHz
|
/
|
0.001
|
0.001
|
0.0011
|
0.0012
|
0.0013
|
0.0013
|
0.0015
|
0.0016
|
0.0017
|
|
20GHz
|
/
|
0.0014
|
0.0014
|
0.0015
|
0.0017
|
0.0018
|
0.0019
|
0.0021
|
0.0023
|
0.0025
|
|
Dielectric Constant Temperature Coefficient
|
-55ºC～150ºC
|
PPM/℃
|
-150
|
-142
|
-130
|
-120
|
-110
|
-100
|
-92
|
-85
|
-80
|
|
Peel Strength
|
1 OZ F4BM
|
N/mm
|
>1.8
|
>1.8
|
>1.8
|
>1.8
|
>1.8
|
>1.8
|
>1.8
|
>1.8
|
>1.8
|
|
1 OZ F4BME
|
N/mm
|
>1.6
|
>1.6
|
>1.6
|
>1.6
|
>1.6
|
>1.6
|
>1.6
|
>1.6
|
>1.6
|
|
Volume Resistivity
|
Standard Condition
|
MΩ.cm
|
≥6×10^6
|
≥6×10^6
|
≥6×10^6
|
≥6×10^6
|
≥6×10^6
|
≥6×10^6
|
≥6×10^6
|
≥6×10^6
|
≥6×10^6
|
|
Surface Resistivity
|
Standard Condition
|
MΩ
|
≥1×10^6
|
≥1×10^6
|
≥1×10^6
|
≥1×10^6
|
≥1×10^6
|
≥1×10^6
|
≥1×10^6
|
≥1×10^6
|
≥1×10^6
|
|
Electrical Strength (Z direction)
|
5KW，500V/s
|
KV/mm
|
>23
|
>23
|
>23
|
>25
|
>25
|
>25
|
>28
|
>30
|
>30
|
|
Breakdown Voltage (XY direction)
|
5KW，500V/s
|
KV
|
>30
|
>30
|
>32
|
>32
|
>34
|
>34
|
>35
|
>36
|
>36
|
|
Coefficientof Thermal Expansion
|
XY direction
|
-55 º~288ºC
|
ppm/ºC
|
25, 34
|
25, 34
|
22, 30
|
20, 25
|
16, 21
|
14, 17
|
14, 16
|
12, 15
|
12, 15
|
|
Z direction
|
-55 º~288ºC
|
ppm/ºC
|
240
|
240
|
205
|
187
|
173
|
142
|
112
|
98
|
95
|
|
Thermal Stress
|
260℃, 10s，3 times
|
No delamination
|
No delamination
|
No delamination
|
No delamination
|
No delamination
|
No delamination
|
No delamination
|
No delamination
|
No delamination
|
|
Water Absorption
|
20±2℃, 24 hours
|
%
|
≤0.08
|
≤0.08
|
≤0.08
|
≤0.08
|
≤0.08
|
≤0.08
|
≤0.08
|
≤0.08
|
≤0.08
|
|
Density
|
Room Temperature
|
g/cm3
|
2.17
|
2.18
|
2.20
|
2.22
|
2.25
|
2.25
|
2.28
|
2.29
|
2.29
|
|
Long-Term Operating Temperature
|
High-Low Temperature Chamber
|
℃
|
-55～+260
|
-55～+260
|
-55～+260
|
-55～+260
|
-55～+260
|
-55～+260
|
-55～+260
|
-55～+260
|
-55～+260
|
|
Thermal Conductivity
|
Z direction
|
W/(M.K)
|
0.24
|
0.24
|
0.28
|
0.30
|
0.33
|
0.36
|
0.38
|
0.41
|
0.42
|
|
PIM
|
Only applicable to F4BME
|
dBc
|
≤-159
|
≤-159
|
≤-159
|
≤-159
|
≤-159
|
≤-159
|
≤-159
|
≤-159
|
≤-159
|
|
Flammability
|
/
|
UL-94
|
V-0
|
V-0
|
V-0
|
V-0
|
V-0
|
V-0
|
V-0
|
V-0
|
V-0
|
|
Material Composition
|
/
|
/
|
PTFE, Fiberglass Cloth
F4BM paired with ED copper foil, F4BME paired with reverse-treated (RTF) copper foil.
|
