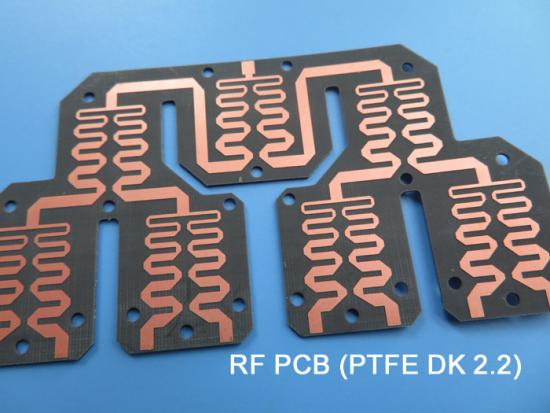

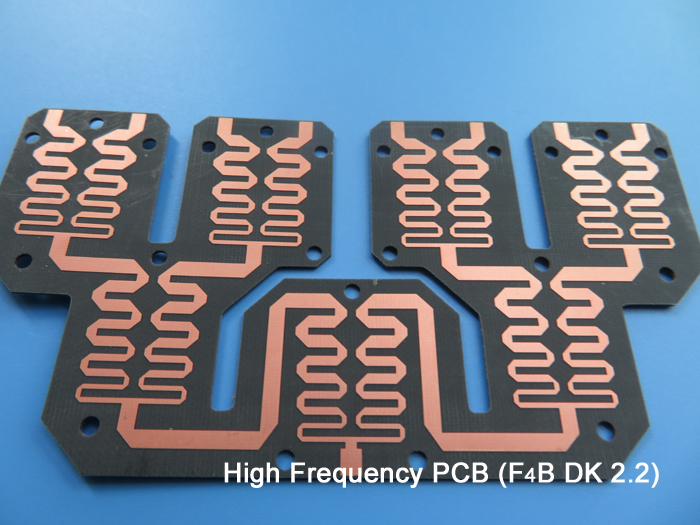

F4BME220 High Frequency PCB PTFE DK2.2 Dual Layer Cheap RF PWB for Couplers
(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)
Brief Introduction
This F4BME220 PCB features a size of 100 x 100 mm and is designed as a double-sided board with two layers. It supports surface mount components while excluding through-hole components. The layer stackup consists of a top layer made of 35 µm (1 oz) copperstartingwith0.5ozplating, paired with a robust F4BME220 core material of 1.0 mm thickness, and a matching 35 µm (1 oz) copper bottom layer. The surface finish is OSP (Organic Solderability Preservative), ensuring reliable soldering performance. Notably, this PCB does not have a solder mask applied.
Here are the details in table below.
PCB Specifications
|
PCB SIZE
|
100 x 100mm=1PCS
|
|
BOARD TYPE
|
Double sided PCB
|
|
Number of Layers
|
2 layers
|
|
Surface Mount Components
|
YES
|
|
Through Hole Components
|
NO
|
|
LAYER STACKUP
|
copper ------- 35um(0.5 oz +plate) TOP layer
|
|
F4BME220 1.0mm
|
|
copper ------- 35um(0.5 oz + plate) BOT Layer
|
|
TECHNOLOGY
|
|
|
Minimum Trace and Space:
|
10 mil / 10 mil
|
|
Minimum / Maximum Holes:
|
0.4 mm / 0.4 mm
|
|
Number of Different Holes:
|
1
|
|
Number of Drill Holes:
|
1
|
|
Number of Milled Slots:
|
0
|
|
Number of Internal Cutouts:
|
0
|
|
Impedance Control:
|
no
|
|
Number of Gold finger:
|
0
|
|
BOARD MATERIAL
|
|
|
Glass Epoxy:
|
F4BME220 DK 2.2
|
|
Final foil external:
|
1oz
|
|
Final foil internal:
|
N/A
|
|
Final height of PCB:
|
1.1 mm ±10%
|
|
PLATING AND COATING
|
|
|
Surface Finish
|
OSP
|
|
Solder Mask Apply To:
|
no
|
|
Solder Mask Color:
|
no
|
|
Solder Mask Type:
|
no
|
|
CONTOUR/CUTTING
|
Routing
|
|
MARKING
|
|
|
Side of Component Legend
|
NO
|
|
Colour of Component Legend
|
NO
|
|
Manufacturer Name or Logo:
|
Marked on the board in a conductor and leged FREE AREA
|
|
VIA
|
Non-Plated through hole(PTH), minimum size 0.4mm.
|
|
FLAMIBILITY RATING
|
UL 94-V0 Approval MIN.
|
|
DIMENSION TOLERANCE
|
|
|
Outline dimension:
|
0.0059"
|
|
Board plating:
|
0.0029"
|
|
Drill tolerance:
|
0.002"
|
|
TEST
|
100% Electrical Test prior shipment
|
|
TYPE OF ARTWORK TO BE SUPPLIED
|
email file, Gerber RS-274-X, PCBDOC etc
|
|
SERVICE AREA
|
Worldwide, Globally.
|
F4BME High Frequency Laminates
F4BME series laminates are made by scientifically formulating and strictly pressing a combination of fiberglass cloth, polytetrafluoroethylene resin, and polytetrafluoroethylene film. Its electrical performance is improved compared to F4B, mainly due to a wider range of dielectric constants, lower dielectric loss, increased insulation resistance, and improved stability. It can replace similar foreign products.
Features
◆ DK2.17～3.0 is optional, and DK can be customized
◆ Low loss
◆ F4BME with RTF copper foil has excellent PIM index
◆ Diversified size and cost saving
◆ Irradiation resistance and low exhaust
◆ Commercialization, mass production and high cost performance
Typical Applications
◆ Microwave, RF, radar
◆ Phase shifter, passive components
◆ Power divider, coupler and combiner
◆ Feed network, phased array antenna
◆ Satellite communication, base station antenna
Our PCB Capability(F4BME)
|
PCB Capability (F4BME)
|
|
PCB Material:
|
PTFE glass fiber cloth copper clad laminates
|
|
Designation (F4BME )
|
F4BME
|
DK (10GHz)
|
DF (10 GHz)
|
|
F4BME217
|
2.17±0.04
|
0.0010
|
|
F4BME220
|
2.20±0.04
|
0.0010
|
|
F4BME233
|
2.33±0.04
|
0.0011
|
|
F4BME245
|
2.45±0.05
|
0.0012
|
|
F4BME255
|
2.55±0.05
|
0.0013
|
|
F4BME265
|
2.65±0.05
|
0.0013
|
|
F4BME275
|
2.75±0.05
|
0.0015
|
|
F4BME294
|
2.94±0.06
|
0.0016
|
|
F4BME300
|
3.00±0.06
|
0.0017
|
|
Layer count:
|
Single Sided, Double Sided PCB, Multilayer PCB, Hybrid PCB
|
|
Copper weight:
|
0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
|
|
Dielectric thickness (or overall thickness)
|
0.127mm (dielectric), 0.2mm, 0.25mm, 0.5mm, 0.508mm, 0.762mm, 0.8mm, 1.0mm, 1.5mm, 1.524mm, 1.575mm, 2.0mm, 2.5mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm, 8.0mm, 10.0mm, 12.0mm
|
|
PCB size:
|
≤400mm X 500mm
|
|
Solder mask:
|
Green, Black, Blue, Yellow, Red etc.
|
|
Surface finish:
|
Bare copper, HASL, ENIG, Immersion silver, Immersion tin, OSP, Pure gold, ENEPIG etc..
|
Data Sheets (F4BME)
|
Product Technical Parameters
|
Product Model & Data Sheet
|
|
Product Features
|
Test Conditions
|
Unit
|
F4BME217
|
F4BME220
|
F4BME233
|
F4BME245
|
F4BME255
|
F4BME265
|
F4BME275
|
F4BME294
|
F4BME300
|
|
Dielectric Constant (Typical)
|
10GHz
|
/
|
2.17
|
2.2
|
2.33
|
2.45
|
2.55
|
2.65
|
2.75
|
2.94
|
3.0
|
|
Dielectric Constant Tolerance
|
/
|
/
|
±0.04
|
±0.04
|
±0.04
|
±0.05
|
±0.05
|
±0.05
|
±0.05
|
±0.06
|
±0.06
|
|
Loss Tangent (Typical)
|
10GHz
|
/
|
0.001
|
0.001
|
0.0011
|
0.0012
|
0.0013
|
0.0013
|
0.0015
|
0.0016
|
0.0017
|
|
20GHz
|
/
|
0.0014
|
0.0014
|
0.0015
|
0.0017
|
0.0018
|
0.0019
|
0.0021
|
0.0023
|
0.0025
|
|
Dielectric Constant Temperature Coefficient
|
-55ºC～150ºC
|
PPM/℃
|
-150
|
-142
|
-130
|
-120
|
-110
|
-100
|
-92
|
-85
|
-80
|
|
Peel Strength
|
1 OZ F4BM
|
N/mm
|
>1.8
|
>1.8
|
>1.8
|
>1.8
|
>1.8
|
>1.8
|
>1.8
|
>1.8
|
>1.8
|
|
1 OZ F4BME
|
N/mm
|
>1.6
|
>1.6
|
>1.6
|
>1.6
|
>1.6
|
>1.6
|
>1.6
|
>1.6
|
>1.6
|
|
Volume Resistivity
|
Standard Condition
|
MΩ.cm
|
≥6×10^6
|
≥6×10^6
|
≥6×10^6
|
≥6×10^6
|
≥6×10^6
|
≥6×10^6
|
≥6×10^6
|
≥6×10^6
|
≥6×10^6
|
|
Surface Resistivity
|
Standard Condition
|
MΩ
|
≥1×10^6
|
≥1×10^6
|
≥1×10^6
|
≥1×10^6
|
≥1×10^6
|
≥1×10^6
|
≥1×10^6
|
≥1×10^6
|
≥1×10^6
|
|
Electrical Strength (Z direction)
|
5KW，500V/s
|
KV/mm
|
>23
|
>23
|
>23
|
>25
|
>25
|
>25
|
>28
|
>30
|
>30
|
|
Breakdown Voltage (XY direction)
|
5KW，500V/s
|
KV
|
>30
|
>30
|
>32
|
>32
|
>34
|
>34
|
>35
|
>36
|
>36
|
|
Coefficientof Thermal Expansion
|
XY direction
|
-55 º~288ºC
|
ppm/ºC
|
25, 34
|
25, 34
|
22, 30
|
20, 25
|
16, 21
|
14, 17
|
14, 16
|
12, 15
|
12, 15
|
|
Z direction
|
-55 º~288ºC
|
ppm/ºC
|
240
|
240
|
205
|
187
|
173
|
142
|
112
|
98
|
95
|
|
Thermal Stress
|
260℃, 10s，3 times
|
No delamination
|
No delamination
|
No delamination
|
No delamination
|
No delamination
|
No delamination
|
No delamination
|
No delamination
|
No delamination
|
|
Water Absorption
|
20±2℃, 24 hours
|
%
|
≤0.08
|
≤0.08
|
≤0.08
|
≤0.08
|
≤0.08
|
≤0.08
|
≤0.08
|
≤0.08
|
≤0.08
|
|
Density
|
Room Temperature
|
g/cm3
|
2.17
|
2.18
|
2.20
|
2.22
|
2.25
|
2.25
|
2.28
|
2.29
|
2.29
|
|
Long-Term Operating Temperature
|
High-Low Temperature Chamber
|
℃
|
-55～+260
|
-55～+260
|
-55～+260
|
-55～+260
|
-55～+260
|
-55～+260
|
-55～+260
|
-55～+260
|
-55～+260
|
|
Thermal Conductivity
|
Z direction
|
W/(M.K)
|
0.24
|
0.24
|
0.28
|
0.30
|
0.33
|
0.36
|
0.38
|
0.41
|
0.42
|
|
PIM
|
Only applicable to F4BME
|
dBc
|
≤-159
|
≤-159
|
≤-159
|
≤-159
|
≤-159
|
≤-159
|
≤-159
|
≤-159
|
≤-159
|
|
Flammability
|
/
|
UL-94
|
V-0
|
V-0
|
V-0
|
V-0
|
V-0
|
V-0
|
V-0
|
V-0
|
V-0
|
|
Material Composition
|
/
|
/
|
PTFE, Fiberglass Cloth
F4BM paired with ED copper foil, F4BME paired with reverse-treated (RTF) copper foil.
|
