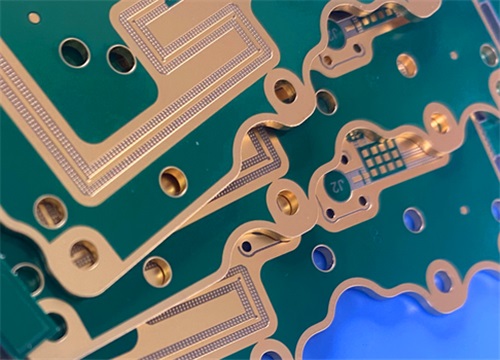

Overview

This 4-layer printed circuit board is a high-performance radio frequency (RF) and microwave substrate assembly engineered for demanding high-frequency signal integrity, dimensional stability, and reliable hybrid integration. It adopts a mixed dielectric stackup combining Rogers RO3210 ceramic-filled woven glasshigh-frequency laminate and RO4450F high-frequency bonding film, delivering stable dielectric properties, low loss, and excellent mechanical rigidity for aerospace, automotive radar, satellite communication, wireless base station, and broadband transmission applications.

The board is manufactured under strict IPC Class 2 or Class 3 fabrication standards, with full electrical verification before delivery to ensure consistent performance in high-speed and high-frequency operating environments.

PCB Construction Details

The following table summarizes the complete structural and processing specifications of this 4-layer PCB, with all parameters verified by actual production and measurement.

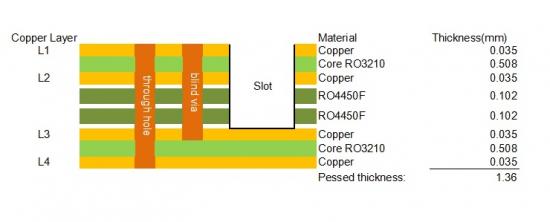

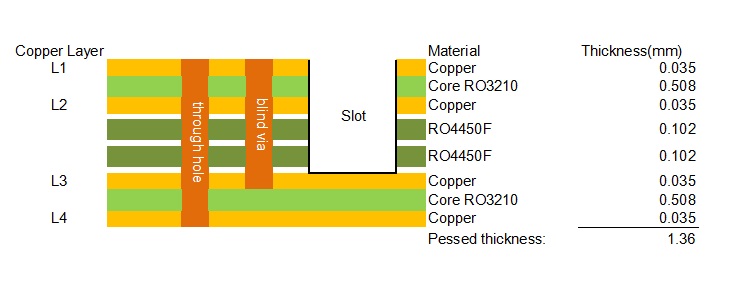

PCB Stackup

The stackup is symmetric and optimized for impedance consistency, thermal distribution, and low electromagnetic interference.

This stackup uses Rogers 3210 as the core dielectric for low loss and stable Dk, and RO4450F as the bonding medium to maintain uniform electrical performance across layers. The thickness budget is precisely allocated to achieve target characteristic impedance (typically 50Ωfor RF lines) and minimize signal skew. Ground/power layers (L2, L3) provide shielding and low-impedance return paths, greatly improving signal integrity and anti-interference capability.

Electrical & Mechanical Performance Characteristics

This 4-layer RO3210 PCB inherits the advantages of Rogers high-frequency substrates while achieving optimized hybrid performance through mixed dielectric design. Key characteristics include:

1) Stable Dielectric Properties

RO3210 provides a typical dielectric constant (Dk) of 10.2 at 10GHz, with a dissipation factor (Df) as low as 0.0027, ensuring low insertion loss and low phase noise in microwave and millimeter-wave bands. The thermal coefficient of Dk is–45ppm/°C (0–100°C, 10GHz), maintaining stable electrical performance across wide temperature ranges.

2) Excellent Dimensional Stability

The woven glass reinforcement in RO3210 delivers high rigidity and low in-plane thermal expansion (13ppm/°C in X/Y axis), closely matched to copper. This minimizes warpage, ensures reliable surface-mount assembly, and supports hybrid integration with epoxy multilayer boards.

3) High Reliability & Thermal Resistance

The decomposition temperature (Td) of RO3210 exceeds 500°C, compatible with lead-free reflow processes. The board achieves UL 94 V-0 flammability rating, with volume resistivity above 10³MΩ·cm and surface resistivity above 10³MΩ, ensuring insulation reliability.

4) Fine-Line Capability

The smooth surface of RO3210 supports fine-line etching down to tight tolerances, suitable for high-density RF layouts, patch antennas, and microstrip circuits.

5) Structural & Assembly Stability

Finished board thickness is tightly controlled at 1.321mm. Blind vias (L1–L3) reduce via stub effects and improve high-frequency performance. Deep controlled grooves from the top to L2 allow embedded components and thermal vias. ISIG surface finish ensures consistent solderability and protects circuits from oxidation.

Application Fields

This 4-layer RO3210 + RO4450F mixed-dielectric PCB is ideal for:

• Automotive collision avoidance radar & GPS antennas
• Satellite communication & direct broadcast systems
• Wireless base stations & microwave backhaul
• LMDS & broadband wireless access
• High-frequency power backplanes
• Remote monitoring & data link systems
• Military & aerospace RF modules

It is particularly suitable for products requiring both high-frequency performance and multilayer wiring density.

RO3210 Ceramic-Filled High-Frequency Laminate (CCL)–Full Specification Explanation

RO3210 is a ceramic-filled, woven glass-reinforced high-frequency laminate from Rogers Corporation, designed as part of the RO3200 series, an extension of the RO3000® platform with enhanced mechanical stability. It combines the surface smoothness of non-woven PTFE materials and the rigidity of woven glass PTFE laminates, enabling fine-line fabrication while maintaining robust mechanical properties.

Core Features & Benefits

1)Woven glass reinforcement: Improves rigidity and handling; reduces warpage during processing and assembly.

2)Uniform electrical & mechanical performance: Ideal for complex multilayer high-frequency structures.

3)Low in-plane CTE (matched to copper): Supports hybrid designs with epoxy multilayers and reliable SMT assembly.

4)Excellent dimensional stability: Improves production yield and pattern accuracy.

5)Economically priced: Suitable for cost-sensitive volume manufacturing.

6)Smooth surface: Enables fine-line etching with tight tolerances

Typical Applications of RO3210 CCL

• Automotive collision avoidance systems
• Automotive GPS satellite antennas
• Wireless telecommunication systems
• Microstrip patch antennas
• Direct broadcast satellites
• Cable data links
• Remote meter readers
• Power backplanes
• LMDS & wireless broadband
• Base station infrastructure

Full Electrical & Mechanical Properties (From Official Data Sheet)

Standard Specifications

• Standard thicknesses: 0.025”(0.64mm), 0.050”(1.28mm)
• Standard panel sizes: 12”×18”(305×457mm), 24”×18”(610×457mm)
• Standard copper cladding:½oz (17μm), 1oz (35μm), 2oz (70μm) electrodeposited copper

Manufacturing & Quality

RO3210 high frequency PCB is manufactured under ISO 9002 certified quality systems. It uses standard PTFE PCB fabrication processes, ensuring compatibility with mainstream high-frequency board manufacturing.

Summary

RO3210 is a cost-competitive, high-performance high-frequency laminate that balances electrical performance, mechanical stability, and processability. When combined with RO4450F in a 4-layer mixed-dielectric stackup, it creates a high-reliability PCB ideal for advanced RF, microwave, and automotive communication systems requiring consistent performance, low loss, and long-term durability.
