F4BTMS1000 PCB 2-layer 1.905mm Thick DK10.2 ENIG Wangling F4BTMS Series Substrates

F4BTMS1000 PCB 2-layer 1.905mm Thick DK10.2 ENIG Wangling F4BTMS Series Substrates

Product Overview

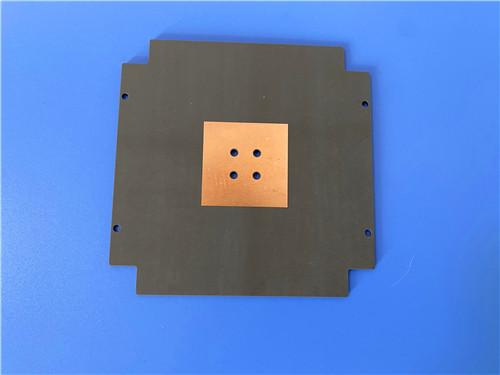

The F4BTMS1000 PCB is a high-reliability,two-layer printed circuit board designed for demanding applications in aerospace, military radar, RF/microwave systems, and satellite communications. Built with the advanced F4BTMS1000 base material—an upgraded ceramic-filled PTFE composite—this F4B High Frequency PCB delivers exceptional electrical performance, thermal stability, and mechanical durability.

With a thickness of 1.905mm (75 mil), immersion gold surface finish, and strict IPC-Class-2 quality compliance, this F4B PCB Material ensures superior signal integrity, low loss, and long-term reliability in harsh environments. Its low dielectric loss (Df = 0.0020 at 10GHz) and stable dielectric constant (Dk = 10.2 at 10GHz) make it ideal for high-frequency and phase-sensitive applications.

PCB Construction Details

The F4BTMS1000 substrate PCB boasts a meticulous construction that ensures optimal performance and reliability in a multitude of applications:

PCB Stackup

The F4BTMS1000 DK10.2 PCB features a simple yet high-performance 2-layer stackup:

 This construction ensures low signal loss, high thermal dissipation, and excellent dimensional stability—critical for high-frequency and high-power applications.

PCB Statistics

The F4BTMS1000 high frequency PCB is not just a piece of hardware; it is a culmination of precise engineering and design, as reflected in its statistics:

Introducing the F4BTMS Series

The F4BTMS series substrate represents a groundbreaking evolution in PCB materials, offering unparalleled performance and reliability. Let's delve deeper into the features and benefits that make theWanglingF4BTMS series a preferred choice for high-end applications:

Features of the F4BTMS1000 PCB

1.Dielectric Constant (Dk):

The PCB boasts a Dk of 10.2 at 10GHz, ensuring stable and efficient signal propagation.

2.Dissipation Factor:

With a low dissipation factor of .0020 at 10GHz and 0.0023 at 20GHz, the PCB minimizes signal loss and distortion.

3.CTE (Coefficient of Thermal Expansion):

The PCB exhibits a CTE of 16 ppm/°C (x-axis), 18 ppm/°C (y-axis), and 32 ppm/°C (z-axis) in the temperature range of -55°C to 288°C, ensuring thermal stability and reliability.

4.Thermal Conductivity:

With a high thermal conductivity of 0.81 W/mk, the PCB efficiently dissipates heat, enhancing performance and reliability.

5.Moisture Absorption:

The PCB features low moisture absorption of 0.03%, ensuring durability and longevity in diverse environments.

Applications of the F4BTMS1000 PCB

The versatility and performance of the F4BTMS1000 PCB make it an ideal choice for a wide range of applications, including:

• -Aerospace equipment and space technologies
• -Microwave and RF applications
• -Radar systems, including military radar
• -Feed networks for antennas
• -Phase-sensitive and phased array antennas
• -Satellite communications and more

Quality Assurance & Compliance

• IPC-Class-2 Certified: Ensures high reliability for commercial and industrial applications.
• 100% Electrical Testing: Guarantees functionality before shipment.
• Gerber RS-274-X Files Accepted: Ensures precision in manufacturing.

Conclusion

The F4BTMS1000 Wangling PCB is a high-performance, ultra-reliable circuit board designed for mission-critical applications in aerospace, defense, and RF communications. With its ceramic-enhanced PTFE substrate, low-loss characteristics, and robust thermal properties, it outperforms conventional FR-4 and other high-frequency materials.

Whether you need low-loss RF circuits, radar systems, or satellite communication modules, this PCB delivers exceptional signal integrity, thermal stability, and long-term durability.

Available now for global orders–Contact us today for pricing & lead times!
