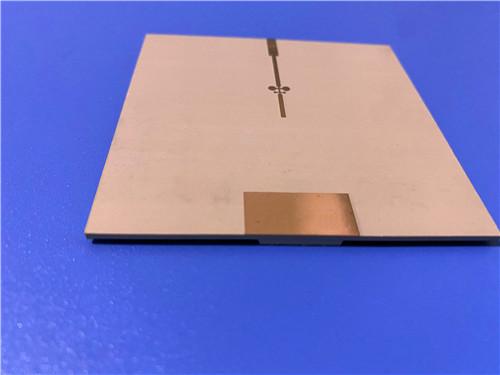

Rogers IsoClad 933 PCB 2-layer 20mil 0.508mm Substrate ENIG

Rogers IsoClad 933 PCB 2-layer 20mil 0.508mm Substrate ENIG

Introduction

The 20mil IsoClad 933 PCB is a high-performance 2-layer rigid printed circuit board designed for RF, microwave, and aerospace applications where flexibility, low signal loss, and dimensional stability are critical. Built on IsoClad 933—a nonwoven fiberglass/PTFE composite—thisIsoClad laminates PCB offers superior dielectric uniformity, bend tolerance, and thermal stability, making it ideal for conformal antennas, missile guidance systems, and radar electronics.

With an ultra-low dielectric constant (Dk) of 2.33 @ 10GHz and an exceptional dissipation factor (Df) of 0.0016, this Rogers IsoClad PCB ensures minimal signal attenuation in high-frequency circuits. Its nonwoven fiberglass reinforcement provides greater flexibility than traditional woven fiberglass PCBs, allowing it to conform to curved surfaces without delamination.

PCB Construction Details

PCB Stackup

The Rogers IsoClad 933 PCB features a simple 2-layer stackup optimized for high-frequency performance:

Layer 1: Copper (35µm)

Core: IsoClad 933 (0.787mm / 31mil)

Layer 2: Copper (35µm)

This construction ensures low insertion loss, excellent signal integrity, and mechanical flexibility—critical for conformal antennas and RF circuits.

PCB Statistics

Quality Assurance & Compliance

• IPC-Class-2 Certified: Ensures reliability for industrial and aerospace use.
• 100% Electrical Testing: Guarantees functionality before shipment.
• Gerber RS-274-X Files Accepted: Ensures precision in manufacturing.

Introduction of IsoClad 933

IsoClad 933 laminates represent a pinnacle in PCB substrate technology. They are crafted from nonwoven fiberglass/PTFE composites, specifically designed for applications where the final circuit necessitates bending or shaping—for instance, in the creation of conformal or "wrap-around" antennas. The use of longer random fibers and a proprietary manufacturing process ensures superior dimensional stability and dielectric constant uniformity, surpassing similar laminates in its category.

Features

• -Dielectric Constant at 10GHz: 2.33
• -Dissipation Factor at 10GHz: 0.0016
• -Thermal Coefficient of DK: -132 ppm/°C
• -Peel Strength: 10 lbs/inch
• -Dielectric Breakdown: >45 kV
• -CTE: X-axis at 31 ppm/°C, Y-axis at 35 ppm/°C, Z-axis at 203 ppm/°C
• -Flammability: UL-94 V0

Benefits

• -Flexibility: IsoClad 933 is less rigid than woven fiberglass boards, ensuring adaptability in various applications.
• -Isotropy: With high isotropy in X, Y, and Z directions, the board offers consistent performance across all planes.

Applications

• -Conformal Antennas
• -Stripline and Microstrip Circuits
• -Missile Guidance Systems
• -Radar and Electronic Warfare Systems

Conclusion

The IsoClad 933 high frequency PCB is a cutting-edge solution for engineers working in RF, aerospace, and conformal electronics. With its nonwoven PTFE core, ultra-low loss characteristics, and flexible structure, it stands as a superior alternative to rigid PCBs.

For conformal antennas, radar systems, and high-frequency circuits, the IsoClad 933 PCB delivers unmatched performance, flexibility, and reliability.

Contact us today to discuss how this advanced PCB can enhance your next RF or aerospace project!
