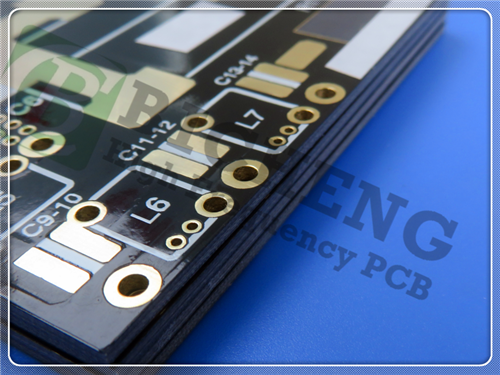

F4BTMS233 PCB 40mil 1.016mm Thick 2-layer F4BTMS Series High Frequency Circuit Board

F4BTMS233 PCB 40mil 1.016mm Thick 2-layerF4BTMS Series High Frequency Circuit Board

The F4BTMS233 PCB is a cutting-edge printed circuit board designed to meet the rigorous demands of aerospace, microwave, and RF applications. Built using the advanced F4BTMS series material, this PCB represents a significant technological breakthrough in material formulation and manufacturing processes. With its unique blend of ceramics, ultra-thin glass fiber cloth, and polytetrafluoroethylene (PTFE) resin, the F4BTMS233 PCB delivers exceptional electrical, thermal, and mechanical performance. Whether you're designing radar systems, satellite communication equipment, or phase-sensitive antennas, the F4BTMS233 40mil PCB offers unmatched reliability and precision.

Introduction to F4BTMS Series

The F4BTMS series is an upgraded version of the F4BTM series, engineered to address the challenges of high-frequency and high-reliability applications. By incorporating a significant amount of special nano-ceramics and ultra-thin, ultra-fine glass fiber cloth, the F4BTMS series achieves superior material performance with a broader range of dielectric constants. This innovative formulation minimizes the negative effects of glass fiber on electromagnetic wave propagation, resulting in reduced dielectric loss, enhanced dimensional stability, and improved thermal conductivity.

The F4BTMS233 high frequency circuit board is particularly well-suited for aerospace applications, where reliability and performance are critical. It is designed to replace similar foreign products, offering a cost-effective yet high-performance solution for demanding environments.

Key Features

The F4BTMS233 substrate PCB is engineered to deliver outstanding performance in high-frequency and high-reliability applications. Below are its key features:

1. Low Dielectric Constant (Dk):

Dk of 2.33 at 10GHz ensures consistent signal propagation and minimal signal loss, making it ideal for high-frequency applications.

2. Low Dissipation Factor (Df):

Df of 0.0010 at 10GHz and 0.0011 at 20GHz ensures minimal signal attenuation, even at higher frequencies.

3. Excellent Thermal Stability:

Low thermal coefficient of Dk at -122 ppm/°C ensures stable performance across a wide temperature range (-55°C to 150°C).

4. Low Coefficient of Thermal Expansion (CTE):

CTE values of 35 ppm/°C (x-axis), 40 ppm/°C (y-axis), and 220 ppm/°C (z-axis) ensure excellent dimensional stability under thermal stress.

5. Low Moisture Absorption:

Moisture absorption of just 0.02% ensures reliable performance in humid or harsh environments.

6. High Thermal Conductivity:

Enhanced thermal conductivity improves heat dissipation, making it suitable for high-power applications.

7. UL-94 V0 Certification:

Meets the highest flame-retardant standards, ensuring safety and reliability in aerospace and military applications.

8. RTF Low Roughness Copper Foil:

Standard RTF copper foil reduces conductor loss and provides excellent peel strength, ensuring long-term reliability.

Benefits

The F4BTMS233 40mil Rogers laminates PCB offers numerous advantages for high-frequency and high-reliability applications:

1.Superior Signal Integrity:

The low dielectric constant and dissipation factor ensure minimal signal loss and distortion, making it ideal for RF and microwave circuits.

2.Enhanced Dimensional Stability:

The unique material formulation and low CTE values ensure the PCB maintains its shape and performance under varying temperatures and mechanical stress.

3. Wide Usable Frequency Range:

The material's properties enable consistent performance across a broad frequency range, making it suitable for diverse applications.

4. High Reliability:

With low moisture absorption, excellent thermal stability, and UL-94 V0 certification, the PCB performs reliably in harsh environments.

5. Cost-Effective Alternative:

Designed to replace similar foreign products, the F4BTMS233 PCB offers a high-performance, cost-effective solution for aerospace and military applications.

6. Versatility:

Suitable for a wide range of applications, including radar systems, satellite communications, and phased array antennas.

PCB Stackup and Construction Details

The F4BTMS233 PCB is a 2-layer rigid PCB with the following stackup:

Copper Layer 1: 35μm

F4BTMS233 Core: 1.016 mm (40 mil)

Copper Layer 2: 35μm

Additional Construction Details:

PCB Statistics

The F4BTMS233F4B substrate PCB is designed with precision and efficiency in mind. Key statistics include:

Artwork and Quality Standards

Artwork Format: Gerber RS-274-X

Quality Standard: IPC-Class-2, ensuring high reliability and performance for commercial and industrial applications.

Availability

The F4BTMS233 PCB is available worldwide, making it accessible to engineers and designers across the globe.

Typical Applications

The F4BTMS233 40mil material PCB is well-suited for a variety of high-frequency and high-reliability applications, including:

- Aerospace equipment, space and cabin equipment

- Microwave, RF

- Radar, military radar

- Feed networks

- Phase-sensitive antennas, phased array antennas

- Satellite communications, and more.

Why Choose the F4BTMS233 PCB?

The F4BTMS233 substrate PCB is a high-performance solution designed to meet the rigorous demands of modern aerospace and RF applications. Its unique combination of low dielectric constant, low dissipation factor, and excellent thermal stability ensures reliable performance in even the most challenging environments. Whether you're designing radar systems, satellite communication equipment, or phased array antennas, the F4BTMS233 PCB delivers the performance, reliability, and precision you need to succeed.

Conclusion

The F4BTMS233 high frequency PCB is a testament to advanced PCB technology, offering unmatched performance for high-frequency and high-reliability applications. With its superior material properties, precise construction, and adherence to high-quality standards, this PCB is an excellent choice for engineers and designers seeking to optimize their high-frequency circuits. Available worldwide and backed by cutting-edge material technology, the F4BTMS233 PCB is the ultimate solution for your high-performance PCB needs.
