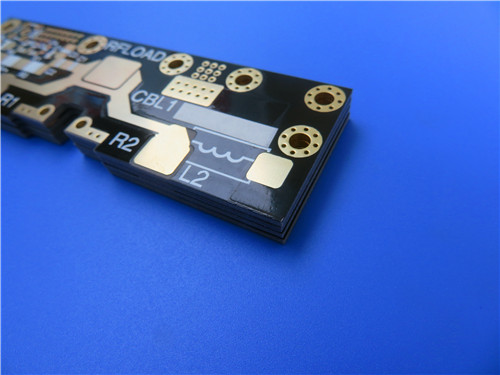

F4BTMS430 Wangling PCB 2-layer 10mil Immersion Gold Black Solder Mask White Silkscreen

F4BTMS430 Wangling PCB 2-layer 10mil Immersion Gold Black Solder Mask White Silkscreen

In the realm of high-frequency electronics, where signal integrity, thermal management, and unwavering reliability are non-negotiable, the F4BTMS430 2-Layer PCB stands as a purpose-engineered solution. This 10mil Wangling board transcends the capabilities of standard FR-4 constructions, leveraging an advanced ceramic-filled PTFE composite to deliver exceptional electrical and mechanical performance for mission-critical aerospace, defense, and telecommunications systems. Its compact, robust design is meticulously fabricated to meet IPC-Class-2 standards, ensuring global availability for prototyping and production.

Engineered for stability and precision, this F4B DK4.3 board serves as an ideal substrate for sensitive RF components, feed networks, and phase-sensitive antenna elements, where minimal signal loss and consistent dielectric behavior across temperature variations are paramount.

PCB Construction Details

The following table outlines the key physical and manufacturing specifications of the F4BTMS430 PCB, defining its build quality and tolerances.

PCB Stackup

The F4BTMS430 substrate board features a symmetrical and simple 2-layer stackup, centered on a high-performance core material that ensures electrical predictability.

PCB Statistics

This table provides a quantitative overview of the board's layout complexity and component placement.

Advanced Material & Technology

The cornerstone of this PCB's performance is the F4BTMS430 laminate, a technologically advanced evolution of standard PTFE materials. It is formulated with a significant infusion of special nano-ceramics and reinforced with ultra-fine glass fiber cloth within a polytetrafluoroethylene (PTFE) resin matrix. This proprietary composition delivers a breakthrough in key areas:

1) Superior Electrical Performance: It offers a stable dielectric constant (Dk) of 4.3 at 10GHz and an extremely low dissipation factor (Df) of 0.0019 at 10GHz, minimizing signal loss for high-frequency applications up to and beyond 20GHz.

2) Enhanced Stability & Reliability: The material exhibits excellent dimensional stability with low X/Y-axis CTE (13/12 ppm/°C) and a remarkably low thermal coefficient of Dk (-60 ppm/°C), ensuring consistent electrical performance across a wide temperature range (-55°C to +150°C). Its high thermal conductivity (0.63 W/mK) aids in heat dissipation.

3) Robust Construction: Features include very low moisture absorption (0.08%), a UL-94 V0 flammability rating, and standard RTF (Reverse Treat) low-profile copper foil for reduced conductor loss and excellent peel strength.

Ideal for High-Reliability Applications

This combination of precise fabrication and cutting-edge material science makes the 10mil F4BTMS430 PCB exceptionally suited for demanding fields:

• Aerospace & Avionics Equipment
• Radar Systems and Military Radar
• Satellite Communication (Satcom) Hardware
• RF/Microwave Circuits and Feed Networks
• Phase-Sensitive and Phased Array Antennas

Quality & Documentation

The F4BTMS430 high frequency board is manufactured to IPC-Class-2 quality standards, suitable for dedicated service electronic products. Artwork is supplied in the universally accepted Gerber RS-274-X format, ensuring seamless manufacturing integration.

In summary, the F4BTMS430 2-layer ENIG PCB is a high-performance interconnect solution that transforms the exceptional electrical, thermal, and mechanical properties of the next-generation F4BTMS material into a reliable, production-ready hardware platform. It is designed for engineers who cannot compromise on signal integrity, miniaturization, or reliability in the most demanding operational environments.
