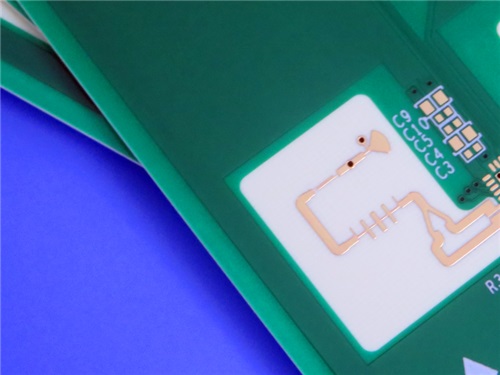

Hybrid PCB 10mil RO4350B and S1000-2M Material 4-layer 1.6mm Thick with Edge Plating Via Filled and Capped

Hybrid PCB 10mil RO4350B and S1000-2M Material 4-layer 1.6mm Thick with Edge Plating Via Filled and Capped

Introduction

In the ever-evolving world of electronics, the demand for high-performance, reliable, and cost-effective printed circuit boards (PCBs) is on the rise. Our newly shipped Hybrid PCB, featuring a 10mil RO4350B and S1000-2M 4 layer stackup, is designed to meet the rigorous demands of modern RF and microwave applications. This hybrid circuit materials PCB combines the exceptional electrical properties of Rogers 4350B with the robust mechanical and thermal characteristics of S1000-2M, making it an ideal choice for a wide range of high-frequency applications.

Key Features and Benefits

1. Rogers RO4350B Material:

Rogers RO4350B is a proprietary woven glass-reinforced hydrocarbon/ceramic material that offers electrical performance close to PTFE/woven glass while maintaining the manufacturability of epoxy/glass. This material is UL 94 V-0 rated, making it suitable for active devices and high-power RF designs.

• Dielectric Constant (Dk): 3.48 +/- 0.05 at 10GHz/23°C
• Dissipation Factor (Df): 0.0037 at 10GHz/23°C
• Thermal Conductivity: 0.69 W/m/°K
• Coefficient of Thermal Expansion (CTE): X-axis: 10 ppm/°C, Y-axis: 12 ppm/°C, Z-axis: 32 ppm/°C
• Glass Transition Temperature (Tg): >280°C (536°F)
• Low Water Absorption: 0.06%

2. S1000-2M Material:

Shengyi S1000-2M is known for its excellent mechanical processability and thermal resistance, making it a reliable choice for high-performance PCBs.

• Lower Z-Axis CTE: Improved through-hole reliability
• Excellent Mechanical Processability and Thermal Resistance
• High Heat Resistance: Suitable for lead-free compatible processes
• Tg180℃(DSC), UV Blocking/AOI compatible: Ensures high-quality inspection and assembly
• Excellent Anti-CAF Performance: Prevents conductive anodic filament formation
• Low Water Absorption: Enhances long-term reliability

PCB Construction and Specifications

1.PCB Stackup:

2. PCB Construction Details:

3.PCB Statistics:

Applications

The Hybrid 10mil RO4350B and S1000-2M 4 Layer Hybrid PCB is versatile and can be used in a variety of high-frequency applications, including:

-Commercial Airline Broadband Antennas

-Microstrip and Stripline Circuits

-Millimeter Wave Applications

-Radar Systems

-Guidance Systems

-Point-to-Point Digital Radio Antennas

Why Choose Our Hybrid PCB?

1.High Performance: The combination of RO4350B and S1000-2M Hybrid PCB Material ensures excellent electrical performance, thermal stability, and mechanical reliability.

2.Cost-Effective: RO4350BPCB offers the performance of PTFE-based materials at a fraction of the cost, without the need for special through-hole treatments.

3.Reliability: With a high Tg value, low CTE, and excellent dimensional stability, our PCB is built to withstand severe thermal shock and harsh environments.

4.Quality Assurance: Each PCB undergoes 100% electrical testing before shipment, ensuring that you receive a product that meets the highest standards.

Conclusion

Our Hybrid PCB Board 10mil RO4350B and S1000-2M 4-layer is a state-of-the-art solution for high-frequency applications that demand superior performance, reliability, and cost-effectiveness. Whether you're designing commercial airline broadband antennas, radar systems, or millimeter wave applications,this hybrid circuit board is engineered to meet your needs. With its advanced materials, precise construction, and rigorous quality assurance, you can trust our Hybrid PCB to deliver exceptional results.

For more information or to place an order, please contact our sales team. We are committed to providing you with the highest quality products and services to help you achieve your design goals.
