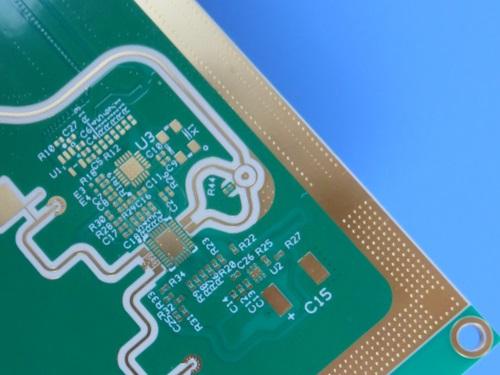

Hybrid PCB 20mil RO4003C and S1000-2M Material 6-layer 2.0mm Thick Multilayer Board

Hybrid PCB 20mil RO4003C and S1000-2M Material 6-layer 2.0mm Thick Multilayer Board

Overview

Welcome to the world of high-performance Hybrid PCB Board PCBs with our newly shipped Hybrid PCB 20mil RO4003C S1000-2M. This advanced circuit board offers exceptional characteristics, allowing you to achieve superior results in your electronic projects. With a combination of RO4003C 20mil substrate and S1000-2M materials, this 6-layer hybrid PCB delivers outstanding performance, reliability, and cost-effectiveness.

Specifications

PCB Construction & Materials

PCB Stackup (6-Layer Rigid Structure)

PCB Statistics

Key Features of RO4003C Material:

• Dielectric Constant (DK) of 3.38 +/- 0.05 at 10GHz, ensuring optimal signal integrity.
• Low Dissipation Factor of 0.0027 at 10GHz and 0.0021 at 2.5GHz, minimizing signal loss.
• Thermal Coefficient of dielectric constant of +40 ppm/°C, providing stability across temperature variations.
• Thermal Conductivity of 0.71 W/m/°K, facilitating effective heat dissipation.
• Low moisture absorption of 0.06%, enabling reliable performance in humid environments.
• Ideal for multi-layer board (MLB) constructions, opening up possibilities for complex circuitry.
• Processes like FR-4 at a lower fabrication cost, offering cost-effectiveness without compromising quality.
• Designed for performance-sensitive, high-volume applications, meeting the demands of cutting-edge designs.

Key Features of S1000-2M Material:

• Lower Z-Axis CTE, ensuring improved through-hole reliability and signal integrity.
• Excellent Mechanical Processability and Thermal Resistance, supporting efficient manufacturing processes and withstanding extreme operating conditions.
• Lead-free Compatible, meeting industry environmental regulations without sacrificing performance.
• Tg180℃(DSC), UV Blocking/AOI compatible, allowing for enhanced processing and inspection capabilities.
• High heat resistance, making it suitable for applications requiring superior thermal performance.
• Excellent Anti-CAF (Conductive Anodic Filament) performance, ensuring long-term reliability.
• Low water absorption, maintaining stability in high humidity environments.

Why Choose This Hybrid PCB?

1. Superior Signal Integrity for RF & Microwave Applications

The Rogers 4003C material ensures minimal signal loss at high frequencies, making it ideal for:

• 5G & mmWave circuits
• Radar & satellite communications
• Automotive radar systems (77GHz)
• Military & aerospace guidance systems

2. Enhanced Thermal & Mechanical Performance

The S1000-2M core provides:

• Improved plated through-hole (PTH) reliability
• High thermal resistance for lead-free soldering
• Reduced risk of delamination under thermal stress

3. Cost-Effective Manufacturing (Processes Like FR-4)

Unlike PTFE-based PCBs, Rogers RO4003C can be fabricated using standard FR-4 processes, reducing production costs while maintaining high-frequency performance.

• Manufacturing & Compliance
• Artwork Format: Gerber RS-274-X (industry-standard for fabrication)
• Quality Standard: IPC-Class-2 (high-reliability manufacturing)
• Availability: Worldwide shipping (quick lead times)

Typical Applications

The Hybrid PCB 20mil RO4003C and Shengyi S1000-2M find their application in a diverse range of industries and projects. Some typical applications include:

✅RF & Microwave Circuits (Antennas, Filters, Couplers)

✅Aerospace & Defense Systems (Radar, Guidance, Avionics)

✅Telecommunication Infrastructure (5G, mmWave, Base Stations)

✅High-Speed Digital Boards (Server Backplanes, Data Transmission)

✅Automotive Radar & ADAS Systems

Conclusion

With worldwide availability, this Hybrid circuit board caters to the needs of various industries, providing high-performance solutions with cost-effective manufacturing processes. Whether you are designing advanced communication systems, radar applications, or commercial airline antennas, our Hybrid 20mil RO4003C PCB S1000-2M is the perfect choice for achieving exceptional results. Trust in its superior characteristics and take your projects to new heights!
