RO3006 PCB 25mil is an advanced circuit solution tailored for high-frequency applications.
Item NO.:
BIC-330-v409.0Order(MOQ):
1-10Payment:
T/TProduct Origin:
ChinaShipping Port:
ShenzhenLead Time:
7-10 days

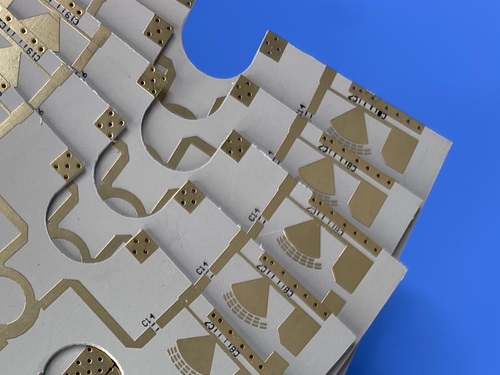

RO3006 2-layer Rogers 3006 PCB 25mil 0.635mm Substrate with ENIG
Product Overview
The RO3006 2-layer PCB represents a premium solution for high-frequency applications requiring exceptional electrical stability and thermal performance. Manufactured using Rogers Corporation's advanced RO3006 ceramic-filled PTFE composite material, this Rogers 3006 circuit board delivers superior performance in demanding RF and microwave environments. With its carefully engineered construction and precise manufacturing tolerances, this RO3006 PCB is ideally suited for next-generation wireless communications, automotive radar systems, and aerospace applications where signal integrity and reliability are paramount.
PCB Construction Details
|
Parameter |
Value |
|
Board Dimensions |
76mm x 52mm =1PCS |
|
Finished Thickness |
0.71mm (including Cu & solder mask) |
|
Min Trace/Space |
5/4 mils |
|
Min Hole Size (Drilled) |
0.35mm |
|
Via Plating Thickness |
20 µm |
|
Surface Finish |
ENIG (Electroless Nickel Immersion Gold) |
|
Top Silkscreen |
White |
|
Top Solder Mask |
Green |
|
Bottom Solder Mask |
No |
|
Electrical Testing |
100% tested prior to shipment |
PCB Stackup
|
Layer |
Material |
Thickness |
|
Top Copper |
1 oz Cu (35 μm) |
1.4 mils |
|
Dielectric Core |
Rogers RO3006 |
25 mil (0.635mm) |
|
Bottom Copper |
1 oz Cu (35 μm) |
1.4 mils |
PCB Statistic
|
PCB Statistics |
Count |
|
Components |
12 |
|
Total Pads |
32 |
|
Thru Hole Pads |
14 |
|
Top SMT Pads |
18 |
|
Bottom SMT Pads |
0 |
|
Vias |
21 |
|
Nets |
2 |
Features:
The key features of the RO3006 PCB 25mil make it an exceptional choice for high-frequency applications:
1.Rogers RO3006 Ceramic-Filled PTFE Composites:
2.High Thermal Performance:
3.Excellent Dimensional Stability:
Benefits:
The Rogers RO3006 PCB 25mil offers several advantages for high-frequency circuit designs:
1.Design Flexibility:
2.Enhanced Reliability:
3.Cost-Effective Manufacturing:
The volume manufacturing process ensures economical laminate pricing, making the RO3006 PCB 25mil a cost-effective solution for high-frequency circuitry.
Typical Applications
The versatility and performance of the RO3006 25 mil substrate PCB make it well-suited for a wide range of high-frequency applications, including:
Accepted Standard and Availability
The RO3006 high frequency PCB conforms to the IPC-Class-2 standard, ensuring high quality and reliability. Additionally, this PCB is available for purchase worldwide, allowing customers from different regions to benefit from its advanced features and performance.
Conclusion
In conclusion, the RO3006 PCB 25mil is an advanced circuit solution tailored for high-frequency applications. With its exceptional electrical properties, mechanical stability, and cost-effective manufacturing, thisRogersPCBmaterialenables the development of reliable and high-performance electronic systems across various industries.
