Panasonic Megtron6 M6 High Speed Low Loss 6-Layer PCB 1.4mm Thick
Introduction
In today’s fast-evolving electronics industry, the demand for high-speed, low-loss printed circuit boards (PCBs) is surging, driven by applications in 5G, automotive radar, data centers, and advanced computing. Our M6 High-Speed Low-Loss 6-Layer PCB is engineered to meet these stringent requirements, leveragingPanasonic Megtron6 (M6)R-5775G material for superior signal integrity, thermal stability, and reliability.

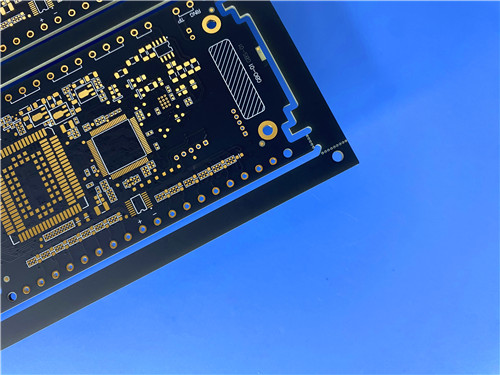

This Megtron6 PCB is designed for high-frequency, high-speed digital, and RF applications, ensuring minimal signal loss and consistent performance even in demanding environments. With a 1.4mm thickness, 1oz/0.5oz copper distribution, and ENEPIG surface finish, it delivers exceptional electrical performance while maintaining robust mechanical durability.
PCB Construction
This 6-layer stack-up PCB uses Panasonic Megtron6 (M6) R5775G (HVLP) laminate for high-frequency applications, featuring ENEPIG surface finish and precise manufacturing tolerances.
|
Parameter
|
Specification
|
|
Base Material
|
Megtron6 (M6) – R5775G (HVLP)
|
|
Layer Count
|
6-layer rigid
|
|
Board Dimensions
|
81.9 mm × 53.7 mm (±0.15mm)
|
|
Minimum Trace/Space
|
4/5 mils
|
|
Minimum Hole Size
|
0.3mm
|
|
Via Type
|
Through-hole only (no blind vias)
|
|
Board Thickness
|
1.4mm
|
|
Copper Weight (Outer)
|
1oz (35µm)
|
|
Copper Weight (Inner)
|
0.5oz (17µm)
|
|
Via Plating Thickness
|
25µm
|
|
Via Filling
|
0.3mm vias resin-filled & capped
|
|
Surface Finish
|
ENEPIG
|
|
Solder Mask (Top/Bottom)
|
Matte Black
|
|
Silkscreen (Top/Bottom)
|
White
|
|
Electrical Test
|
100% tested (IPC-Class-2)
|
PCB Stackup
Optimized 6-layer design ensures signal integrity and power distribution.
|
Layer
|
Material
|
Thickness
|
|
Top Layer (L1)
|
Copper (35µm)
|
-
|
|
Prepreg
|
R-5670(G) 1080
|
85.1µm
|
|
Inner Layer 1 (L2)
|
Copper (17µm)
|
-
|
|
Core
|
M6 R5775G (HVLP)
|
500µm
|
|
Inner Layer 2 (L3)
|
Copper (17µm)
|
-
|
|
Prepreg
|
R-5670(G) 3313
|
99.4µm
|
|
Inner Layer 3 (L4)
|
Copper (17µm)
|
-
|
|
Core
|
M6 R5775G (HVLP)
|
500µm
|
|
Inner Layer 4 (L5)
|
Copper (17µm)
|
-
|
|
Prepreg
|
R-5670(G) 1080
|
85.1µm
|
|
Bottom Layer (L6)
|
Copper (35µm)
|
-
|
PCB Statistics
Designed for complex circuit requirements.
|
Component
|
Quantity
|
|
Total Components
|
108
|
|
Pads
|
247
|
|
Through-Hole Pads
|
125
|
|
SMT Pads (Top)
|
98
|
|
SMT Pads (Bottom)
|
24
|
|
Vias
|
412
|
|
Nets
|
8
|
Megtron6 (M6) R-5775 introduction
At the heart of our M6 High Speed Low Loss PCB lies the revolutionary Megtron6 R-5775 material, renowned for its superior performance in high-frequency applications. Boasting a low dielectric loss, stable dielectric constant, and exceptional thermal reliability, the M6 material PCB is tailor-made to meet the stringent requirements of 5G communication, millimeter-wave radar, and cutting-edge computing technologies.
Megtron6 Material Properties
Critical electrical and thermal characteristics of the base laminate.
|
Property
|
Value
|
|
Dk @ 1GHz/23°C
|
3.4
|
|
Dk @ 13GHz
|
3.34
|
|
Df @ 1GHz/23°C
|
0.002
|
|
Df @ 13GHz
|
0.0037
|
|
CTE (X/Y)
|
16 ppm/°C
|
|
CTE (Z)
|
45 ppm/°C
|
|
Tg (DSC)
|
>185°C
|
|
Tg (DMA)
|
210°C
|
|
Td (TGA)
|
410°C
|
|
Flammability Rating
|
UL 94V-0
|
|
RoHS Compliance
|
Yes
|
Applications
6-Layer Megtron 6 PCB finds applications across various industries, including:
-
- 5G Communication Base Stations: Millimeter-wave antennas, radio - frequency front - ends of AAU (Active Antenna Unit).
-
- Automotive Electronics: 77GHz millimeter-wave radar, ADAS (Advanced Driver - Assistance Systems).
-
- Data Centers: High-speed server motherboards, 400G/800G optical module PCBs.
-
- Aerospace: High-frequency circuit boards for satellite communication and radar systems.
-
- Consumer Electronics: High-frequency Wi-Fi 6E/7 routers, AR/VR devices.
Ordering Information
-
Artwork Format: Gerber RS-274-X
-
Quality Standard: IPC-Class-2
-
Lead Time: Standard production lead times apply (contact for details).
-
Customization: Available upon request (different thicknesses, materials, finishes).
Conclusion
Our M6 High-Speed Low-Loss 6-Layer PCB is engineered for high-frequency, high-speed, and high-reliability applications, making it an ideal choice for 5G, automotive radar, data centers, and aerospace systems. With Megtron6 material, ENEPIG finish, and resin-filled vias, it delivers exceptional signal integrity, thermal performance, and long-term reliability.
Contact us today to discuss how this PCB can enhance your next high-performance electronic design!
