Home PTFE PCB Board PTFE High Frequency PCB F4B ENIG Black Solder Mask

PTFE High Frequency PCB F4B ENIG Black Solder Mask

PTFE commonly known as "plastic king ", is a polymer compound made of tetrafluoroethylene by polymerization. It has excellent chemical stability, corrosion resistance, sealing, high lubrication and non-viscosity, electrical insulation and good aging resistance.

  • Item NO.:

    BIC-108-v21.0
  • Order(MOQ):

    1-10
  • Payment:

    T/T
  • Price Range:1 - 50/$2.9
  • Price Range:1 - 50/$99
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-10 days
  • Product Detail

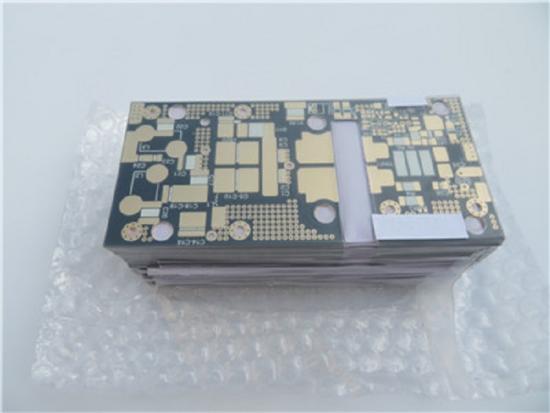

PTFE High Frequency PCB on DK2.65 F4B 0.8mm 1oz Copper With Immersion Gold and Black Solder Mask


Used as engineering plastic, it can be made into PTFE tube, rod, belt, plate, film and so on. Generally it’s used in high performance requirements of corrosion-resistant pipes, containers, pumps, valves as well as radar, high-frequency communication equipment, radio equipment.


F4B PCB BOARD


Excellent performance:


1)high temperature resistance: long-term use temperature 200~260 degrees Celsius.

2)low temperature resistance: still soft at -100 degrees Celsius;

3)corrosion resistance: resistant aqua regia and all organic solvents;

4)climate resistance: best aging life in plastics;

5)high lubrication: with the smallest friction coefficient in plastics (0.04);

6)Non-viscous: with minimal surface tension in solid materials without adhering to any substance;

7)non-toxic: with physiological inertness;

8)excellent electrical properties, ideal for C class of insulating materials, a thick layer of stack of newspaper can block 1500 V of high voltage;

9)smoother than ice.


F4BM-1/2 High Frequency PCB


F4BM-1/2 High Frequency PCB

F4BM-1/2 is laminated by laying up of varnished glass cloth with Teflon resin,according to the scientific formulation and strict technology process. This product takes some advantages over F4B series in the electrical performance(wider range of dielectric constant、lower dielectric loss angle tangent、increased resistance、and more stability of performance)


At RF and Microwave frequencies, the dielectric constant of PTFE materials is as low as 3.5 or below, which keeps strong signal during transmission across PCB, making them ideal for overcoming the high speed limitation of FR-4.



PCB Capability (PTFE):


PCB Material: Fibre glass coated PTFE
Code: F4BM-1/2 (family series)
Dielectric constant: 2.2, 2.55, 2.65,
3.0 and 3.5
Layer count: 1 Layer, 2 Layers and multi-layer
Copper weight: 0.5oz (17 µm), 1oz (35µm), 2oz (70µm), 3oz (105µm)
PCB thickness: 0.25mm, 0.5mm, 0.8mm, 1.0mm, 1.5mm, 2.0mm,3.0mm, 4.0mm, 5.0mm, 6.0mm, 8.0mm, 10.0mm, 12.0mm
PCB size: ≤400mm X 500mm
Solder mask: Green, Black, Blue, Yellow, Red etc.
Surface finish: Bare copper, HASL, ENIG, Silver, OSP,etc.


Data Sheet of F4B (PTFE):


Name Test condition Unit Value
Density Normal state g/ cm3 2.1~2.35
Moisture Absorption Dip in the distilled water of 20±2℃ for 24 hours % ≤0.02
Operating Temperature High-low temperature chamber -50℃~+260℃
Thermal Conductivity W/m/k 0.8
CTE (typical) 0~100℃ (εr :2.1~2.3) ppm/℃ 25(x)
34(y)
252(z)
CTE (typical) 0~100℃ (εr :2.3~2.9) ppm/℃ 14(x)
21(y)
173(z)
CTE (typical) 0~100℃ (εr :2.9~3.5) ppm/℃ 12(x)
15(y)
95(z)
Shrinkage Factor 2 hours in boiling water % 0.0002
Surface Resistivity 500V DC Normal state M·Ω ≥1×104
Constant humidity and temperature ≥1×103
Volume Resistivity Normal state MΩ.cm ≥1×106
Constant humidity and temperature ≥1×105
Pin Resistance 500V DC Normal state ≥1×105
Constant humidity and temperature ≥1×103
Surface dielectric strength Normal state d=1mm(Kv/mm) ≥1.2
Constant humidity and temperature ≥1.1
Dielectric Constant 10GHZ εr 2.20,2.55,2.65,3.0,3.5 (±2%)
Dissipation Factor 10GHZ tgδ 2.2 ≤7×10-4
2.55~2.65 ≤1×10-3
3.0~3.5 ≤1.5×10-3

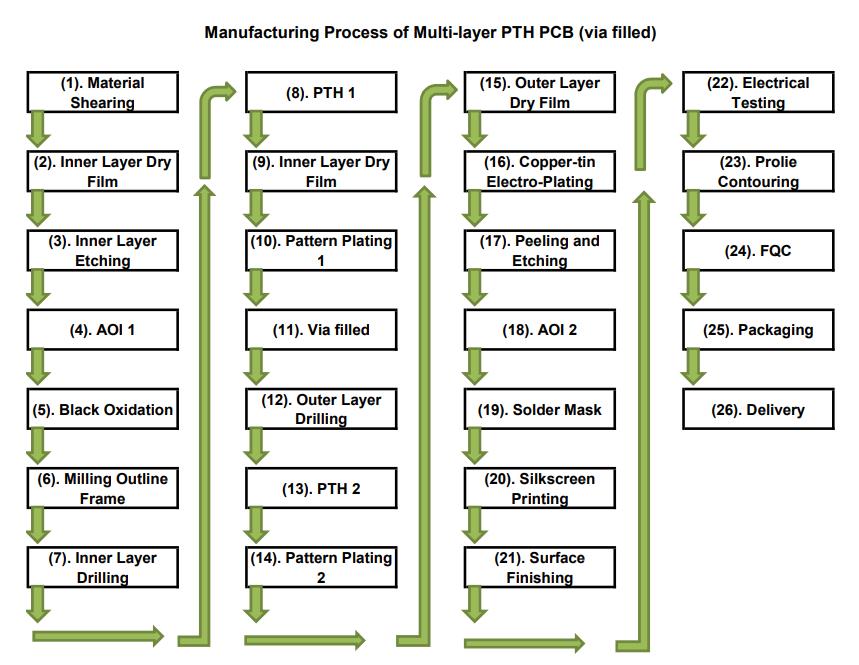

PCB MANUFACTURING PROCESS:

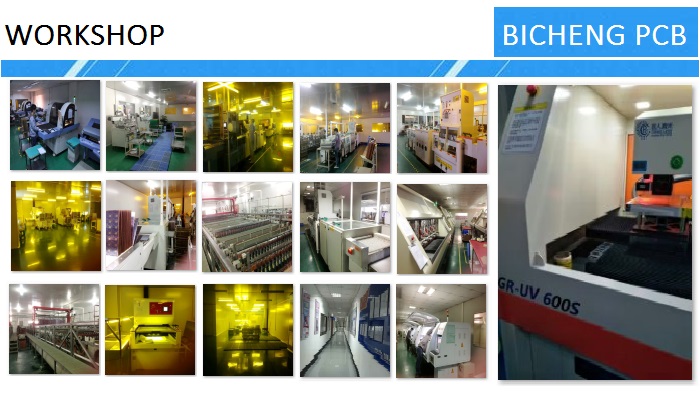

BICHENG PCB WORKSHOP:



BICHENG PCB CERTIFICATE:




BICHENG MAIN COURIERS:
