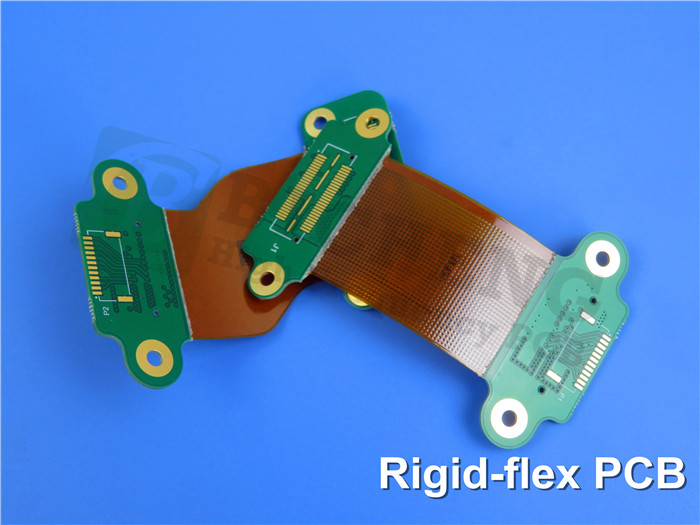

Rigid-flex PCB S1000-2M+Panasonic R-F777 Polyimide +FR4 Material

Rigid-flex PCB S1000-2M+Panasonic R-F777 Polyimide+FR4 Material 4-layer

Introduction

The Rigid-flex PCB S1000-2M, in combination with Panasonic's R-F777, offers a cutting-edge solution for advanced printed circuit board (PCB) applications. This product brings together the advantages of rigid + flexible circuitry, providing a versatile and reliable platform for various electronic devices. With its exceptional features, construction details, and wide availability, the Rigid-flex PCB S1000-2M and Panasonic R-F777 are poised to revolutionize the PCB industry.

Rigid-Flex PCB Overview

Rigid-flex PCBs have emerged as a game-changer in PCB technology. By integrating rigid and flexible sections into a single board, they offer unique design possibilities and enhanced reliability. The Rigid-flex PCB S1000-2M exemplifies this innovation, combining rigid FR-4 sections and flexible polyimide (PI) sections through an interconnected flexible material. This configuration enables the PCB to bend, twist, and conform to the requirements of various applications while ensuring stability and support for the components.

Features of S1000-2M (FR-4)

The S1000-2M, a lead-free compatible FR-4.0 laminate, boasts a range of exceptional features. With a high heat resistance and a Tg of 180°C (DSC), it excels even in demanding thermal environments. Its lower Z-axis coefficient of thermal expansion (CTE) ensures dimensional stability, reducing the risk of mechanical failures. Additionally, the S1000-2M offers excellent through-hole reliability and anti-conductive anodic filament (CAF) performance, contributing to the overall reliability of the PCB. Its low water absorption and excellent mechanical processability further enhance its suitability for a wide range of applications.

Features of R-F777 (Polyimide)

The R-F777 flexible material, made of polyimide (PI), brings its own set of impressive qualities to the Rigid-flex PCB. Its ultra-thin thickness options of 25μm, 50μm, and 75μm provide design flexibility while maintaining structural integrity. The copper types, available in ED copper and RA copper, with thickness options of 12μm, 18μm, and 35μm, ensure excellent electrical conductivity. With a high Tg value of 350°C and a soldering resistance of 280-350°C, R-F777 excels in high-temperature applications. Furthermore, its UL 94V-0 flammability rating ensures compliance with safety standards.

4-layer Rigid-flex PCB Stackup:

Construction Details:

PCB Statistics:

Applications and Availability:

The Rigid-flex PCB S1000-2M and Panasonic R-F777 find applications across a broad spectrum of industries. Their versatility makes them ideal for computer systems, communication devices, automotive electronics, and various other cutting-edge technologies. With worldwide availability, these PCBs are accessible to manufacturers and designers across the globe.

Conclusion:

In conclusion, the Rigid-flex PCB S1000-2M + Panasonic R-F777 PCB offer a comprehensive solution for electronic circuitry that requires both rigidity and flexibility. With their advanced features, robust construction, and wide application range, these PCBs empower engineers to create innovative designs while maintaining exceptional reliability andperformance. The seamless integration of rigid and flexible sections provides design flexibility and simplifies assembly processes, resulting in improved reliability and reduced points of failure. Whether it's for computer systems, communication devices, or automotive electronics, the S1000-2M and R-F777 Rigid-flex PCBs deliver exceptional performance and durability, making them an ideal choice for a wide range of applications.
