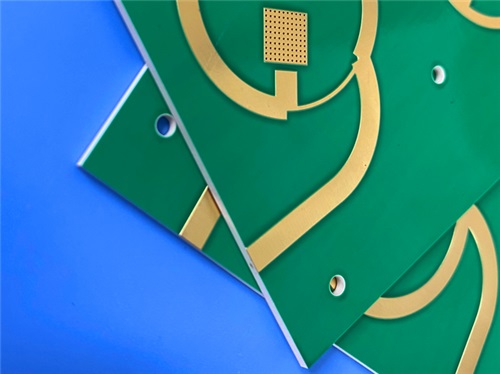

RO3206 PCB 2-layer 50mil 1.27mm Rogers 3260 Immersion Gold Custom Board

RO3206 PCB 2-layer 50mil 1.27mm Rogers 3260 Immersion Gold Custom Board

The RO3206 2-layer 50 mil PCB—a high-performance, cost-effective solution engineered for demanding high-frequency and industrial applications. Leveraging Rogers’ premium RO3206 ceramic-filled fiberglass laminate, this Rogers PCB combines exceptional electrical stability, mechanical rigidity, and dimensional precision, making it the ideal choice for industries requiring reliable signal transmission and long-term durability. Below is a comprehensive breakdown of its specifications, advantages, and applications, with key technical details organized for quick reference.

PCB Construction Details

The following table outlines the critical construction parameters of RO3206 2-layer PCB, ensuring transparency on manufacturing standards and performance capabilities.

PCB Stackup

The 2-layer rigid PCB features a simplified yet high-performance stackup, tailored to maximize signal integrity for high-frequency applications.

PCB Statistics

The following statistics reflect the Rogers 3206 PCB’s component layout, pad configuration, and interconnection design, highlighting its suitability for compact, reliable assemblies.

Introduction of RO3206

Rogers' RO3206 high frequency circuit materials are ceramic-filled laminates reinforced with woven fiberglass. These materials are engineered to offer exceptional electrical performance and mechanical stability at competitive prices. The RO3206 high frequency PCB material were designed as an extension of the RO3000 series laminates with one distinguishing characteristic - improved mechanical stability.

RO3206 Core Advantages

Built on Rogers RO3206 material—an extension of the trusted RO3000 series PCB with enhanced mechanical stability—this PCB delivers standout performance:

1) Exceptional Electrical Performance: Boasts a tightly controlled dielectric constant (6.15±0.15 at 10GHz/23°C) and ultra-low dissipation factor (0.0027 at 10GHz), ensuring minimal signal loss for high-frequency transmissions.

2) Mechanical Reliability: Woven fiberglass reinforcement improves rigidity for easier handling, while CTE matching to copper (13 ppm/°C in X/Y-axis, 34 ppm/°C in Z-axis) enables reliable surface-mount assemblies and compatibility with epoxy multilayer hybrid designs.

3) Dimensional Stability: Low moisture absorption (<0.1%) and excellent dimensional precision drive high production yields, reducing waste in volume manufacturing.

4) Cost-Effectiveness: Economically priced without compromising performance, making it ideal for large-scale applications.

Typical Applications

This 50 mil RO3206 PCB is engineered to excel in critical systems across industries, including:

-Automotive: Collision avoidance systems, GPS antennas

-Wireless Communications: Base station infrastructure, microstrip patch antennas, LMDS/wireless broadband

-Satellite & Telecom: Direct broadcast satellites, datalink on cable systems

Industrial: Remote meter readers, power backplanes

With worldwide availability and Gerber RS-274-X artwork compatibility,the RO3206 50mil substrate PCB offers a seamless integration experience for your engineering team. Whether you’re developing high-frequency communication devices or rugged industrial systems, this product balances performance, reliability, and cost—delivering the value your projects demand.

For customizations, volume pricing, or technical support, feel free to reach out—we’re dedicated to helping you optimize your PCB solutions for success.
