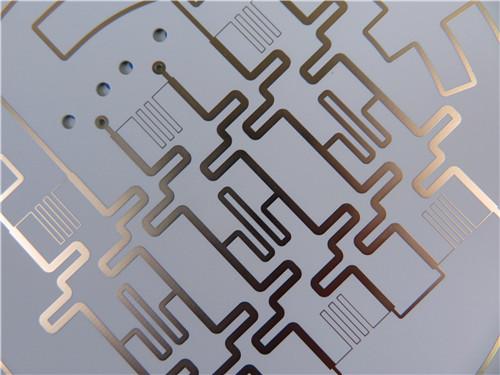

Rogers Kappa 438 PCB 2-Layer 30mil 0.762mm Laminate ENIG Bare Copper Surface

Rogers Kappa 438 PCB 2-Layer 30mil 0.762mm Laminate ENIG Bare Copper Surface

Product Overview

This 30mil Rogers PCB is a precision-crafted, two-layer rigid board designed to bridge the gap between standard digital circuitry and the rigorous demands of high-frequency communication systems. By utilizing Kappa 438 as the core substrate, this board achieves consistent electrical performance with a controlled dielectric constant, making it an ideal foundation for RF front-end modules, antenna feeding networks, and high-speed digital interfaces. Its construction is optimized for automated assembly and offers enhanced reliability over traditional FR-4 materials in thermal cycling environments.

PCB Construction Details

The fabrication of this board adheres to strict tolerances and material specifications to ensure both performance and manufacturability. The following table outlines the key physical and manufacturing parameters.

PCB Stackup

The stackup is a simple yet robust two-layer construction, where the controlled thickness of the Kappa 438 dielectric is critical for defining characteristic impedance.

PCB Statistics

A detailed breakdown of the board's assembly and netlist data is provided below, offering insight into its design complexity and component density.

Material Advantages: Rogers Kappa 438

The selection of Rogers Kappa 438 as the core material is central to this PCB's value proposition. It is a glass-reinforced hydrocarbon ceramic thermoset platform designed to offer superior high-frequency performance at a cost point that is competitive with standard epoxy solutions. Key features of this material include:

1)Tailored Dielectric Constant: With a Dk of 4.38, it aligns with FR-4 industry norms, allowing for a straightforward conversion of existing FR-4 designs that require better electrical performance.

2)Superior Tolerances: It offers tighter Dk and thickness tolerances than standard FR-4, leading to more consistent and repeatable circuit performance.

3)High Thermal Reliability: A high Tg of >280°C (TMA) and a low Z-Axis CTE of 42 ppm/°C significantly improve plated through-hole reliability, especially during lead-free soldering processes and thermal cycling.

4)Flame Retardant: Meets the UL 94 V-0 requirements, ensuring safety for a wide range of electronic devices.

Key Benefits for Your Application

This 30mil Kappa 438 PCB is not merely a component; it is a strategic solution that offers tangible benefits throughout the product lifecycle, from design to manufacturing and final deployment.

1)Manufacturing Efficiency: Its composition allows for fabrication and assembly using standard epoxy/glass (FR-4) processes, eliminating the need for specialized and costly RF board production lines.

2)Design Flexibility: The material's stability and controlled Dk enable engineers to design with confidence, knowing that impedance calculations will translate accurately to the physical board.

3)Enhanced Reliability: The combination of high Tg and a low coefficient of thermal expansion (CTE) ensures robust performance in automated assembly and long-term durability in the field, particularly in applications subject to temperature variations.

4)Seamless Integration: The ability to directly upgrade existing FR-4 designs for improved electrical performance without a complete board redesign accelerates time-to-market and reduces development costs.

Typical Applications

Given its high-frequency capabilities and cost-effective nature, this Kappa 438 high frequency PCB is ideally suited for a variety of advanced communication systems, including:

• Carrier Grade WiFi and Licensed Assisted Access (LAA) equipment
• Small Cell and Distributed Antenna Systems (DAS)
• Vehicle-to-Everything (V2X) communication modules
• Internet of Things (IoT) devices, such as Smart Home hubs and Wireless Meters

In conclusion, this 2-layer 30mil Kappa 438 PCB represents a pinnacle of value engineering. It delivers the high-frequency performance required by next-generation wireless systems while maintaining the manufacturing simplicity and cost structure of a standard board, all backed by 100% electrical testing and IPC-Class-2 quality assurance.
