Rogers RO3203 PCB 30mil 2-layer Immersion Silver High Frequency Circuit Materials

Rogers RO3203 PCB 30mil 2-layer Immersion Silver High Frequency Circuit Materials

In the dynamic realm of high-speed electronics, the RO3203 High Frequency Circuit Materials stand as a testament to innovation and performance. Engineered with precision and reinforced with woven fiberglass, these ceramic-filled laminates from Rogers Corporation offer unparalleled electrical characteristics and mechanical stability at competitive prices. Let's embark on a comprehensive journey to explore the intricacies, features, benefits, construction details, statistics, and applications of the RO3203 PCB.

1. Introduction to RO3203 High Frequency Circuit Materials PCB

The RO3203 30mil Rogers Materials represent a pinnacle of technological advancement in the domain of high-speed electronics. A part of the esteemed RO3000 Series, these Rogers materials boast enhanced mechanical stability, setting them apart from their counterparts. With a dielectric constant of 3.02 and a dissipation factor of 0.0016 at 10 GHz/23°C, the 30mil RO3203 Rogers substrates extend the operational frequency spectrum beyond 40 GHz, catering to cutting-edge applications that demand superior performance.

2. Features of RO3203PCB

Rogers RO3203 ceramic-filled PTFE composites

Dielectric constant: 3.02+/- 0.04 at 10 GHz/23°C

Dissipation factor: 0.0016 at 10 GHz/23°C

High Thermal Conductivity: 0.87 W/mK

Exceptional Thermal Stability: Td > 500°C

Coefficient of Thermal Expansion:

X-axis: 13 ppm/°C

Y-axis: 13 ppm/°C

Z-axis: 58 ppm/°C

Lead-free Process Compatible with 94V-0 flammability rating

3. Key Benefits of RO3203 PCB

Woven Glass Reinforcement: Enhances rigidity for improved handling

Uniform Electrical and Mechanical Performance: Ideal for complex multi-layer high-frequency structures

Low Dielectric Loss: Enables high-frequency applications exceeding 20 GHz

Low In-plane Expansion Coefficient: Matches copper for hybrid designs and reliable surface-mounted assemblies

Excellent Dimensional Stability: Ensures high production yields

Cost-Effective Volume Manufacturing: Economically priced for mass production

Surface Smoothness: Facilitates precise line etching tolerances

4. PCB Stackup and Construction Details

Stackup: 2-layer rigid PCB

Copper Layer 1: 35μm

RO3203 Substrate: 30mil (0.762mm)

Copper Layer 2: 35μm

5. PCB Statistics

6. Quality Assurance and Global Accessibility

Type of Artwork Supplied: Gerber RS-274-X

Accepted Standard: IPC-Class-2

Availability: Worldwide

7. Typical Applications

The versatility and performance of RO3203 High Frequency Circuit boards make them suitable for a wide range of applications, including:

Automotive collision avoidance systems

Automotive GPS antennas

Wireless telecommunications systems

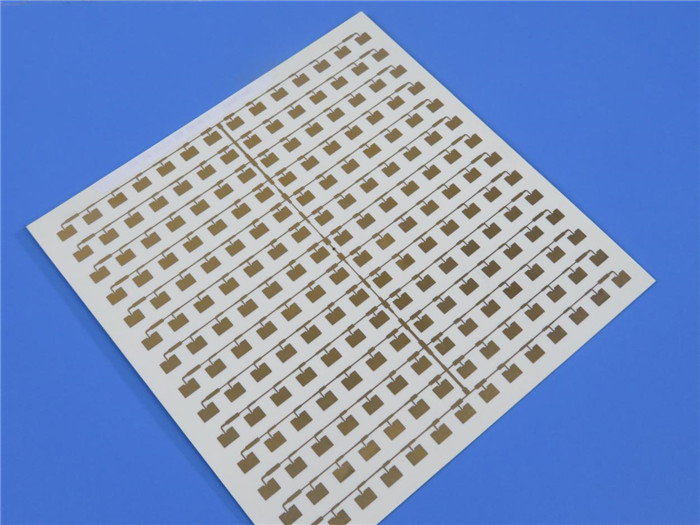

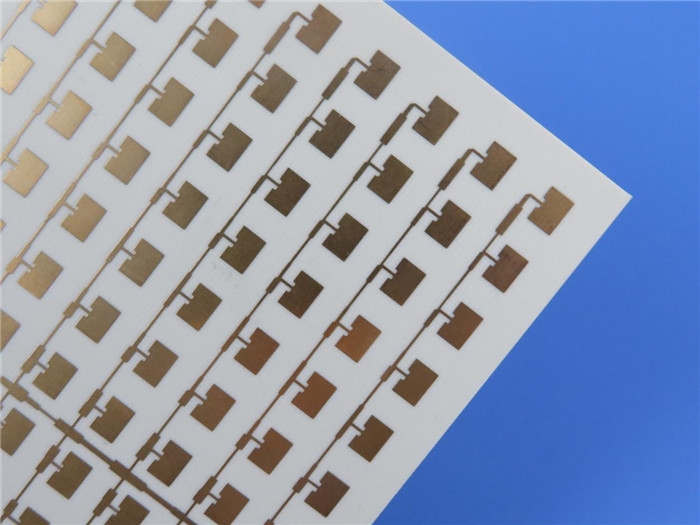

Microstrip patch antennas for wireless communications

Direct broadcast satellites

Cable system data links

Remote meter readers

Power backplanes

LMDS and wireless broadband

Base station infrastructure

In conclusion, the RO3203 Rogers PCB from Rogers Corporation redefine the boundaries of high-speed connectivity with their exceptional features, benefits, and applications. Designed to meet the demands of modern electronics, these materials empower engineers and manufacturers to push the limits of innovation and deliver cutting-edge solutions in a cost-effective and reliable manner.
