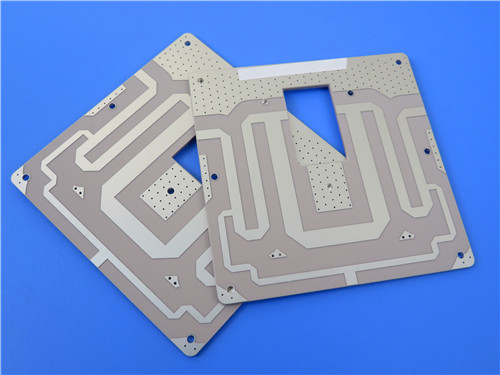

Rogers TMM6 PCB 2 layers 15mil 0.381mm Immersion Silver No Solder Mask Silkscreen

RogersTMM6 PCB 2 layers 15mil 0.381mm Immersion Silver No Solder Mask Silkscreen

For RF and microwave engineers tackling signal-critical designs, balancing material performance, fabrication feasibility, and project cost is a constant challenge. Our 2-layer PCB—built withRogers TMM6 thermoset laminate and engineered to 15mil core specifications—eliminates this tradeoff. Compliant with IPC-Class-2 standards and available globally,TMM6 15 mil PCB merges ceramic stability, PTFE-like processability, and tight manufacturing tolerances to power your high-frequency applications.

Material Breakthrough: Rogers TMM6’s Customer-Centric Design

At the heart of this PCB is Rogers TMM6, a ceramic-polymer composite crafted for plated thru-hole reliability in stripline and microstrip setups. Unlike traditional microwave materials that demand specialized production,TMM6 high frequency PCB works with standard PCB processes—cutting setup time and reducing fabrication errors. Its standout electrical properties shine at 10GHz: a stable dielectric constant (Dk) of 6.0±0.08 minimizes signal distortion, while a 0.0023 dissipation factor ensures ultra-low loss. Thermal resilience is equally impressive: 425°C decomposition temperature, 0.72W/mk conductivity, and copper-matched CTE (18 ppm/K x/y axes) prevent warping in extreme operating environments.

1. PCB Construction Details

Captures structural and fabrication specs that guarantee consistency in high-frequency performance.

2. PCB Stackup

Details the 2-layer rigid structure optimized for signal integrity in high-frequency transmission.

3. PCB Statistics

Provides key assembly data to streamline design validation and manufacturing planning.

Benefits

- Mechanical properties resist creep and cold flow

- Resistant to process chemicals, reducing damage during fabrication

- Based on a thermoset resin, allowing for reliable wire-bonding

- All common PCB processes can be used with TMM 6 materials

Typical Applications

This TMM6 Rogers PCB is expertly suited for a wide range of high-frequency applications, including:

- RF and microwave circuitry

- Power amplifiers and combiners

- Filters and coupler

- Satellite communication systems

- Global Positioning Systems Antennas

- Patch Antennas

- Dielectric polarizers and lenses

- Chip testers

Whether you’re designing for aerospace, telecommunications, or test equipment, our TMM6 2-layer PCB delivers the consistency, performance, and cost-efficiency your high-frequency projects demand. Partner with a solution that turns complex RF challenges into streamlined success.
