RT/duroid 5880 PCB 2-layer 40mil Thick Rogers 5880 Immersion Gold Custom Board

RT/duroid 5880 PCB 2-layer 40mil Thick Rogers 5880 Immersion Gold Custom Board

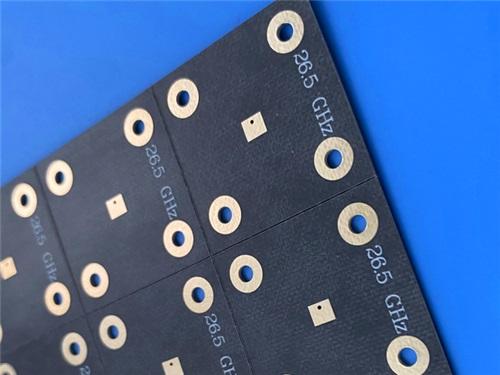

Designed for demanding high-frequency scenarios, our RT/duroid 5880 40 mil PCB leverages Rogers’premium laminate technology to deliver unmatched electrical stability and process adaptability. Crafted to IPC-Class-2 standards with global availability, it addresses the core needs of industries relying on precise signal transmission—from radar systems to millimeter wave equipment.

1. PCB Construction Details

This table outlines foundational build attributes, including RT5880 material selection, dimensional precision, and process guarantees.

2. PCB Stackup

The simplified 2-layer RT/duroid 5880 rigid structure ensures efficient signal propagation while maintaining mechanical robustness.

3. PCB Statistics

Key assembly-related metrics reflect the rt duroid 5880 board’s compatibility with standard component integration.

Material Advantages & Product Value

At the heart of this PCB is Rogers RT/duroid 5880—a PTFE composite reinforced with random glass microfibers, delivering exceptional dielectric uniformity. Its standout features include a dielectric constant of 2.2 (±0.02 at 10GHz/23°C), ultra-low dissipation factor (0.0009 at 10GHz), and minimal moisture absorption (0.02%). These translate to tangible benefits: uniform electrical performance across Ku-band and above, resistance to etching/plating solvents (hot or cold), and easy machining for custom shapes.

The isotropic material properties, paired with controlled CTE (31 ppm/°C X-axis, 48 ppm/°C Y-axis), ensure reliability in temperature-fluctuating environments. As the lowest-loss reinforced PTFE material,Rogers 5880 PCB excels in high-moisture settings—critical for aerospace and outdoor applications.

Typical Applications

This RT/duroid 5880 high frequency PCB is engineered for industries where signal integrity is non-negotiable:

• Commercial Airline Broadband Antennas
• Microstrip & Stripline Circuits
• Millimeter Wave Systems
• Radar & Guidance Equipment
• Point-to-Point Digital Radio Antennas

Backed by 100% electrical testing and adherence to global standards, it offers a turnkey solution for high-frequency projects—with worldwide availability to support your production timelines.
