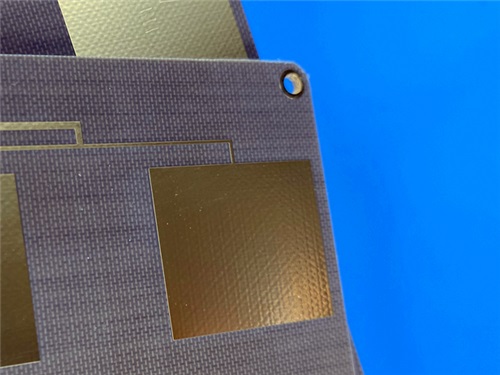

Introducing the TP600 PCB 2-Layer 5.08mm Thick ENIG—an engineering marvel designed to meet the most demanding high-frequency and reliability-critical applications. Crafted with TP600, a cutting-edge thermoplastic laminate, this high frequency PCB redefines performance standards in industries where signal integrity, thermal stability, and miniaturization are non-negotiable.

At the core of its excellence lies the TP series PCB material, a unique high-frequency thermoplastic composed of ceramics and polyphenylene oxide (PPO) resin, free from fiberglass reinforcement. This innovative composition allows for precise dielectric constant tuning (3 to 25) and delivers exceptional dielectric performance, making it ideal for high-frequency environments up to 10 GHz. Unlike traditional materials, TP600 maintains stability across extreme temperatures and harsh conditions, ensuring consistent performance in mission-critical systems.

PCB Construction Details

The TP600 PCB’s construction is engineered for precision, balancing durability with high-frequency efficiency. Key parameters are outlined below:

PCB Stackup

The 2-layer rigid stackup of the custom TP600 PCB is optimized to minimize signal loss and maintain structural integrity:

PCB Statistics

The TP600 2-layer PCB’s design balances compactness with functional density, as reflected in its key statistics:

Key Features of TP600

What truly sets this PCB apart is the TP600 material’s exceptional properties:

1) Stable Dielectric Constant: 6.0±0.12 at 10GHz, ensuring consistent signal propagation in high-frequency circuits.

2) Ultra-Low Loss: A dissipation factor of 0.0010 at 10GHz minimizes signal attenuation, critical for long-distance or high-speed data transmission.

3) Temperature Stability: Low TCDK (-50 ppm/°C from -55°C to 150°C) ensures performance remains unaffected by extreme thermal fluctuations.

4) Dimensional Stability: CTE values (x: 50 ppm/°C, y: 50 ppm/°C, z: 60 ppm/°C) prevent warping under thermal stress, enhancing reliability in harsh environments.

5) Thermal & Environmental Resilience: Thermal conductivity of 0.55 W/mk facilitates efficient heat dissipation, while moisture absorption of just 0.01% and UL 94-V0 flammability rating ensure durability in humid or high-risk settings.

Typical Applications

The TP600 high frequency PCB is purpose-built for industries requiring uncompromising performance:

- Global Satellite Navigation System

- missile-borne,

- fuze technology

- miniaturized antenna

Quality & Availability

Manufactured to IPC-Class-2 standards, the TP600 PCB undergoes rigorous 100% electrical testing to ensure zero defects. Artwork is supplied in Gerber RS-274-X format, ensuring compatibility with most design workflows. Available worldwide, this DK6.0 PCB is backed by a commitment to on-time delivery and technical support, making it the preferred choice for engineers and manufacturers in high-performance sectors.

In summary, the TP600 PCB 2-Layer 5.08mm Thick ENIG is more than a circuit board—it’s a testament to advanced material science and precision engineering, designed to elevate performance in the most challenging applications.
