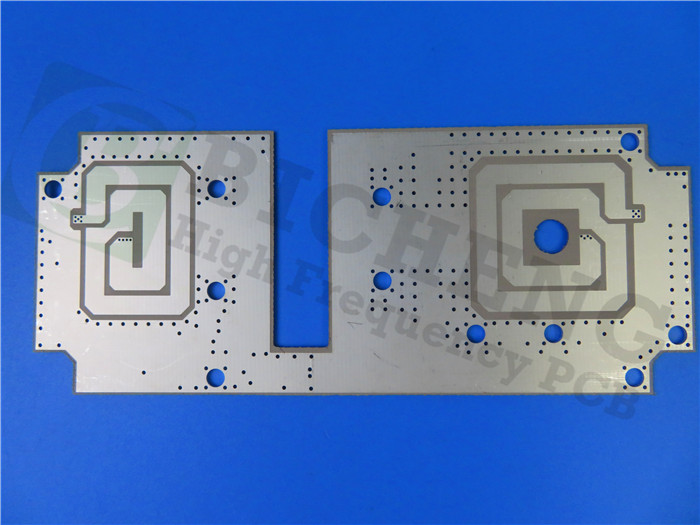

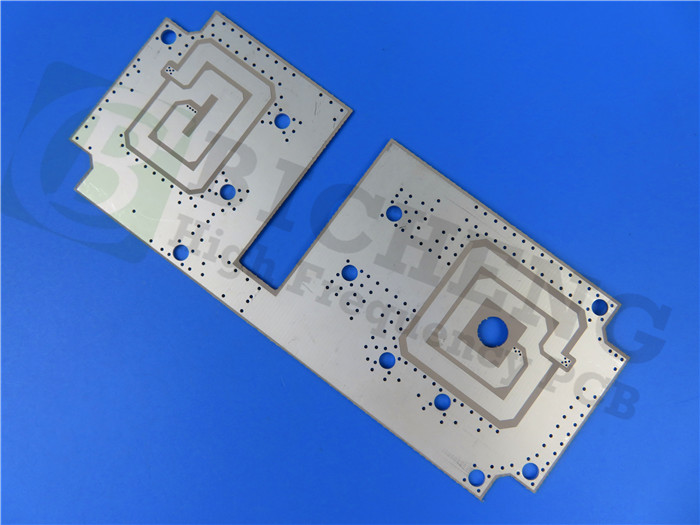

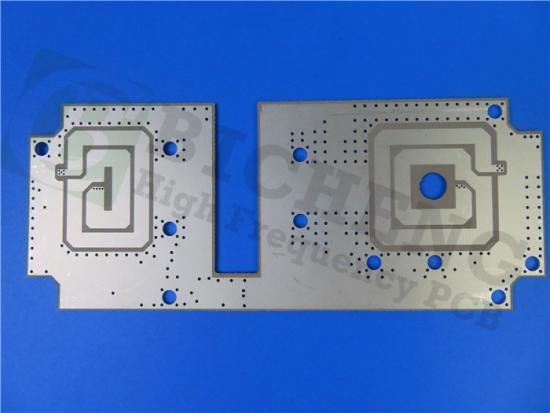

RT/duroid 6002 PCB Rogers 6002 30mil High Frequency 2 layer Circuit Board
Introduction
At the heart of the RT duroid 6002 PCB lies a ceramic-filled PTFE material renowned for its low dielectric constant and exceptional high-frequency performance. Designed for use in complex microwave structures, these Rogers 6002 PCBs offer a perfect blend of reliability and efficiency, making them a preferred choice for applications demanding uncompromising quality.
Features
1)Dielectric Constant (Dk):
With a Dk of 2.94 +/- .04, the RT/duroid 6002 PCB ensures consistent and reliable signal propagation.
2)Low Thermal Coefficient of Dk:
Boasting a thermal coefficient of Dk at 12 ppm/°C, this PCB maintains stability across varying temperature ranges.
3)Dissipation Factor:
The ultra-low dissipation factor of .0012 at 10GHz guarantees minimal signal loss, ideal for high-frequency applications.
4)Thermal Conductivity:
A thermal conductivity of 0.6 W/m/k enhances heat dissipation, ensuring optimal performance under demanding conditions.
5)Z-axis Coefficient of Thermal Expansion:
With a low coefficient of thermal expansion at 24 ppm/°C, the PCB offers excellent dimensional stability.
6)Moisture Absorption:
A minimal moisture absorption rate of 0.02% enhances the durability and longevity of the PCB.
Benefits
1)Low Loss High Frequency Performance:
The RT/duroid 600230milRogersPCB excels in delivering low loss and exceptional high-frequency performance, meeting the demands of modern communication systems.
2)Precision Thickness Control:
Tight thickness control ensures uniformity and consistency across the board, enhancing overall performance.
3)Temperature Compatibility:
The in-plane expansion coefficient matched to copper makes it ideal for applications sensitive to temperature fluctuations.
4)Space-Grade Reliability:
Low out-gassing properties make it suitable for space applications where reliability is paramount.
5)Dimensional Stability:
Enjoy peace of mind with excellent dimensional stability that ensures long-term performance and durability.
6)Mechanical and Electrical Integrity:
Designed for reliable multi-layer board constructions, the RT/duroid 6002 high frequency PCB offers unmatched mechanical and electrical properties.
PCB Specifications
Stackup:2 layer circuit board
Copper_layer_1: 35 μm
Rogers RT/duroid 6002 Substrate: 30mil (0.762mm)
Copper_layer_2: 35 μm
Construction Details:
PCB Construction Details |
Specifications |
Board Dimensions |
130mm x 80mm |
Quantity |
12 PCS (per type) |
Types |
6 |
Minimum Trace/Space |
5/5 mils |
Minimum Hole Size |
0.3mm |
Blind Vias |
No |
Finished Board Thickness |
0.8mm |
Finished Cu Weight |
1 oz (1.4 mils) outer layers |
Via Plating Thickness |
20 μm |
Surface Finish |
Immersion Gold |
Top Silkscreen |
No |
Bottom Silkscreen |
No |
Top Solder Mask |
No |
Bottom Solder Mask |
No |
Electrical Testing |
100% prior to shipment |
Statistics:
PCB Statistics |
Quantity |
Components |
17 |
Total Pads |
60 |
Thru Hole Pads |
39 |
Top SMT Pads |
21 |
Bottom SMT Pads |
0 |
Vias |
43 |
Nets |
2 |
Artwork Supplied: Gerber RS-274-X
Accepted Standard: IPC-Class-2
Availability: Worldwide
Typical Applications
1)Phased Array Antennas:
Benefit from superior signal processing capabilities in advanced antenna systems.
2)Radar Systems:
Ground-based and airborne radar systems achieve peak performance with the RT/duroid 6002 PCB.
3)GPS Antennas:
Ensure precision and accuracy in global positioning systems with reliable signal transmission.
4)Power Backplanes:
Experience efficient power distribution and management with enhanced thermal conductivity.
Aerospace Safety Systems: Commercial airline collision avoidance systems rely on the RT/duroid 600230milRogers substrates PCB for seamless operation.
5)Beam Forming Networks:
Enable dynamic beam shaping for enhanced communication networks.
Conclusion
In conclusion, the RT/duroid 6002 Rogers PCB 30mil stands as a testament to innovation and excellence in microwave technology. With its unparalleled features, benefits, and meticulous construction, it is poised to revolutionize the landscape of high-frequency electronics. Whether in space applications, radar systems, or communication networks, this PCB sets a new benchmark for performance, reliability, and quality.
