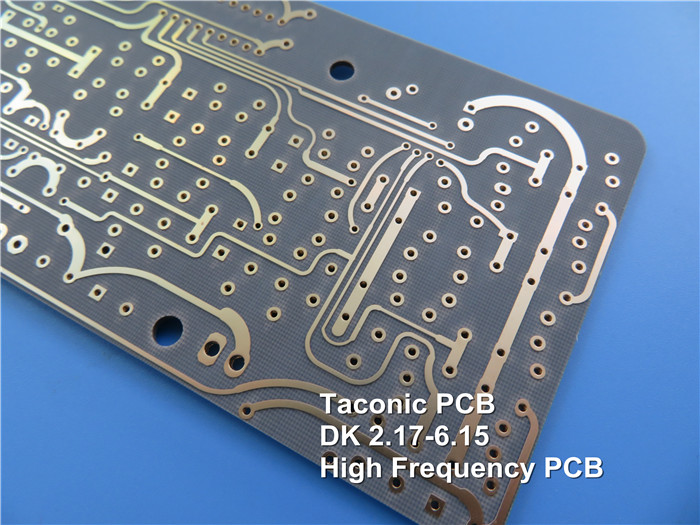

TLX-0 PCB 5mil RF Microwave Taconic Substrates 2-layer High Frequency Laminate

TLX-0 PCB 5mil RF Microwave Taconic Substrates 2-layer High Frequency Laminate

In the realm of RF microwave substrates, the TLX series stands as a testament to innovation and reliability. Among these cutting-edge materials, TLX-0 emerges as a frontrunner, offering a dielectric constant of 2.45 with a remarkable tight tolerance of ±0.04. Crafted from PTFE fiberglass composites,TLX-0 is engineered to excel in a wide spectrum of RF applications, ensuring unparalleled performance and longevity.

1. Introduction of TLX-0

The TLX series laminates, epitomized by TLX-0, are crafted with precision using PTFE fiberglass composites. With a dielectric constant ranging from 2.45 to 2.65, this material offers a versatile platform for a myriad of RF applications. Its robust nature, coupled with a selection of available thicknesses and copper cladding options, makes TLX-0 Taconic PCB materials the ideal choice for low layer count microwave designs.]

2. Features

Dielectric Constant (DK): 2.45 +/- 0.04 at 10GHz

Dissipation Factor: 0.0021 at 10GHz

Moisture Absorption: 0.02%

CTE: X-axis 21 ppm/°C, Y-axis 23 ppm/°C, Z-axis 215 ppm/°C

Peel Strength: 12 lbs/in

3. Benefits

PIM Values: Exceptional performance with values lower than -160 dBc

Mechanical & Thermal Properties: Unparalleled reliability in extreme environments

Stable DK: Consistent and low dielectric constant

Dimensional Stability: Ensures structural integrity over time

Moisture Absorption: Minimal impact from moisture

DF: Low dissipation factor

UL 94 V0 Rating: Meets high safety standards

Ideal for Low Layer Count Microwave Designs

4. PCB Stackup

Type: 2-layer rigid PCB

Copper Layer 1: 35 μm

TLX-0 Core: 0.127 mm (5 mils)

Copper Layer 2: 35 μm

5. PCB Construction Details

6. PCB Statistics

7. Type of Artwork Supplied: Gerber RS-274-X

8. Quality Standard: IPC-Class-2

9. Availability: Worldwide

10. Typical Applications

Couplers, splitters, combiners, amplifiers, antennas, and passive components

Radar systems, mobile communications

Microwave test equipment

Microwave transmission devices and RF components

Conclusion

In conclusion, the TLX-0 Taconic PCB 5mil redefines the landscape of RF microwave substrates, offering a blend of cutting-edge technology, reliability, and versatility. With its exceptional features, benefits, and applications, TLX-0 high frequency PCB stands as a beacon of innovation in the world of PCB design and manufacturing. Experience the future of RF applications with TLX-0.
