RT/duroid 6010.2LM laminates are specially formulated to meet the stringent requirements of modern electronic circuits, particularly those operating at X-band frequencies.
Item NO.:
BIC-229-v280.0Order(MOQ):
1-10Payment:
T/TProduct Origin:
ChinaShipping Port:
ShenzhenLead Time:
7-10 days

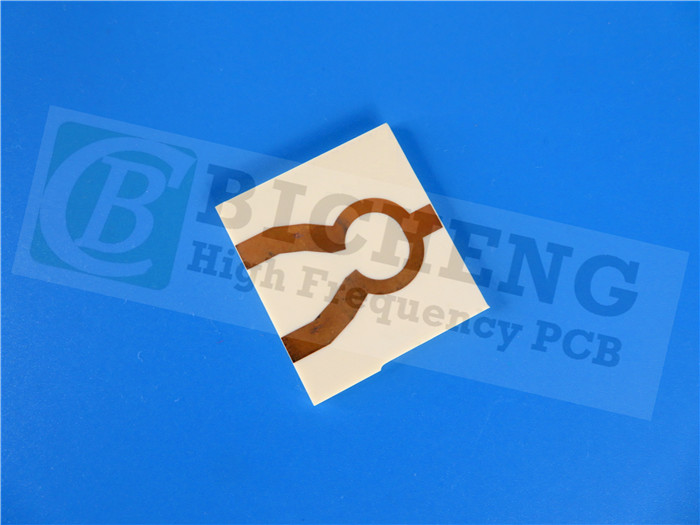

RT/duroid 6010.2LM PCB 2-layer 25mil
Our RT/duroid 6010.2LM laminates are at the forefront of modern electronic and microwave circuit applications, offering a unique blend of high dielectric constant and low loss properties. Designed for high-frequency operations, these ceramic-PTFE composites are engineered to provide exceptional performance and reliability in a variety of demanding applications.
Introduction
Rogers RT/duroid 6010.2LM laminates are specially formulated to meet the stringent requirements of modern electronic circuits, particularly those operating at X-band frequencies or below. The high dielectric constant (Dk) of 10.2 +/- 0.25 at 10GHz allows for significant circuit size reduction, making it an ideal choice for space-constrained designs. Additionally, the low dissipation factor of .0023 at 10GHz ensures minimal signal loss, resulting in high signal integrity and performance.
Features
1.High Dk and Low Loss:
With a Dk of 10.2, RT/duroid 6010.2LM laminates offer excellent dielectric properties, enabling superior circuit performance and reduced signal loss.
2.Temperature Stability:
Featuring a Decomposition Temperature (Td) of 500°C TGA, these laminates can withstand high-temperature environments, ensuring reliability in extreme conditions.
3.Low Moisture Absorption:
With a moisture absorption rate of only 0.01%, RT/duroid 6010.2LM laminates are highly resistant to environmental moisture, maintaining consistent electrical properties over time.
4.Thermal Conductivity:
Boasting a thermal conductivity of 0.86W/mk, these laminates offer efficient heat dissipation, making them suitable for high-power applications.
5.Flammability Rating:
RT/duroid 6010.2LM laminates have a flammability rating of V-0 UL94, ensuring compliance with strict safety standards.
Benefits
1.Size Reduction:
The high dielectric constant of RT/duroid 6010.2LM laminates allows for compact circuit designs, saving valuable board space.
2.Low Loss:
Ideal for X-band and below, these laminates offer minimal signal loss, ensuring high performance in high-frequency applications.
3.Reliable Plated Through Holes:
The low Z-axis expansion of RT/duroid 6010.2LM laminates provides reliable plated through holes in multilayer boards, enhancing overall board reliability.
4.Repeatable Performance:
Tight εr and thickness control ensure consistent circuit performance, making RT/duroid 6010.2LM laminates a reliable choice for critical applications.
PCB Construction Details
RO6010.2LM PCBs are meticulously constructed to ensure optimal performance and reliability. Featuring a 2-layer rigid PCB stackup with copper layers and a Rogers RT/duroid 6010.2LM core, these boards offer exceptional electrical characteristics and thermal stability.
Items |
Specifications |
Board dimensions |
35mm x 10mm (±0.15mm) |
Minimum Trace/Space |
6/6 mils |
Minimum Hole Size |
0.35mm |
Blind vias |
No |
Finished board thickness |
0.7mm |
Finished Cu weight |
1oz (1.4 mils) outer layers |
Via plating thickness |
20 μm |
Surface finish |
Immersion Gold |
Top Silkscreen |
White |
Bottom Silkscreen |
No |
Top Solder Mask |
Blue |
Bottom Solder Mask |
No |
Edge plated required |
Yes |
Half-hole (castellated) |
Yes |
100% Electrical Test |
Yes |
PCB Statistics
PCB Statistics |
Value |
Components |
6 |
Total Pads |
14 |
Thru Hole Pads |
7 |
Top SMT Pads |
7 |
Bottom SMT Pads |
0 |
Vias |
7 |
Nets |
2 |
Application:
The versatility and performance of RT/duroid 6010.2LM PCBs make them suitable for a wide range of applications, including:
Patch Antennas
Satellite Communications Systems
Power Amplifiers
Aircraft Collision Avoidance Systems
Ground Radar Warning Systems
Availability
RT/duroid 6010.2LM high frequency PCBs are available worldwide, meeting the highest quality standards (IPC-Class-2) and supplied with Gerber RS-274-X artwork.
For cutting-edge electronic and microwave circuit applications that demand high performance, reliability, and efficiency, RT/duroid 6010.2LM PCBs are the ideal choice. Experience the difference that advanced ceramic-PTFE composites can make in your next project. Order yours today and elevate your circuits to new heights of performance and reliability.
Conclusion:
In conclusion, 6010.2LM PCBs offer a winning combination of high dielectric constant, low loss, and superior reliability for advanced electronic and microwave circuit applications. With exceptional thermal stability, moisture resistance, and tight control over electrical properties, these PCBs are the ideal choice for high-frequency operations. Whether you are designing patch antennas, satellite communication systems, power amplifiers, or aerospace systems, our RT/duroid 6010.2LM PCBs deliver unmatched performance and consistency. Trust in our worldwide availability, stringent quality standards, and cutting-edge technology to take your circuits to the next level. Elevate your designs with RT/duroid 6010.2LM PCBs and experience the difference in performance and reliability.
