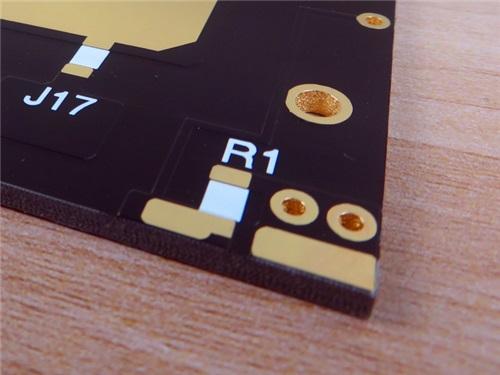

Wangling F4BTM350 2-layer 3.048mm 120mil ENIG DK 3.5 PTFE F4B High Frequency PCB

Wangling F4BTM350 2-layer 3.048mm 120mil ENIG DK 3.5 PTFE F4B High Frequency PCB

Designed for demanding high-frequency applications, the F4BTM350 2-layer PCB combines advanced dielectric material technology with rigorous manufacturing standards to deliver exceptional signal integrity, thermal stability, and reliability. Tailored for microwave, RF, and radar systems, this PCB leverages Wangling F4BTM350 laminate—enhanced with nano-ceramic filling—to balance high dielectric constant, low loss, and mechanical robustness, making it a top choice for critical communication and sensing applications worldwide.

PCB Construction Details

The 120 mil F4BTM350 PCB’s construction is optimized for high-frequency performance and manufacturing precision, with key specifications defined to meet strict industry requirements:

PCB Stackup

The symmetric 2-layer rigid stackup is engineered to minimize signal distortion and thermal stress, centered on the high-performance F4BTM350 core:

PCB Statistics

Component and connectivity metrics reflect the PCB’s design for seamless integration into complex high-frequency systems:

Core Material: F4BTM350 Advantage

Our PCB’s core strength lies in the F4BTM350 laminate—scientifically engineered by combining fiberglass cloth, nano-ceramic fillers, and polytetrafluoroethylene (PTFE) resin through strict pressing processes. Derived from theF4BM dielectric layer, this advanced material integrates high-dielectric, low-loss nano-ceramics to deliver a superior balance of properties:

1) Stable Dielectric Performance: Dk of 3.5±0.07 and dissipation factor of 0.0025 at 10GHz, ensuring minimal signal attenuation for high-frequency applications.

2) Exceptional Thermal Stability: CTE values of 10 ppm/°C (x-axis), 12 ppm/°C (y-axis), and 51 ppm/°C (z-axis) across -55°C to 288°C, plus a low Dk thermal coefficient (-60 ppm/°C from -55°C to 150°C), preventing warpage under extreme temperature fluctuations.

3) Reliable Insulation & Durability: Moisture absorption≤0.05%, UL-94 V0 flammability rating, and CTI >600V (Grade 0), ensuring long-term performance in harsh environments.

4) Optimized Conductivity: Paired with ED copper foil (ideal for non-PIM requirements), it offers precise line control and low conductor loss, outperforming standard PTFE laminates.

Tailored for High-Impact Applications

Designed to meet the demands of mission-critical systems, this PTFE F4B PCB excels in:

• Microwave, RF, and radar systems
• Phase shifters and power dividers/couplers/combiners
• Feed networks and phased array antennas
• Satellite communications and base station antennas

Whether you’re building high-gain antennas for 5G base stations or precision radar modules for aerospace, our F4BTM350 DK 3.5 F4B PCB delivers consistent performance, reduced signal loss, and enhanced durability. Supported by Gerber RS-274-X artwork compatibility and 100% electrical testing, it ensures seamless manufacturing integration and zero-defect delivery.

With worldwide availability and adherence to IPC-Class-2 standards, this F4BTM350 high frequency PCB is not just a component—it’s a strategic investment in your product’s reliability and performance. Partner with us to leverage cutting-edge laminate technology and precision engineering for your next high-frequency project. Contact our sales team today to discuss customizations, volume pricing, or technical support tailored to your needs.
