TP300 Wangling PCBs with their unique high-frequency thermoplastic material composition, flexibility in dielectric constants, exceptional performance in various applications, and reliable construction provide an excellent choice for engineers seeking high-performance PCBs.
Item NO.:
BIC-276-v342.0Order(MOQ):
1-10Payment:
T/TProduct Origin:
ChinaShipping Port:
ShenzhenLead Time:
7-10 days

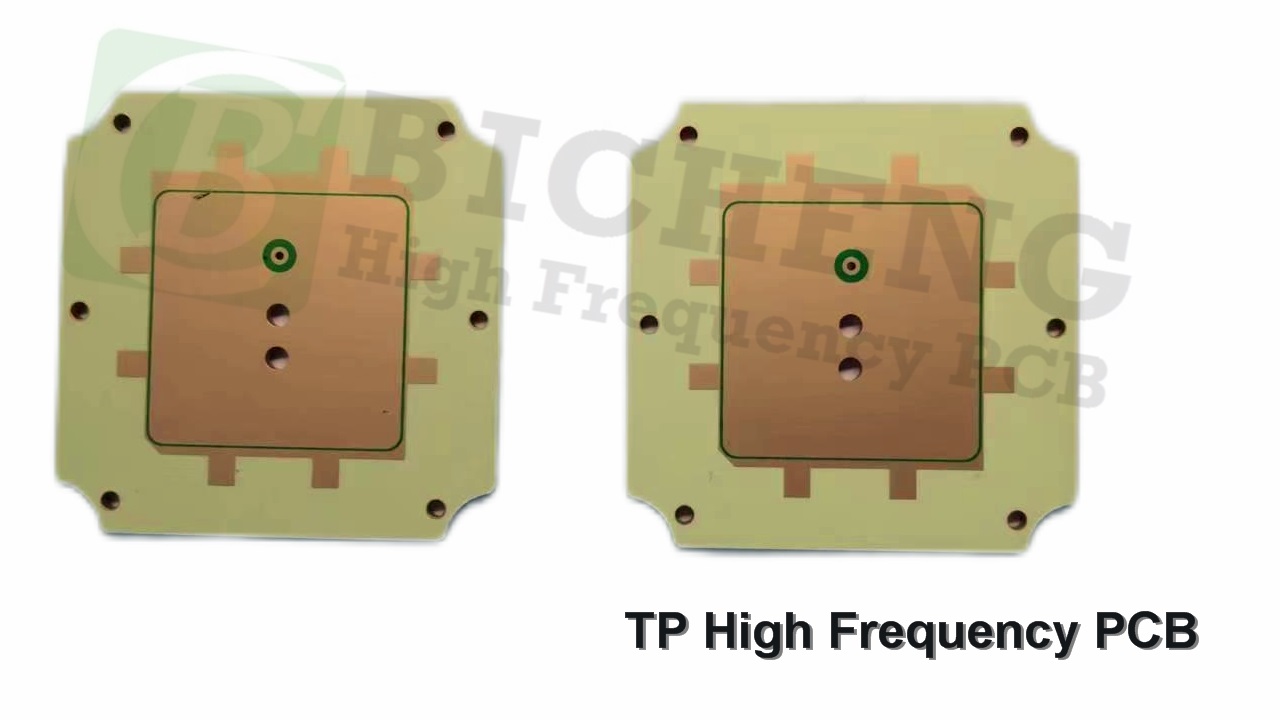

Wangling TP TP300 PCB 2-layer 0.5mm Immersion Silver
Introduction of Wangling TP:
Wangling TP is a unique high-frequency thermoplastic material used in the manufacturing of printed circuit boards(PCBs). It stands out in the industry due to its exceptional dielectric performance and high reliability. The TP-type laminates consist of a dielectric layer comprising ceramics and polyphenylene Oxide resin (PPO), without fiberglass reinforcement. By adjusting the ratio between ceramics and PPO resin, the dielectric constant can be precisely controlled. There are three variations of TP material: TP,TP-1, and TP-2. TP refers to the smooth surface material without copper cladding, TP-1 has copper cladding on one side, and TP-2 has copper cladding on both sides.
Features
1) Flexible Dielectric Constant:
Wangling TP offers a range of dielectric constants from 3 to 25, allowing engineers to choose the optimal value based on circuit requirements. The dielectric constant is stable and can be precisely adjusted. Common dielectric constants available include 3.0, 4.4, 6.0, 6.15, 9.2, 9.6, 10.2, 11, 16, and 20. The material exhibits low dielectric loss, with only a minor increase as the frequency exceeds 10 GHz.
2) Wide Temperature Range:
The TP material PCB can withstand long-term operating temperatures ranging from -100°C to +150°C. It excels in low-temperature resistance and maintains excellent performance even under extreme conditions. However, care should be taken to avoid exceeding 180°C, as the material may deform, the copper foil may peel off, and there may be noticeable changes in electrical performance.
3) Customizable Thickness:
Wangling TP300 PCBs are available in various thicknesses, starting from the thinnest option of 0.5mm. This flexibility allows for customization based on specific project requirements.
4) Radiation Resistance and Low Outgassing:
TP material exhibits resistance to radiation, making it suitable for applications requiring high reliability in harsh environments. Additionally, the material has low outgassing, contributing to its reliability in sensitive applications.
5) Versatile Applications:
Wangling TP300 is an ideal material for various advanced applications, including Beidou systems, missile-borne equipment, fuzes, and miniaturized antennas. Its unique properties make it suitable for demanding projects that require high performance and reliability.
6) Reliable Copper Foil Adhesion:
The adhesion between the copper foil and dielectric layer in TP PCBs is superior to ceramic substrates with vacuum coating. This ensures the longevity and stability of the PCBs. Moreover, the material is easy to machine and can be processed using methods such as drilling, turning, grinding, shearing, and etching. These capabilities surpass what ceramic substrates can achieve.
Typical Model Number List
Wangling TP offers a range of model numbers with different dielectric constants to suit various design needs. Some of the typical model numbers available are:
TP300 (DK3.0)
TP440 (DK4.4)
TP600 (DK6.0)
TP615 (DK6.15)
TP960 (DK9.6)
TP1020 (DK10.2)
TP1050 (DK10.5)
TP1100 (DK11)
TP1600 (DK16)
TP2000 (DK20)
TP2200 (DK22)
TP2500 (DK25)
PCB Stackup and Construction
Wangling TP300 PCBs are 2 layer PCB stackup thickness with a stackup as follows:
Copper Layer 1: 35μm
TP300 Core: 0.5 mm thickness
Copper Layer 2: 35μm
PCB Construction Details
Parameter |
Value |
Board dimensions |
53.2mm x 66.56 mm=2 Types=2PCS |
Dimension Tolerance |
+/- 0.15mm |
Minimum Trace/Space |
4/7 mils |
Minimum Hole Size |
0.25mm |
Blind vias |
No |
Finished board thickness |
0.6mm |
Finished Cu weight |
1oz (1.4 mils) outer layers |
Via plating thickness |
20 μm |
Surface finish |
Immersion silver |
Top Silkscreen |
No |
Bottom Silkscreen |
No |
Top Solder Mask |
No |
Bottom Solder Mask |
No |
Electrical Test |
100% prior to shipment |
PCB Statistics
PCB Statistics |
Value |
Components |
11 |
Total Pads |
39 |
Thru Hole Pads |
27 |
Top SMT Pads |
12 |
Bottom SMT Pads |
0 |
Vias |
15 |
Nets |
2 |
Artwork and Quality Standards
Artwork Format: Wangling TP300 PCBs utilize Gerber RS-274-X format for artwork, ensuring compatibility with a wide range of PCB design software.
Quality Standard: The TP300 PCBs are manufactured adhering to IPC-Class-2 quality standards, guaranteeing high-quality performance and reliability.
Availability
Wangling TP300 PCBs are available for purchase worldwide. With global availability, these high-performance PCBs can be readily accessed by customers in various regions to meet their project requirements.
Applications
The Wangling TP300 PCBs find applications in a range of industries and projects. Some typical applications include:
GPS Antennas
Missile-Borne Systems
Fuzes
Miniaturized Antennas
Conclusion
In conclusion,TP300 Wangling PCBs with their unique high-frequency thermoplastic material composition, flexibility in dielectric constants, exceptional performance in various applications, and reliable construction provide an excellent choice for engineers seeking high-performance PCBs. TheTP300 series offers multiple model numbers with different dielectric constants, enabling precise customization. With worldwide availability and adherence to IPC-Class-2 quality standards, Wangling TP300 high frequency PCBs ensure reliability, quality, and performance for advanced projects across industries.
