2-layer Isola I-Tera MT40 10mil Core PCB With Immersion Silver

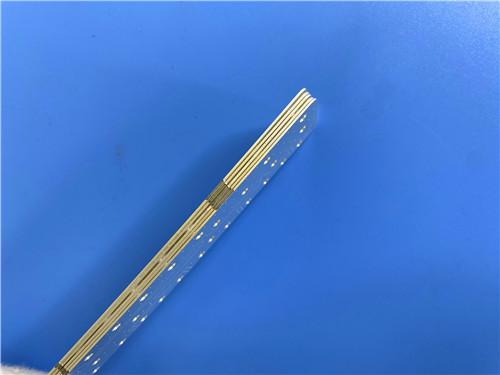

2-layer Isola I-Tera MT40 10mil Core PCB With Immersion Silver

This 2-layer 10mil PCB is a precision-engineered circuit board built on Isola I-Tera MT40 high-performance laminate, designed to deliver exceptional signal integrity, thermal stability, and manufacturing reliability for demanding high-speed digital, RF/microwave, and industrial electronic applications. Developed to balance cost-effectiveness with advanced electrical performance, this double-sided Isola PCB eliminates unnecessary complex structures while maintaining strict compliance with global industry standards, making it an ideal solution for applications requiring consistent high-frequency performance without the premium of specialized PTFE-based materials.

PCB Construction Details

This section defines the core physical, material, and manufacturing specifications of the 2-layer MT40 PCB, establishing its structural baseline, material compliance, and production quality control standards.

PCB Stackup Configuration

The stackup design of this double-sided PCB is optimized for signal integrity and manufacturing consistency, with a streamlined 2-layer structure that removes complex dielectric layers and via structures to maintain uniform electrical performance across high-frequency operating ranges.

PCB Performance & Differentiated Advantages

• This2-layer I-Tera MT40 PCB stands out from standard FR-4 based circuit boards through its material selection and design optimizations tailored for high-performance applications. The choice ofIsola MT40 laminate delivers a stable dielectric constant (Dk) of 3.45 across -55°C to +125°C up to W-band frequencies, with a low dissipation factor (Df) of 0.0031 at 2GHz, minimizing signal loss in high-speed digital and RF/microwave circuits. The no-solder-mask, no-bottom-silkscreen design reduces parasitic capacitance and dielectric interference, a critical optimization for applications operating at 2GHz and above.

• Manufacturing-wise, the PCB is fully compatible with standard FR-4 fabrication processes, eliminating the need for special through-hole treatments required for PTFE-based laminates, which reduces production lead times and costs while maintaining high yield rates. The immersion silver surface finish ensures reliable solderability for multiple reflow cycles, supporting lead-free assembly and high-volume manufacturing. The 100% electrical testing guarantees zero defects in connectivity and insulation, while the metal edging process enhances durability for rugged industrial and aerospace environments.

PCB Conclusion

This 2-layer 10mil Isola MT40 PCB is a high-reliability, cost-effective solution for high-speed digital and RF/microwave applications, balancing advanced electrical performance with manufacturing simplicity. Its optimized stackup, precision construction, and compliance with global standards make it suitable for use in telecommunications equipment, industrial control systems, aerospace electronics, and high-speed data processing devices, delivering consistent performance without the complexity or cost of specialized high-frequency PCB materials.

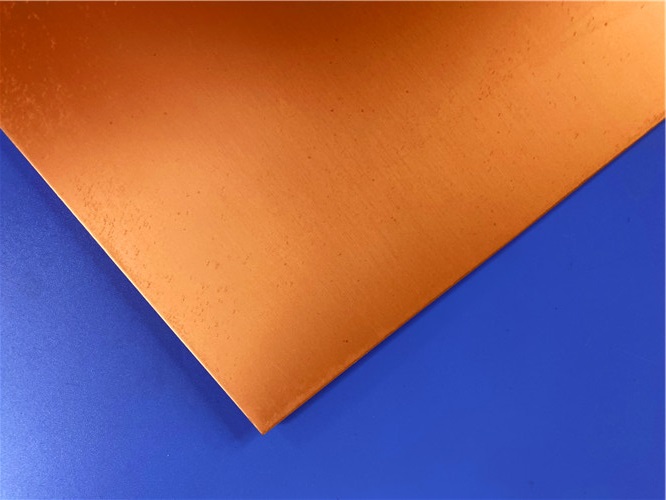

Underlying CCL Material: Isola I-Tera® MT40 Laminate–Comprehensive Technical Deep Dive

The performance of the 2-layer MT40 PCB is fundamentally enabled by its core Copper Clad Laminate (CCL) material:Isola I-Tera® MT40, a high-performance epoxy-based laminate designed as a cost-effective alternative to PTFE and other commercial high-frequency materials. This section provides a detailed breakdown of the MT40 CCL’s technical specifications, performance advantages, and application compatibility, separate from the PCB’s structural design to highlight the material’s unique capabilities.

Core CCL Performance Specifications

The following table outlines the key technical properties of Isola I-Tera® MT40 laminate, tested in accordance with IPC-TM-650 and industry-standard methods, defining its electrical, thermal, and mechanical performance baseline.

CCL Key Performance Advantages

• Isola I-Tera® MT40 CCL is engineered to address the core limitations of standard FR-4 laminates for high-frequency applications, while avoiding the processing complexity and cost of PTFE-based materials. Its most notable advantage is its stable dielectric performance: the Dk of 3.45 remains consistent across a wide temperature range (-55°C to +125°C) and up to W-band frequencies, ensuring predictable signal transmission in varying operating conditions. The low Df of 0.0031 at 2GHz minimizes signal attenuation, making it ideal for high-speed digital designs and RF/microwave circuits where signal loss is a critical design constraint.

• Thermally, MT40 delivers exceptional stability, with a Tg of 215°C (by DSC) and a decomposition temperature of 360°C, supporting multiple lead-free reflow cycles and high-temperature operating environments without delamination or performance degradation. Its low moisture absorption of 0.1% reduces the risk of CAF (Conductive Anodic Filament) formation, enhancing long-term reliability in humid and harsh operating conditions.
• Mechanically, the laminate offers high flexural strength (490MPa in the length direction) and controlled CTE matching copper foil, reducing the risk of thermal stress-induced failures during assembly and operation. It is available in standard thicknesses from 2 to 24mils, with multiple copper foil options including HVLP, RTF, and embedded resistor foil, supporting diverse PCB design requirements.

CCL Processing & Application Compatibility

• A key differentiated feature of MT40 CCL is its full compatibility with standard FR-4 PCB fabrication processes, eliminating the need for specialized through-hole treatments or lamination cycles required for PTFE materials. This allows manufacturers to produce high-frequency PCBs using existing production lines, reducing lead times, production costs, and process complexity. The laminate is available in both laminate and prepreg forms, supporting 2-layer to complex multilayer PCB designs, and is manufactured globally in Asia, North America, and Europe for consistent supply chain access.

CCL Conclusion

Isola I-Tera® MT40 CCL is a high-performance, cost-effective laminate solution that bridges the gap between standard FR-4 and premium PTFE-based materials for high-frequency PCB applications. Its stable electrical performance, exceptional thermal and mechanical reliability, and compatibility with standard PCB fabrication processes make it the ideal core material for the 2-layer 10mil MT40 PCB, enabling the final product to deliver consistent, high-reliability performance in demanding high-speed digital and RF/microwave applications.
