Home Rogers PCB Board IsoClad 917 High Frequency PCB on 20mil (0.508mm) Substrate with Immersion Gold and Green Solder Mask

IsoClad 917 High Frequency PCB on 20mil (0.508mm) Substrate with Immersion Gold and Green Solder Mask

The boards has a size of 126mm long by 95mm wide used on intelligent helmet.



  • Item NO.:

    BIC-206-v164.0
  • Order(MOQ):

    1-10
  • Payment:

    T/T
  • Price Range:1 - 50/$2.9
  • Price Range:1 - 50/$99
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-10 days
  • Product Detail


IsoClad 917 High Frequency PCB on 20mil (0.508mm) Substrate with Immersion Gold and Green Solder Mask

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)


General Description

This is a type of double sided wrap-around antenna PCB built on 20mil IsoClad 917 substrate, cladding 0.5oz copper plated to 1oz. The boards has a size of 126mm long by 95mm wide used on intelligent helmet. Surface finish on pads or exposed tracks is chemical gold which is very good for SMD soldering.Green solder mask protects entire board. They are strictly manufactured as per IPC-Class-2 standards and 100% electrical tested. Every 30 boards are vacuum packed for shipment.


PCB Specifications

Parameter Value
 Layer Counts  1-32
 Substrate Materials  RO4350B, RO4003C, RO4730G3, RO4360G2, RO4533, RO4534, RO4535, RO4835, RO3003, RO3006, RO3010, RO3035, RO3203, RO3210; RT/Duriod 5880; RT/Duriod 5870, RT/Duriod 6002, RT/Duroid 6010, RT/duroid 6035HTC; RT/duroid 5880LZ; TMM3, TMM4, TMM6, TMM10, TMM10i, TMM13i, Kappa 438; TLF-35; RF-35TC, RF-60A, RF-60TC, RF-35A2, RF-45, RF-10, TRF-45; TLX-0, TLX-6, TLX-7, TLX-8; TLX-9, TLY-3, TLY-5, TLY-5Z; PTFE F4B (DK2.2 DK2.65 DK2.85 DK2.94, DK3.0, DK3.2, DK3.38, DK3.5, DK4.0, DK4.4, DK6.15, DK10.2); AD250C, AD255C, AD300D, AD350A, AD450, AD600, AD1000, TC350; TC600; DiClad 880, DiClad 870, DiClad 527; IsoClad 917;  Nelco N4000, N9350, N9240; SCGA-500 GF220, SCGA-500 GF255, SCGA-500 GF265, SCGA-500 GF300; FR-4 ( High Tg S1000-2M, TU-872 SLK, TU-768, IT-180A etc.), FR-4 High CTI>600V; Polyimide, PET; Metal Core etc.
 Maximum Size  Flying test: 900*600mm, Fixture test 460*380mm, No test 1100*600mm
 Board Outline Tolerance  ±0.0059" (0.15mm)
 PCB Thickness 0.0157" - 0.3937" (0.40mm--10.00mm)
Thickness Tolerance(T≥0.8mm)  ±8%
Thickness Tolerance(t<0.8mm)  ±10%
 Insulation Layer Thickness 0.00295" - 0.1969" (0.075mm--5.00mm)
 Minimum Track 0.003" (0.075mm)
 Minimum Space  0.003" (0.075mm)
 Outer Copper Thickness  35µm--350µm (1oz-10oz)
 Inner Copper Thickness  17µm--350µm (0.5oz - 10oz)
 Drill Hole(Mechanical) 0.0079" - 0.25" (0.2mm--6.35mm)
 Finished Hole(Mechanical) 0.0039"-0.248" (0.10mm--6.30mm)
DiameterTolerance(Mechanical) 0.00295" (0.075mm)
 Registration (Mechanical) 0.00197" (0.05mm)
 Aspect Ratio  12:1
 Solder Mask Type  LPI
 Min Soldermask Bridge 0.00315" (0.08mm)
 Min Soldermask Clearance 0.00197" (0.05mm)
 Plug via Diameter 0.0098" - 0.0236" (0.25mm--0.60mm)
Impedance Control Tolerance  ±10%
 Surface Finish HASL,HASL LF,ENIG,Immersion Tin,Immersion Silver, OSP, Gold Finger, Pure gold plated etc.

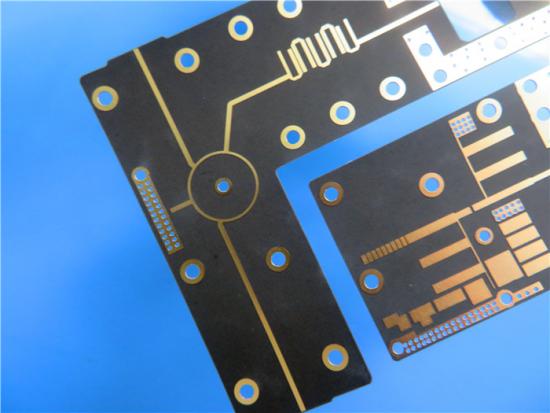

2L isoClad 917 pcb


Our Advantages

1.More than 19+ years of high frequency PCB experience;

2.ISO9001, ISO14001, ISO13485, UL certified manufacturing factory;

3.Rate of qualified products of first production: >99%

4.16000㎡workshop; 30000㎡output capability per month; 8000 types of PCB's per month;

5.Delivery on time: >98% ; Customer complaint rate: <1%

6.No MOQ, low cost for prototypes and small runs quantity;

7.Prototype PCB capability to Volume Production capability;

8.Wide ranges of high frequency material being chosen, Rogers, Taconic, Wangling, Shengyi etc.

9.Professional and experienced engineers check your production files and strong after-sales service.

10.IPC Class 2 / IPC Class 3


Our PCB Capability (2022)

PCB SIZE 126mm x 95mm=1 piece
BOARD TYPE High Frequency PCB
Number of Layers 2 layers
Surface Mount Components YES
Through Hole Components N/A
LAYER STACKUP copper ------- 17um(0.5 oz)+plate top layer
IsoClad 917 0.508mm
copper ------- 17um(0.5 oz)+plate bot layer
TECHNOLOGY
Minimum Trace and Space: 4 mil / 4 mil
Minimum / Maximum Holes: 0.2 mm / 1.2 mm
Number of Different Holes: 8
Number of Drill Holes: 251
Number of Milled Slots: 3
Number of Internal Cutouts: 3
Impedance Control: no
Number of Gold finger: 0
BOARD MATERIAL
Glass Epoxy:  IsoClad 917 0.508mm
Final foil external:  1.0 oz
Final foil internal:  1.0 oz
Final height of PCB:  0.6 mm ±0.1
PLATING AND COATING
Surface Finish Immersion Gold, 31.6%
Solder Mask Apply To:  Both sides
Solder Mask Color:  Green
Solder Mask Type: Glossy
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend Top side
Colour of Component Legend White
Manufacturer Name or Logo:  Kuangshung
VIA Plated through hole(PTH), minimum size 0.2mm. via filled and tented.
FLAMIBILITY RATING 94V-0
DIMENSION TOLERANCE
Outline dimension:   0.0059"
Board plating: 0.0029"
Drill tolerance:  0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.


FAQ's


Do We Deliver Worldwide?

All PCBs purchasable through Bicheng Ltd can be dispatched worldwide to any non embargoed countries. We’ll choose the suitable shipping carriers for you among DHL, FedEx, TNT, UPS, EMS and Aramex


Is the High frequency Materials In Stock?

We keep most of the high frequency material in stock with prototype quantity,such as Rogers material with 3000 series, 4000 series, 5000 series, 6000 series etc, Taconic material with RF series, TLX series, TLY series etc, Wangling material F4B with DK2.2, DK2.65 etc. Since the high frequency material has so much variety, you can consult our sales persons before ordering.


Can I Collect My Order?

It’s completely no problem to pick up ordering of boards or collection of PCBs from our premises through your account in DHL, UPS or FedEx etc.. We’ll help to prepare the necessary export documents or files for customs declare.


How Much Will It Cost For Delivery?

We have various carriers to choose. Usually, we’ll pick one with best shipping fee for you. If your order is urgent, we can help to choose the forwarder with fast timeliness.


Am I Able To Return My PCBs?

PCBs are irreversible custom-made products, it is not allowed to return the items if there’s no quality problems.


When Will My Order Arrive?

All the PCBs are dispatched the same day if they are finished fabrication before 5pm. For Asian clients, you can get it within 2-3 days, European clients in 6-7 days and American (North and South) in 6-7 days, however the carriers do not guarantee this because of the complexity of transportation.


Will I Need To Sign For My Package?

We dispatch all orders using DHL, UPS, FedEx, TNT, Aramex or EMS, so they are fully tracked and may require a signature.


How Can I Track My Order?

Once your PCB boards are dispatched, you will receive a shipping confirmation via email by our sales that includes a tracking number. You can track this number on their official websites.


What Should I Do If My Parcel Is Damaged Or Lost?

This situation is rare in our daily business. The PCB boards are packed with bubble materials inside and with KK grade carton outside to protect your PCBs. However, If your parcel is lost or damaged, you must contact us immediately so that we can contact the carrier and arrange for replacement production. Please keep any damaged items including damaged packaging for reference.
