Pneumatic SMT stencil 736mm x 736mm High-Precision Solder Paste Printing Solution

Pneumatic SMT stencil 736mm x 736mm High-Precision Solder Paste Printing Solution

1. Introduction

In the fast-evolving world of electronics manufacturing, precision and efficiency are paramount. The 736mm x 736mm Pneumatic SMT Stencil is engineered to meet the stringent demands of modern Surface Mount Technology (SMT) assembly processes. Designed for high-volume production, this stencil ensures exceptional accuracy, durability, and compatibility with a wide range of PCB manufacturing setups.

Whether used in consumer electronics, automotive systems, telecommunications, or industrial automation, this stencil delivers consistent solder paste deposition, minimizing defects and optimizing production throughput. Its high-grade stainless steel construction, reinforced frame, and standardized dimensions make it an indispensable tool for electronics manufacturers seeking reliability and performance.

2. Product Overview

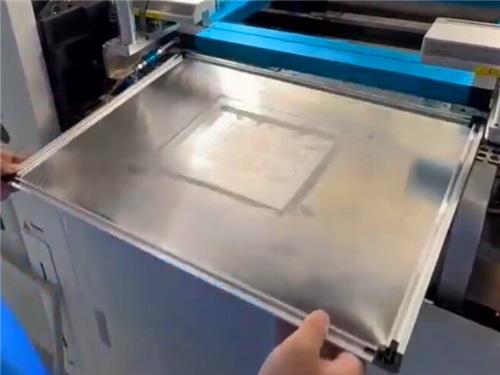

The Pneumatic SMT Stencil is a critical component in SMT assembly, facilitating the precise application of solder paste onto PCBs before component placement. Its 736mm x 736mm outer dimensions ensure compatibility with most automated stencil printers, while its 0.12mm thickness guarantees optimal paste volume control.

Key Features at a Glance:

✔Standard Outer Dimensions: 736mm x 736mm–Fits most SMT printers

✔Optimal Thickness: 0.12mm for precise solder paste deposition

✔High-Quality Material: Stainless steel for durability and corrosion resistance

✔Sturdy Frame Design: Reinforced for stability and longevity

✔High-Precision Apertures: Laser-cut for accuracy (±0.01mm tolerance)

✔Wide Application Range: Suitable for fine-pitch ICs, BGAs, QFNs, and passive components

3. Detailed Product Specifications

3.1 Dimensions & Compatibility

• Outer Dimensions: 736mm x 736mm (Industry-standard size for automated stencil printers)
• Frame Dimensions: 736mm x 736mm (Robust construction to prevent warping)
• Thickness: 0.12mm (Ideal for fine-pitch and high-density PCB designs)

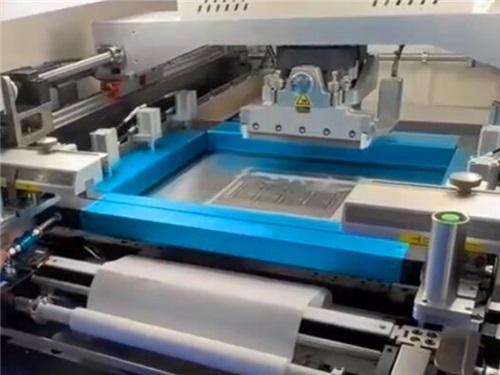

• This stencil is compatible with leading SMT printing machines from brands such as:
• DEK, Ekra, Panasonic, Yamaha, and ASM

3.2 Material & Manufacturing Process

• Primary Material: High-grade 304 or 316L stainless steel (Corrosion-resistant, wear-resistant)
• Aperture Cutting Method: Laser-cut with precision (±0.01mm tolerance)
• Surface Finish: Electropolished for smooth paste release and reduced clogging

3.3 Durability & Longevity

Expected Lifespan: 50,000+ prints (With proper maintenance)

Resistance to Wear: Stainless steel ensures minimal aperture deformation over time

Frame Reinforcement: Aluminum or steel frame prevents bending under tension

4. Key Advantages of the Pneumatic SMT Stencil

4.1 Unmatched Precision in Solder Paste Deposition

• Laser-cut apertures ensure consistent paste volume transfer, reducing bridging, insufficient solder, or tombstoning defects.
• 0.12mm thickness balances fine-pitch component requirements and adequate paste deposition for larger components.

4.2 Enhanced Durability for High-Volume Production

• Stainless steel construction resists wear from repeated squeegee strokes.
• Reinforced frame prevents warping, maintaining flatness for uniform printing.

4.3 Seamless Integration with SMT Equipment

• Universal 736mm x 736mm size fits most stencil printers without modification.
• Pneumatic clamping compatibility ensures quick mounting and alignment.

4.4 Cost-Effective Solution for Electronics Manufacturers

• Reduced solder paste waste due to precise aperture control.
• Long service life lowers replacement frequency, reducing operational costs.

5. Applications in Electronics Manufacturing

5.1 Consumer Electronics

Smartphones, tablets, wearables–Ensures reliable solder joints for miniaturized components.

5.2 Automotive Electronics

ECUs, sensors, infotainment systems–Withstands high-temperature and high-vibration environments.

5.3 Telecommunications & Networking Equipment

5G modules, routers, servers–Supports high-density interconnects (HDI) PCBs.

5.4 Industrial & Medical Electronics

Robotics, control systems, medical devices–Delivers precision for mission-critical assemblies.

6. Comparison with Conventional Stencils

7. Maintenance & Best Practices

To maximize the PCBstencil’s lifespan:

✔Regular Cleaning: Use ultrasonic cleaning or specialized stencil cleaners to remove solder paste residue.

✔Proper Storage: Store in a dry, dust-free environment to prevent oxidation.

✔Inspection: Check for aperture clogging or damage before each production run.

8. Conclusion

The 736mm x 736mm Pneumatic SMT Stencil is a high-performance, long-lasting solution for modern PCB assembly. Its precision engineering, robust construction, and broad compatibility make it an essential tool for manufacturers aiming for zero-defect production.

By investing in this stencil, businesses can achieve:

✅Higher first-pass yield rates

✅Reduced solder paste waste

✅Lower maintenance costs

✅Seamless integration with existing SMT lines

For high-volume PCB assembly with uncompromised quality, this stencil is the ultimate choice.

Interested in optimizing your SMT process? Contact us today for a customized solution!
