Taconic TLX-0 DK2.45 High-volume Fiberglass-reinforced Microwave Substrate

Taconic TLX-0 DK2.45 High-volume Fiberglass-reinforced Microwave Substrate

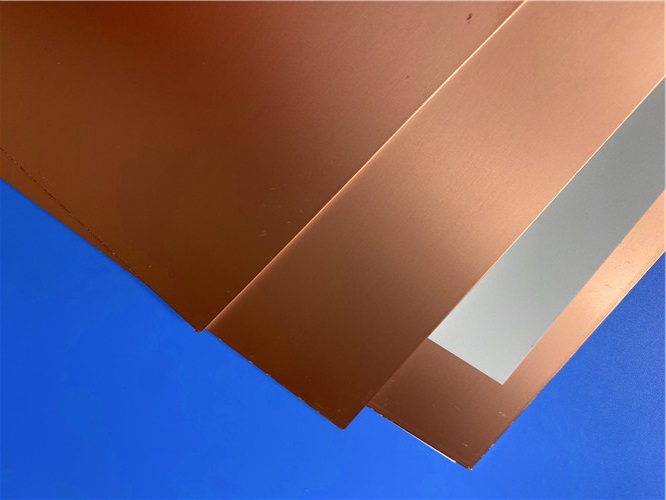

Taconic TLX-0 is a high-volume fiberglass-reinforced microwave substrate belonging to AGC TLX product line, engineered to deliver reliable performance across a broad spectrum of RF and microwave applications. As a PTFE fiberglass laminate, it stands out for its exceptional versatility, making it a preferred choice for low-layer-count microwave designs. The TLX-0 PCB material’s unique combination of mechanical reinforcement from fiberglass and advanced PTFE properties allows it to thrive in severe operating environments, including those involving high vibration, extreme temperatures, radiation exposure, and harsh marine conditions.

Ideal for fabricating critical components such as couplers, splitters, combiners, amplifiers, and antennas, TLX-0 DK2.45 substrate offers a balanced set of characteristics that meet the demanding requirements of modern RF systems. It maintains excellent passive intermodulation (PIM) values, stable dielectric performance, low moisture absorption, and strong dimensional stability—all while complying with UL 94 V-0 flammability standards. With a long-standing heritage in space applications (recognized for low outgassing per NASA’s specifications), TLX-0 copper clad laminate is trusted for use in radar systems, mobile communications equipment, microwave test devices, and warship antennas, among other high-reliability applications.

TLX-0 Core Parameter Tables

1. Dielectric Constant & Dissipation Factor

2. Outgassing Properties (NASA-Reported)

3. Dimensional & Thickness Specifications
