Polyimide 25um FPC Flexible PCB 2-layer 0.24mm Thick Immersion Gold

The Polyimide 25µm FPC PCB is a state-of-the-art solution designed to meet the rigorous demands of modern flexible and high-frequency applications.

  • Item NO.:

    BIC-315-v391.0
  • Order(MOQ):

    1-10
  • Payment:

    T/T
  • Price Range:1 - 50/$2.9
  • Price Range:1 - 50/$99
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-10 days
  • Product Detail


Polyimide 25um FPC Flexible PCB 2-layer 0.24mm Thick Immersion Gold



In the era of flexible and wearable electronics, the demand for high-performance, reliable, and lightweight printed circuit boards (PCBs) has never been greater. The Polyimide 25µm FPC PCB, built using Shengyi Technology’s SF305 Halogen-Free Flame-Resistant PI Film-Based FCCL, is a cutting-edge solution designed for high-frequency signal transmission and dynamic bending applications. This flexible PCB is engineered to meet the stringent requirements of modern electronics, including foldable mobile phones, wearable devices, automotive electronics, and medical devices. With its exceptional electrical, thermal, and mechanical properties, the Polyimide 25µm FPC PCB is the ideal choice for industries pushing the boundaries of innovation.



Key Features of Polyimide 25µm FPC PCB



1.Low Dielectric Loss and Stable Dielectric Constant:

The SF305 laminate FPC flexible printed circuit boasts a dielectric constant (Dk) of 3.3 at 10GHz (measured by IEC-61189-2-721), ensuring consistent signal integrity in high-frequency applications. Its dissipation factor (Df) is an ultra-low 0.0019 at 10GHz, minimizing signal loss and enabling high-speed data transmission with minimal distortion.



2.Excellent Flexibility and Durability:

With a peel strength of≥1N/mm and moisture absorption of≤1.5%, the Polyimide 25µm FPC PCB offers superior flexibility and durability, making it ideal for dynamic bending scenarios.



3.High Thermal and Chemical Resistance:

The polyimide flexible circuit PCB features a dielectric strength of 134 V/µm and chemical resistance of≥80%, ensuring reliable performance in harsh environments. It also meets the UL94 V-0 flammability standard, making it safe for high-risk applications.



4.Halogen-Free and Environmentally Friendly:

The SF305 laminate flexible circuit board is halogen-free and complies with global environmental standards, making it a sustainable choice for green manufacturing.



5.Cost Optimization:

Compared to similar imported products (e.g., DuPont Pyralux AP), the SF305 laminate offers a higher cost-performance ratio and faster supply chain response.

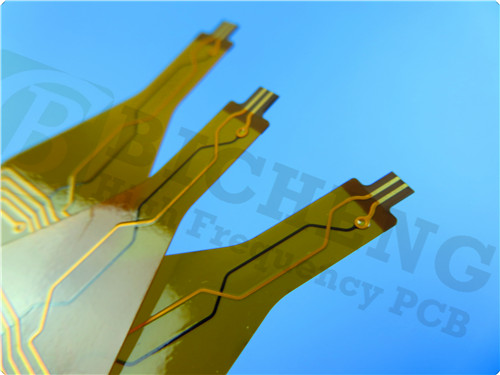

Polyimide 25um FPC 2-layer 0.24mm Thick Immersion Gold



Why Choose Polyimide 25µm FPC PCB?

1.High Frequency and Flexibility

The Polyimide 25µm polyimide flex PCB breaks through the high-frequency performance bottleneck of traditional FPCs, supporting millimeter-wave and high-speed data transmission.



2.Extraordinary Long Lifespan

With superior dynamic bending performance, this PCB ensures the reliability of folding devices, making it ideal for foldable smartphones and wearable electronics.



3.LResistant to Harsh Environments

The PCB has passed rigorous reliability tests, including high-temperature and high-humidity (double 85) and thermal shock (-40°C to 125°C), ensuring performance in extreme conditions.



4.Cost-Effective Manufacturing

The SF305 laminate High-Frequency FPC is compatible with traditional FPC processing technology, reducing production costs without compromising performance.





PCB Construction and Specifications

The polyimide flex circuit PCB is a 2-layer flexible PCB designed for high-reliability applications. Below are the detailed construction specifications:



Parameter

Details

Specifications

Board Dimensions

Length x Width

75 mm x 62 mm (±0.15 mm)

Quantity

Per Panel

1 PCS

Minimum Trace/Space

Trace Width / Space

14/16 mils

Minimum Hole Size

Drilled Hole Diameter

0.5 mm

Via Type

Through-Hole Vias

No Blind Vias

Finished Board Thickness

Total Thickness

0.24 mm

Finished Copper Weight

Outer Layers

1 oz (35 µm)

Via Plating Thickness

Plating Thickness

20 µm

Surface Finish

Type

Electroless Nickel Immersion Gold (ENIG)

Top Silkscreen

Color

White

Bottom Silkscreen

Color

None

Top Solder Mask

Color

Yellow

Bottom Solder Mask

Color

Yellow

Electrical Testing

Testing Method

100% Electrical Test Prior to Shipment





PCB Stackup



Layer

Material/Description

Thickness

Copper Layer 1

Copper

35 µm

Adhesive 1

Adhesive Layer

20 µm

Core

SF305 Polyimide Core

25 µm (0.025 mm)

Adhesive 2

Adhesive Layer

20 µm

Copper Layer 2

Copper

35 µm





PCB Statistics



Parameter

Count

Components

2

Total Pads

14

Thru-Hole Pads

12

Top SMT Pads

2

Bottom SMT Pads

0

Vias

0

Nets

2





Typical Applications

The wholesale flexible PCB is versatile and suitable for a wide range of high-performance applications, including:

- Computer

- Mobile phone,

- Digital camera, VCR,

- Automobile, Office Automatic equipment, etc..



Conclusion

The Polyimide 25µm FPC PCB is a state-of-the-art solution designed to meet the rigorous demands of modern flexible and high-frequency applications. With its advanced materials, exceptional flexibility, and high reliability, these FPC flexible PCB is the perfect choice for industries at the forefront of technological innovation. Whether you’re developing foldable smartphones, wearable electronics, or automotive systems, the double sided flexible PCB delivers unmatched performance and reliability.



Availability: Worldwide

Quality Standard: IPC-Class-2

Artwork Format: Gerber RS-274-X



Elevate your designs with the Polyimide 25µm FPC PCB–where flexibility meets performance. Contact us today to learn more or request a quote!
