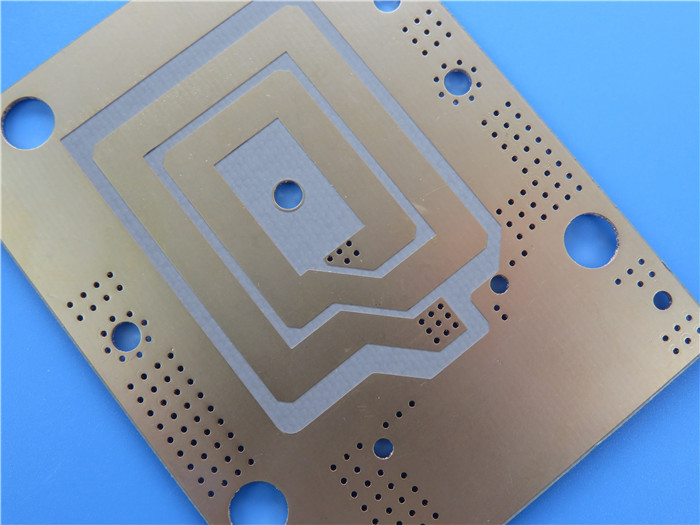

RF-35 PCB 60mil 1.524mm Taconic laminates 2-layer High Frequency Circuit Board

RF-35 PCB 60mil 1.524mm Taconic laminates 2-layer High Frequency Circuit Board

In the realm of high-volume commercial microwave and radio frequency applications, the RF-35 PCB emerges as a pinnacle of innovation and efficiency. Developed as part of Taconic ORCER family, the Taconic RF-35 leverages organic-ceramic technology and woven glass reinforcement to deliver exceptional performance and reliability. Let's delve deeper into the features, benefits, construction details, and applications of the RF-35 PCB to understand why it stands out as a preferred choice for discerning engineers and manufacturers worldwide.

1. Introduction to RF-35 PCB

The RF-35 PCB represents the pinnacle of Taconic's expertise in ceramic fill technology and coated PTFE fiberglass. Crafted from woven glass reinforcement, the 60mil RF-35 PCB is tailored for low-cost, high-volume commercial microwave and radio frequency applications. Its exceptional peel strength, especially with 1/2 ounce and 1 ounce copper, sets it apart from standard epoxy materials, making it an ideal choice for scenarios requiring rework. Additionally, its ultra-low moisture absorption rate and minimal dissipation factor ensure minimal phase shift with frequency variations.

2. Features of RF-35 PCB

Dielectric Constant at 1.9GHz: 3.5

Dissipation Factor at 1.9GHz: 0.0018

Dielectric Breakdown: 41 kV

CTE:

X-axis: 19 ppm/°C

Y-axis: 24 ppm/°C

Z-axis: 64 ppm/°C

Flammability: UL-94 V0

3. Benefits of RF-35 PCB

Cost-Effective Solution: Ideal for high-volume production.

Exceptional Peel Strength: Facilitates rework processes.

Ultra-Low Dissipation Factor: Minimizes signal loss.

Low Moisture Absorption: Ensures stable performance.

Enhanced Surface Smoothness: Promotes signal integrity.

4. PCB Stackup and Construction Details

Stackup:2 layer circuit board rigid PCB

Copper Layer 1: 35μm

RF-35 Core: 60mil (1.524 mm)

Copper Layer 2: 35μm

5. PCB Statistics

6. Additional Information

Type of Artwork Supplied: Gerber RS-274-X

Quality Standard: IPC-Class-2

Availability: Worldwide

7. Applications of RF-35 PCB

The RF-35 Taconic PCB materials finds optimal utility in a range of applications, including:

Power Amplifiers: Ensuring efficient power distribution.

Filters and Couplers: Facilitating signal filtration and distribution.

Passive Components: Supporting various passive circuit elements.

In essence, the RF-35 Taconic PCB embodies a fusion of cutting-edge technology and cost-effectiveness, making it the go-to choice for high-performance commercial microwave and RF applications. With its exceptional characteristics and versatile applications, the RF-35 Taconic laminates PCB is set to revolutionize connectivity solutions across industries worldwide.
