Home High Frequency PCB RF-35A2 RF PCB 20mil Double Sided High Frequency Circuit Board Coating Immersion Gold

RF-35A2 RF PCB 20mil Double Sided High Frequency Circuit Board Coating Immersion Gold

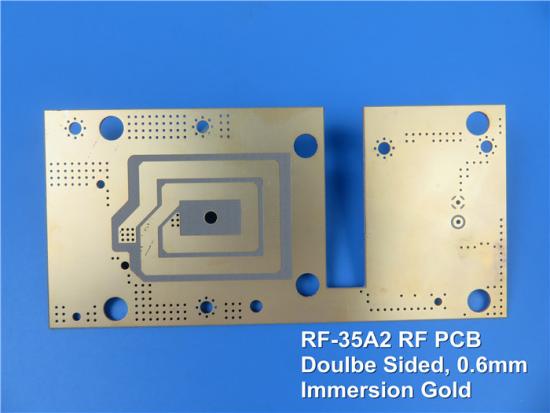

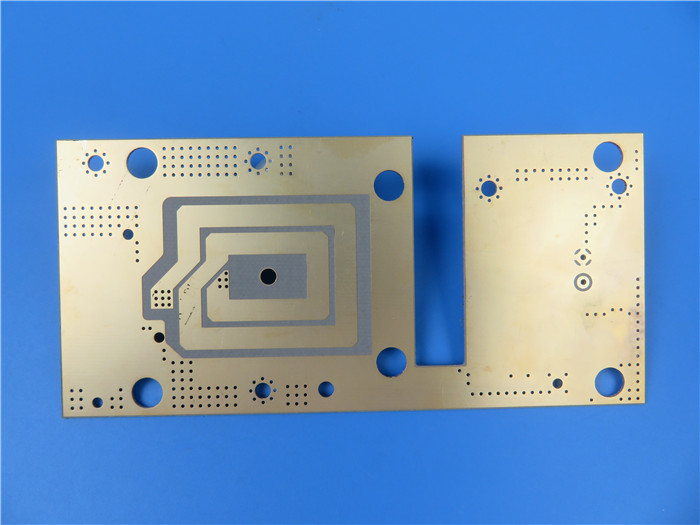

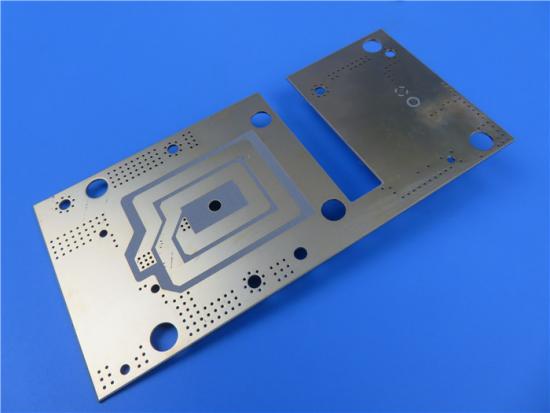

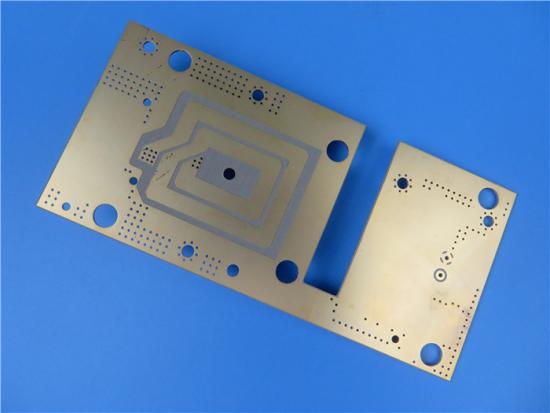

It’s built on 20mil core with 1oz copper on both top and bottom layer(double sided board). It’s 115mm x 55mm with immersion gold on pads. Bottom layer is open to air with gold surface as we’ve seen.






  • Item NO.:

    BIC-169-v133.0
  • Order(MOQ):

    1-10
  • Payment:

    T/T
  • Price Range:1 - 50/$99
  • Price Range:1 - 50/$2.9
  • Product Origin:

    China
  • Color:

    White
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-10 days
  • Product Detail

RF-35A2 RF PCB 20mil Double Sided High Frequency Circuit Board Coating Immersion Gold for Ultra Low Loss Power Amplifiers

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)


Brief Introduction:


This is a type of Taconic high frequency PCB using RF-35A2 substrate which is ultra low loss power amplifier material.


Taconic RF PCB:


Besides RF-35A2, there’re other types of Taconic “RF” PCB available in our house. Such as RF-10(10mil,20mil, 25mil, 60mil and 125mil), RF-30A(10mil, 20mil, 30mil,40mil and 60mil), RF-35TC(10mil, 20mil, 30mil), RF-60TC(10mil, 20mil, 30mil, 60mil and 125mil) etc. DK ranges 2.97 to 10.2 etc.


RF-35A2 20mil PCB


Our PCB Services:


PCB prototypes

Mass volume production

Single sided PCB

Double sided PCB

Multilayer PCB up to 32 layers

Heavy copper PCB

Hybrid PCB

Impedance controlled PCB

Via in pad PCB

Ball grid array (BGA) PCB

Blind via PCB

Countersink holes, half hole, press-fit hole

Quick turn-around (QTA) Delivery

No Minimum Order Quantity (MOQ)

Door to Door shipment service


CAPABILITY:


2500-3000 types each month.


SERVICE AREA:


North America, Oceania, Southeast Asia, Eastern Europe, Africa, Latin America, Western & Southern Europe, Northern Europe, Central & South Asian, Middle East.


Applications:


Power amplifiers

Filters / couplers

High speed digital

Passive components

Wireless antennas


PCB Specifications:


PCB SIZE 115 x 55mm=1up
BOARD TYPE Double sided PCB
Number of Layers 2 layers
Surface Mount Components YES
Through Hole Components NO
LAYER STACKUP copper ------- 17um(0.5 oz)+plate TOP layer
RF-35A2 0.508mm
copper ------- 17um(0.5 oz) + plate  BOT Layer
TECHNOLOGY
Minimum Trace and Space: 6.0 mil / 6.0 mil
Minimum / Maximum Holes: 0.4 mm / 0.4 mm
Number of Different Holes: 1
Number of Drill Holes: 8
Number of Milled Slots: 1
Number of Internal Cutouts: 1
Impedance Control: no
Number of Gold finger: 0
BOARD MATERIAL
Glass Epoxy:  RF-35A2 0.508mm
Final foil external:  1.0 oz
Final foil internal:  N/A
Final height of PCB:  0.6 mm ±0.1
PLATING AND COATING
Surface Finish Immersion gold, 60%
Solder Mask Apply To:  Top Layer
Solder Mask Color:  Black
Solder Mask Type: Kuangshun
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend Top Layer
Colour of Component Legend White
Manufacturer Name or Logo:  N/A
VIA Plated through hole(PTH), minimum size 0.4mm.
FLAMIBILITY RATING 94V-0
DIMENSION TOLERANCE
Outline dimension:   0.0059"
Board plating: 0.0029"
Drill tolerance:  0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.


BICHNEG PCB WORKSHOP:


BICHNEG PCB WORKSHOP


BICHNEG PCB CERTIFICATION:


BICHNEG PCB CERTIFICATION


BICHENG PCB MAIN COURIERS:


BICHENG PCB MAIN COURIERS
