With its unique composition, low moisture absorption, and uniform electrical properties, RF-60A delivers superior performance and reliability in extreme thermal environments.
Item NO.:
BIC-N38-v289.0Order(MOQ):
1-10Payment:
T/TProduct Origin:
ChinaShipping Port:
ShenzhenLead Time:
7-10 days

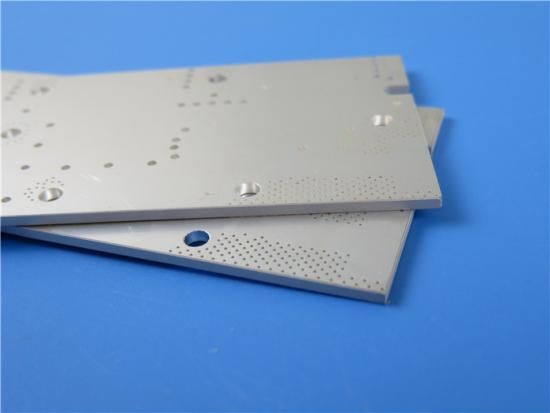

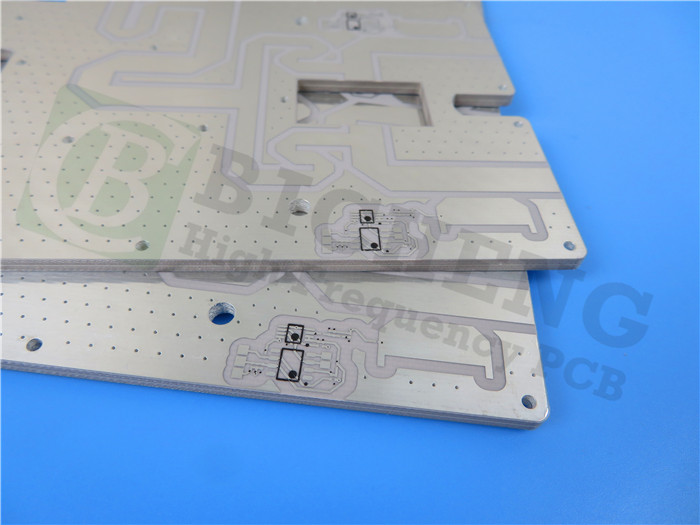

RF-60A PCBTaconic25mil 2-layer Rigid High Frequency Board with Immersion Tin
Introduction:
RF-60A PCB 25mil, manufactured by Taconic, is an organic ceramic fiberglass reinforced laminate that is specifically designed for high-frequency applications. This advanced material offers unique features that make it ideal for a wide range of electronic designs, including power amplifiers, filters, couplers, passive components, and antennas. In this detailed product description, we will explore the key features, benefits, construction details, statistics, quality standards, availability, and typical applications of RF-60A high frequency PCB.
Features:
RF-60A PCB is known for its exceptional electrical properties, dimensional stability, and reliability in extreme thermal environments. Some of the key features of this product include:
1.Dielectric constant (Dk) of 6.15 at 10GHz
The dielectric constant of a material is an important factor in determining its electrical properties. RF-60A PCB 25mil offers a high dielectric constant of 6.15 at 10GHz, making it suitable for high-frequency applications.
2.Dissipation factor of .0028 at 10GHz
The dissipation factor indicates the energy loss in the material due to dielectric losses. RF-60A PCB 25mil has a low dissipation factor of .0028 at 10GHz, ensuring efficient signal transmission.
3.Low coefficient of thermal expansion (CTE)
RF-60A PCB 25mil exhibits a low CTE in the x, y, and z-axis, making it dimensionally stable over a wide temperature range (-30°C to 125°C). This feature is crucial for applications where temperature variations can impact performance.
4.High thermal conductivity of 0.54 W/mk
The high thermal conductivity of RF-60A PCB 25mil helps in dissipating heat effectively, preventing overheating of components and ensuring reliable operation in demanding conditions.
5.High Flexural Strength
The material offers high flexural strength (MD of 18300 psi and CD of 14600 psi), providing enhanced durability and resistance to mechanical stress.
6.Low moisture absorption
With a moisture absorption rate of only 0.02%, RF-60A PCB 25mil is resistant to moisture ingress, ensuring long-term reliability.
7.ROHS & WEEE compliant
The product is compliant with ROHS (Restriction of Hazardous Substances) and WEEE (Waste Electrical and Electronic Equipment) directives, meeting environmental standards.
Benefits:
RF-60A PCB 25mil offers a range of benefits that make it a preferred choice for high-frequency applications. Some of the key benefits include:
1.Stable Dk over frequency
The material maintains a stable dielectric constant over a wide frequency range, ensuring consistent performance in high-frequency applications.
2.Dimensionally stable
RF-60A PCB 25mil exhibits excellent dimensional stability, making it suitable for applications where precise dimensions are required.
3.Exceptional interlaminar bonds
The material offers exceptional interlaminar bond strength, ensuring reliable performance and preventing delamination.
4.Low Z-axis expansion
The low Z-axis expansion of RF-60A PCB 25mil allows for plated-through-hole reliability in extreme thermal environments, ensuring long-term durability.
5.High thermal conductivity
The high thermal conductivity of the material helps in efficient heat dissipation, preventing thermal issues and ensuring reliable operation.
PCB Construction Details:
RF-60A PCB 25mil is a 2-layer rigid PCB with the following construction details:
Copper_layer_1: 35 μm
RF-60A Core: 0.635 mm (25mil)
Copper_layer_2: 35 μm
Construction Details |
Specifications |
Board Dimensions |
83mm x 65mm=1PCS, +/- 0.15mm |
Minimum Trace/Space |
6/7 mils |
Minimum Hole Size |
0.4mm |
Blind Vias |
No |
Finished Board Thickness |
0.71mm |
Finished Cu Weight |
1oz (1.4 mils) outer layers |
Via Plating Thickness |
20 μm |
Surface Finish |
Immersion tin |
Top Silkscreen |
No |
Bottom Silkscreen |
No |
Top Solder Mask |
No |
Bottom Solder Mask |
No |
Electrical Test Prior to Shipment |
100% |
PCB Statistics:
Statistics |
Quantity |
Components |
17 |
Total Pads |
44 |
Thru Hole Pads |
25 |
Top SMT Pads |
19 |
Bottom SMT Pads |
0 |
Vias |
23 |
Nets |
4 |
Quality Standard:
RF-60A PCB complies with IPC-Class-2 quality standard, ensuring high-quality manufacturing processes and reliable performance.
Availability:
The product is available worldwide, making it easily accessible for customers across different regions.
Applications:
25milRF-60Amaterial PCB is suitable for a variety of high-frequency applications, including:
Power Amplifiers
Filters & Couplers
Passive Components
Antennas
In conclusion, RF-60A PCB 25mil is a high-performance material that offers exceptional electrical properties, dimensional stability, and reliability for high-frequency applications. With its advanced features, benefits, construction details, quality standards, availability, and typical applications, RF-60A Taconic PCB is the ideal choice for demanding electronic designs that require precision, durability, and reliability.
