RO3203 High Frequency PCB offer exceptional performance and mechanical stability for high-frequency applications.
Item NO.:
BIC-292-v361.0Order(MOQ):
1-10Payment:
T/TProduct Origin:
ChinaShipping Port:
ShenzhenLead Time:
7-10 days
RO3203 PCB 2-Layer 20mil 0.508mm Rogers 3203 High Frequency Circuit Materials
Introduction
RO3203 High Frequency Circuit Materials are ceramic-filled laminates reinforced with woven fiberglass. Engineered to offer exceptional electrical performance and mechanical stability, these materials are competitively priced. The RO3203 series is an extension of the RO3000 series, with improved mechanical stability. With a dielectric constant of 3.02 and a dissipation factor of 0.0016, RO3203 extends the useful frequency range beyond 40 GHz.
Features
Microwave Rogers 3203 PCB ceramic-filled PTFE composites are the key components of these high-frequency circuit materials. They possess the following features:
2.1 Dielectric constant of 3.02+/- 0.04 at 10 GHz/23°C, ensuring reliable signal transmission.
2.2 Low dissipation factor of 0.0016 at 10 GHz/23°C, minimizing the loss of signal quality.
2.3High thermal stability with a Td value exceeding 500°C, ensuring the material's performance under challenging conditions.
2.4Thermal conductivity of 0.87 W/mK, facilitating heat dissipation in high-power applications.
2.5 Coefficient of Thermal Expansion (CTE) ranging from 13 to 58 ppm/°C along different axes, maintaining dimensional stability across various temperature ranges.
2.6 Lead-free process compatibility and 94V-0 flammability, ensuring compliance with industry standards.
Benefits
Rogers RO3203 PCB offer a range of benefits for high-frequency applications:
3.1 Woven glass reinforcement improves rigidity, making the material easier to handle during manufacturing processes.
3.2 Uniform electrical and mechanical performance make these materials suitable for complex multi-layer high-frequency structures.
3.3 Low dielectric loss allows for high-frequency performance in applications exceeding 20 GHz.
3.4Low in-plane expansion coefficient matched to copper, making it compatible with epoxy multi-layer board hybrid designs and facilitating reliable surface-mounted assemblies.
3.5 Excellent dimensional stability ensures high production yields and consistent performance.
3.6 Economically priced, making them cost-effective for volume manufacturing.
3.7 Surface smoothness allows for finer line etching tolerances.
PCB Construction Details

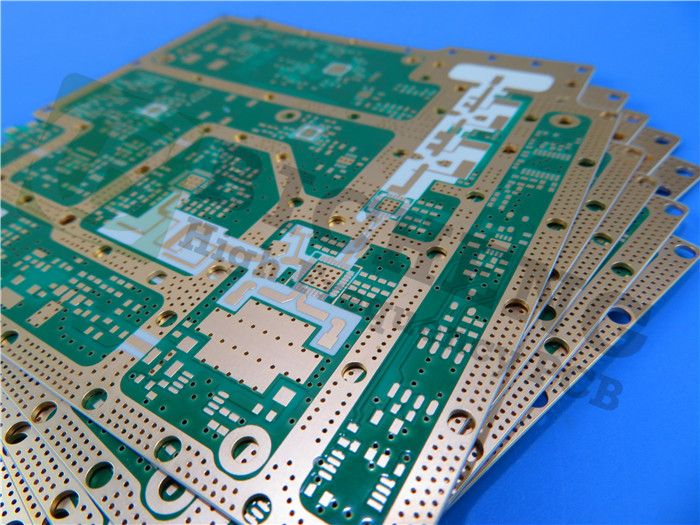

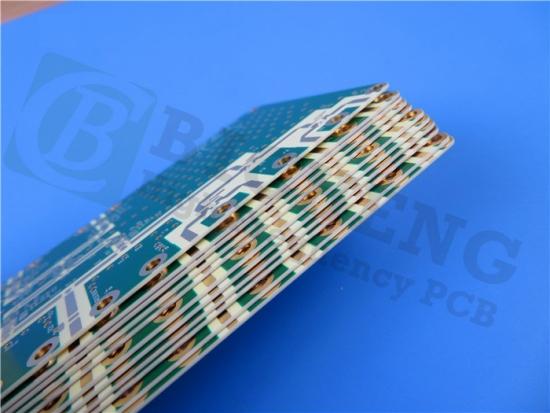

The Rogers 3203 PCB Board is a2-layer rigid board with the following specifications:
Parameter |
Value |
Board dimensions |
65.78mm x 37.48mm (1PCS) |
Minimum Trace/Space |
5/5 mils |
Minimum Hole Size |
0.4mm |
Blind vias |
No |
Finished board thickness |
0.6mm |
Finished Cu weight |
1 oz (1.4 mils) outer layers |
Via plating thickness |
20 μm |
Surface finish |
Immersion Tin |
Top Silkscreen |
White |
Bottom Silkscreen |
No |
Top Solder Mask |
Green |
Bottom Solder Mask |
No |
Electrical test |
100% prior to shipment |
PCB Statistics
The RO3203 20mil Rogers PCB consists of 10 components and offers the following statistics:
Parameter |
Value |
Components |
10 |
Total Pads |
34 |
Thru Hole Pads |
19 |
Top SMT Pads |
15 |
Bottom SMT Pads |
0 |
Vias |
29 |
Nets |
2 |
Accepted Standards and Availability
The PCB complies with IPC-Class-2 standards, guaranteeing high-quality manufacturing and performance. It is available worldwide, ensuring accessibility for customers across different regions.
Typical Applications
RO3203 High Frequency Circuit Materials find applications in various industries, including:
Automotive collision avoidance systems
Automotive global positioning satellite antennas
Wireless telecommunications systems
Microstrip patch antennas for wireless communications
Direct broadcast satellites
Datalink on cable systems
Power backplanes
LMDS and wireless broadband
Base station infrastructure
Conclusion
In conclusion, RO3203 High Frequency PCB offer exceptional performance and mechanical stability for high-frequency applications. With their unique features, benefits, and high-quality construction, these materials provide a reliable and cost-effective solution for a wide range of industries applications.
