RO3210 PCB 2-layer 25mil 0.635mm Rogers 3210 Substrate High Frequency Circuit Board

RO3210 PCB 2-layer 25mil 0.635mm Rogers 3210 Substrate High Frequency Circuit Board

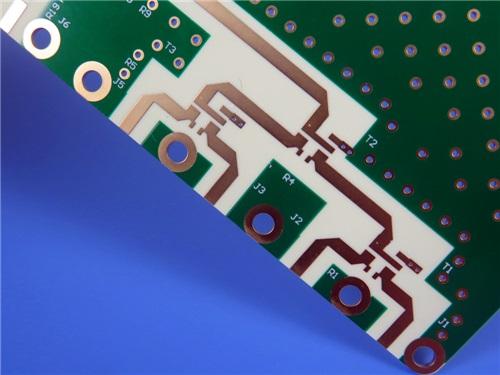

The RO3210 25mil PCB is a high-performance printed circuit board designed for demanding high-frequency applications. Engineered with Rogers RO3210 high-frequency laminate, this PCB offers a unique combination of electrical performance, mechanical stability, and thermal reliability. Whether you're designing automotive collision avoidance systems, wireless telecommunications infrastructure, or satellite antennas, the Rogers 3210 PCB is the ideal solution for your high-frequency needs.

Introduction to RO3210 Material

Rogers RO3210 is a ceramic-filled, woven fiberglass-reinforced laminate specifically designed for high-frequency applications. It combines the surface smoothness of non-woven PTFE laminates with the rigidity of woven-glass PTFE laminates, making it a versatile material for advanced PCB designs. The RO3210 laminate is compatible with standard PTFE circuit board processing techniques, ensuring ease of fabrication and high production yields.

With its exceptional electrical properties and mechanical stability, the RO3210 25mil Rogers substrate PCB is perfect for applications requiring precise signal integrity, thermal management, and dimensional stability.

Key Features

1)Dielectric Constant (Dk): 10.2 +/- 0.5

Ensures consistent signal propagation and impedance control, critical for high-frequency designs.

2)Low Dissipation Factor: 0.0027 at 10GHz

Minimizes signal loss, making it ideal for high-speed and high-frequency applications.

3)Thermal Conductivity: 0.81W/mk

Provides efficient heat dissipation, enhancing the reliability of high-power applications.

4)Coefficient of Thermal Expansion (CTE) Matched to Copper

X-Y: 13 ppm/°C, Z: 34 ppm/°C

Reduces the risk of delamination and ensures reliable surface-mounted assemblies.

5)High Decomposition Temperature (Td): 500°C

Ensures thermal stability during assembly and operation.

6)Flammability Rating: V0 (UL 94 Standard)

Meets stringent safety requirements for industrial and automotive applications.

7)Surface Smoothness

Enables finer line etching tolerances, supporting high-density designs.

8)Woven Glass Reinforcement

Improves rigidity for easier handling and assembly.

Benefits of RO3210 25mil PCB

1.Exceptional Electrical Performance

The RO3210 PCB delivers uniform electrical performance, making it suitable for complex multi-layer high-frequency structures. Its low dissipation factor ensures minimal signal loss, while the stable dielectric constant guarantees consistent impedance control.

2.Mechanical Stability

The woven glass reinforcement enhances the PCB's rigidity, simplifying handling during assembly. Its excellent dimensional stability ensures high production yields and reliable performance in demanding environments.

3.Thermal Reliability

With a thermal conductivity of 0.81W/mk and a CTE matched to copper, the RO3210 25mil PCB offers superior thermal management, reducing the risk of thermal stress and delamination.

4.Versatility

The RO3210 25mil PCB is compatible with hybrid designs, including epoxy multi-layer boards, making it a versatile choice for a wide range of applications.

5.High Production Yields

The combination of surface smoothness, dimensional stability, and ease of fabrication ensures high production yields, reducing costs and lead times.

PCB Stackup

Copper Layer 1: 35μm

Rogers RO3210 Core: 0.635 mm (25mil)

Copper Layer 2: 35μm

PCB Construction Details

PCB Statistics

Quality Standards and Availability

Quality Standard: IPC-Class-2

Ensures high reliability and performance for commercial and industrial applications.

Artwork Format: Gerber RS-274-X

Compatible with standard PCB design software.

Availability: Worldwide

Ready to ship globally to meet your project timelines.

Typical Applications

The RO3210 high frequency PCB is designed for high-frequency applications where performance and reliability are critical. Some typical applications include:

- Automotive collision avoidance systems

- Automotive global positions satellite antennas

- Wireless telecommunications systems

- Microstrip patch antennas for wireless communications

- Direct broadcast satellites

- Datalink on cable systems

- Remote meter readers

- Power backplanes

- LMDS and wireless broadband

- Base station infrastructure

Why Choose RO3210 25mil PCB?

The RO3210 0.635mm Rogers material PCB stands out in the market due to its unique combination of electrical, mechanical, and thermal properties. Its woven glass reinforcement ensures rigidity and ease of handling, while its low CTE and high thermal conductivity provide unmatched reliability in high-temperature environments.

Whether you're designing for automotive, telecommunications, or aerospace applications, the RO3210 25mil PCB offers the performance and reliability you need to stay ahead in the competitive electronics industry.

Conclusion

The RO3210 25mil high frequency laminate PCB is a high-performance solution for advanced high-frequency applications. With its exceptional electrical properties, mechanical stability, and thermal reliability, it is the ideal choice for industries ranging from automotive to telecommunications. Backed by Rogers' cutting-edge RO3210 laminate and stringent quality standards, this PCB ensures superior performance and reliability in even the most demanding environments.

Choose the Rogers RO3210 PCB for your next project and experience the perfect blend of innovation and reliability. Contact us today to learn more or place your order!
