Home Newly Shipped RF PCB RO4350B PCB 2-layer 4mil Rogers 4350B High Frequency Laminate with Immersion Gold

RO4350B PCB 2-layer 4mil Rogers 4350B High Frequency Laminate with Immersion Gold

The RO4350B 4mil PCB is a cutting-edge solution for high-frequency and high-reliability applications.

  • Item NO.:

    BIC-321v397.0
  • Order(MOQ):

    1-10
  • Payment:

    T/T
  • Price Range:1 - 50/$2.9
  • Price Range:1 - 50/$99
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-10 days
  • Product Detail


RO4350B PCB 2-layer 4mil Rogers 4350B High Frequency Laminate with Immersion Gold



Introduction

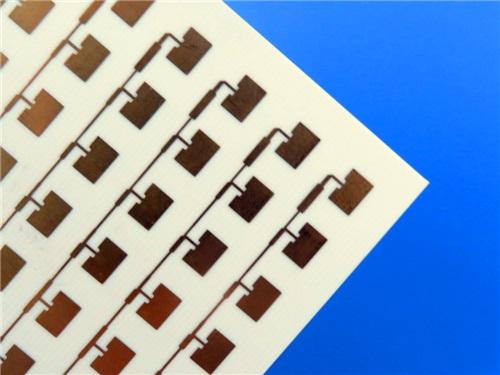

The 4mil RO4350B PCB is a high-performance, rigid printed circuit board designed for advanced RF and microwave applications. Manufactured using Rogers Corporation's proprietary RO4350B laminate, this PCB offers exceptional electrical performance, thermal stability, and cost-effectiveness. Rogers 4350B dielectric constant With 3.48 ±0.05 at 10 GHz/23°C and a low dissipation factor of 0.0037, the Rogers RO4350B PCB is engineered to meet the demanding requirements of modern wireless communication systems, automotive radar, and satellite technologies.



The Rogers 4350B material combines the electrical performance of PTFE/woven glass with the manufacturability of epoxy/glass, making it an ideal choice for multi-layer board (MLB) constructions. Its thermal coefficient of expansion (CTE) closely matches that of copper, ensuring excellent dimensional stability and reliable plated through-hole quality, even in severe thermal shock environments. With a high glass transition temperature (Tg) of >280°C and low water absorption of 0.06%, this PCB is built to withstand harsh operating conditions while maintaining consistent performance.



Key Features

1.Superior Electrical Performance


  • Dielectric Constant (Dk): 3.48 ±0.05 at 10 GHz/23°C
  • Dissipation Factor (Df): 0.0037 at 10 GHz/23°C
  • Low signal loss and high signal integrity for RF and microwave applications.




2.Excellent Thermal Properties


  • Thermal Conductivity: 0.69 W/m/°K
  • CTE: X-axis: 10 ppm/°C, Y-axis: 12 ppm/°C, Z-axis: 32 ppm/°C
  • High Tg of >280°C ensures stability across a wide temperature range.




3.Robust Mechanical Properties


  • Low water absorption: 0.06%
  • Excellent dimensional stability for multi-layer constructions.
  • Compatible with standard FR-4 processing methods, reducing fabrication costs.


 RO4350B PCB 2-layer 4mil


Why Choose RO4350B PCB?

1.Cost-Effective Solution:

Processes like FR-4, reducing fabrication costs without compromising performance.



2.Ideal for Multi-Layer Boards:

Excellent dimensional stability and CTE matching enable reliable MLB constructions.



3.High-Frequency Performance:

Low loss and tight Dk control make it perfect for RF and microwave applications.



4.Thermal Reliability:

High Tg and low Z-axis CTE ensure durability in high-power and high-temperature environments.



PCB Stackup:  2-layer rigid PCB

Copper_layer_1 - 35 μm

Rogers RO4350B Core - 0.102 mm (4mil)

Copper_layer_2 - 35 μm



PCB Construction details



Parameter

Value

Board Dimensions

340 mm x 340 mm = 1PCS,  ±0.15 mm

Minimum Trace/Space

4/5 mils

Minimum Hole Size

0.25 mm

Blind Vias

No

Finished Board Thickness

0.2 mm

Finished Cu Weight

1 oz (1.4 mils) outer layers

Via Plating Thickness

20 μm

Surface Finish

Immersion Gold

Top Silkscreen

No

Bottom Silkscreen

No

Top Solder Mask

No

Bottom Solder Mask

No

Electrical Testing

100% tested prior to shipment





PCB Statistics



Parameter

Value

Components

16

Total Pads

60

Thru Hole Pads

38

Top SMT Pads

22

Bottom SMT Pads

0

Vias

32

Nets

2



Applications

The RO4350B 4mil Rogers substrate PCB is designed for high-frequency applications where performance and reliability are critical. Some typical use cases include:



- Cellular Base Station Antennas and Power Amplifiers

- RF Identification Tags

- Automotive Radar and Sensors

- LNB's for Direct Broadcast Satellites



Conclusion

The RO4350B substrate  4mil PCB is a cutting-edge solution for high-frequency and high-reliability applications. With its superior electrical performance, thermal stability, and cost-effective manufacturing process, this Rogers PCB is the ideal choice for industries ranging from telecommunications to automotive and aerospace. Whether you're designing cellular base stations, automotive radar systems, or satellite communication devices, the RO4350B high frequency PCB delivers unmatched performance and reliability.



For more information or to place an order, contact us today and experience the benefits of this advanced Rogers 4350B PCB technology.
