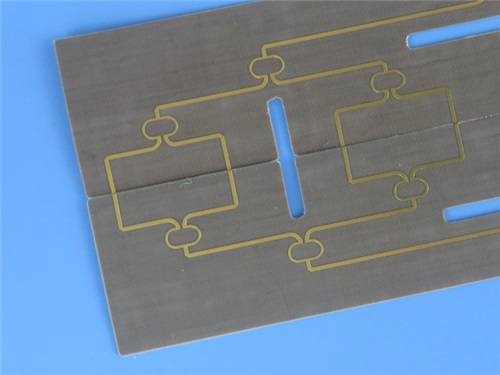

Rogers CLTE-XT PCB 2-layer 5.1mil 0.129 mm Immersion Gold 35μm Finished Copper

Rogers CLTE-XT PCB 2-layer 5.1mil 0.129 mm Immersion Gold 35μm Finished Copper

Introduction

Engineered with Rogers CLTE-XT laminate—an advanced composite of micro-dispersed ceramic filler, PTFE, and woven fiberglass reinforcement—our 2-layer 5.1 mil PCB redefines performance for high-end electronic systems. This laminate is specifically designed to deliver ultra-low insertion loss while maintaining industry-leading dimensional stability, building on the proven reliability of the CLTE series PCB substrate with enhanced performance consistency across wider temperature ranges. Whether for precision communication, automotive advanced systems, or radar technology, this Rogers CLTE-XT PCB is engineered to meet the most stringent requirements of modern high-frequency applications.

PCB Construction Details

Below is a comprehensive table outlining the core structural and manufacturing parameters of the PCB, ensuring clarity for design and production planning.

PCB Stackup

The 2-layer rigid PCB features a precisely calibrated stackup to optimize signal integrity, detailed in the table below.

PCB Statistics

This table summarizes key assembly-related metrics, providing critical data for component integration and production efficiency.

Core Performance Features

At 10GHz, 23°C, and 50% relative humidity, this CLTE-XT PCB delivers exceptional electrical performance: a dielectric constant (DK) of 2.79–2.94 with an industry-leading tight tolerance of±0.03, ensuring consistent signal propagation across batches.

The dissipation factor is an ultra-low 0.0010, minimizing circuit losses in high-frequency operations.

Physically, it boasts superior stability with X/Y-axis CTE of 12.7/13.7 ppm/°C and Z-axis CTE of 40.8 ppm/°C, while its glass transition temperature (Td) of 539°C and moisture absorption of just 0.02% guarantee reliability in extreme thermal and humid environments. Additionally, a dielectric constant temperature coefficient of -8 ppm/°C ensures performance stability as operating temperatures fluctuate.

Key Benefits

1) Enhanced Reliability: Premium via plating ensures long-term plated through-hole (PTH) integrity, reducing field failures.

2) Batch Consistency: Repeatable lot-to-lot performance simplifies mass production and quality control.

3) Balanced Performance: Low circuit losses are achieved without compromising dimensional stability, a critical advantage for high-precision designs.

4) System Compatibility: Stable dielectric constant across temperatures reduces mechanical stress when integrated with ceramic active devices, boosting overall system reliability.

Typical Applications

This CLTE-XT high frequency PCB is the ideal choice for:

• Advanced Driver Assistance Systems (ADAS)
• Patch antennas, phased array antennas, power amplifiers
• Ground-based/airborne communications and radar systems—where signal integrity, temperature resilience, and dimensional stability are non-negotiable.

Additional Information

• Artwork Format: Gerber RS-274-X
• Quality Standard: Compliant with IPC-Class-2
• Availability: Worldwide shipping

Conclusion

This PCB is more than a component; it's a platform for innovation. If you are designing systems that demand the utmost in high-frequency performance, miniaturization, and reliability, this 5.1 mil CLTE-XT board is your answer. Contact our sales team today to discuss how this product can be integrated into your next groundbreaking project.
