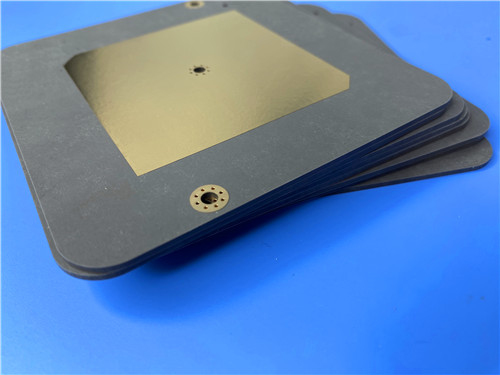

RT/duroid 5880 PCB 2-layer 62mil 1.575mm Rogers 5880 ENIG Bare Copper Custom Board

RT/duroid 5880 PCB 2-layer 62mil 1.575mm Rogers 5880 ENIG Bare Copper Custom Board

Designed for mission-critical high-frequency applications,the 2-layer RT/duroid 5880 PCB combines Rogers’industry-leading laminate technology with precision manufacturing to deliver unmatched electrical integrity and durability. Engineered to IPC-Class-2 standards with 100% pre-shipment electrical testing, this immersion gold-finished PCB excels in demanding environments—from aerospace systems to millimeter-wave technology—where signal stability and long-term reliability are non-negotiable. Below is a structured breakdown of its technical specifications, material advantages, and application capabilities.

PCB Construction Details

The following table outlines the core manufacturing parameters that define the Rogers 5880 PCB’ s performance, quality, and compatibility with high-frequency design requirements:

PCB Stackup

Optimized for high-frequency signal integrity, the 2-layer stackup features precisely calibrated material thicknesses to minimize signal loss and maintain dielectric uniformity:

PCB Statistics

Key design metrics reflect the 62 mil RT/duroid 5880 PCB’ s balanced component layout and connectivity, tailored for high-frequency application efficiency:

About RT/duroid 5880 Laminate

At the core of this PCB is Rogers RT/duroid 5880, a premium high-frequency laminate engineered for exacting stripline and microstrip circuits. Its randomly oriented glass microfibers ensure exceptional dielectric constant uniformity—consistent across panels and stable over a wide frequency range—while its ultra-low dissipation factor (0.0009 at 10GHz) extends usability to Ku-band and millimeter-wave frequencies. The material is highly machinable (easily cut, sheared, and shaped) and resistant to all solvents/reagents used in PCB etching or plating, ensuring durability through manufacturing and operational lifecycles.

Core Features

• Dielectric constant: 2.2±0.02 at 10GHz/23°C (uniform and stable)
• Ultra-low dissipation factor: 0.0009 at 10GHz (minimizes signal loss)
• Temperature coefficient of dielectric constant (TCDk): -125 ppm/°C
• Minimal moisture absorption: 0.02% (ideal for humid environments)
• Controlled CTE: 31 ppm/°C (X-axis), 48 ppm/°C (Y-axis), 237 ppm/°C (Z-axis)
• Thermal stability: Td 500°C TGA, UL 94-V0 flammability rating
• Lead-free process compatible and isotropic properties

Key Benefits

• Uniform electrical performance across wide frequency ranges, ensuring reliable signal transmission
• Easy customization via cutting, shearing, and machining
• Resistance to harsh solvents/reagents used in PCB manufacturing
• Superior reliability in high-moisture environments
• Proven, well-established material with industry-proven performance
• Lowest electrical loss among reinforced PTFE laminates (critical for high-frequency systems)

Typical Applications

This RT/duroid 5880 high frequency PCB is engineered for mission-critical use cases, including:

• Commercial airline broadband antennas
• Microstrip and stripline circuits
• Millimeter wave systems
• Radar and guidance systems
• Point-to-point digital radio antennas

Quality & Accessibility

Manufactured to IPC-Class-2 standards, the duroid 5880 PCB adheres to strict reliability benchmarks. It supports Gerber RS-274-X artwork files (compatible with standard design workflows) and is available worldwide, catering to both prototype and volume production needs. Its lead-free compatibility aligns with global environmental regulations, making it a sustainable choice for international projects.

Whether you’re developing next-generation aerospace technology or high-performance telecommunications systems, this RT/duroid 5880 PCB delivers the precision, durability, and signal integrity required to push the boundaries of high-frequency design. For customizations, technical support, or volume pricing inquiries, feel free to connect with our sales team.
