RT/duroid 5880 PCB 2-layer Rogers 5880 15mil Thick Immersion Gold Green Solder Mask

RT/duroid 5880 PCB 2-layer Rogers 588015mil Thick Immersion Gold Green Solder Mask

Introduction

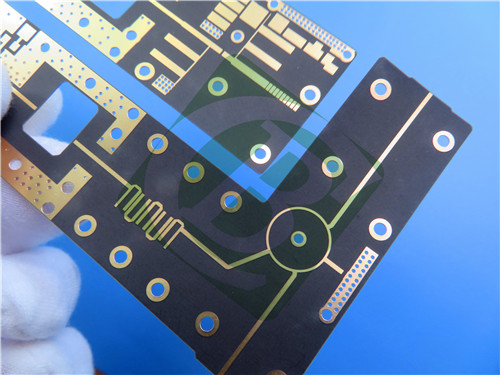

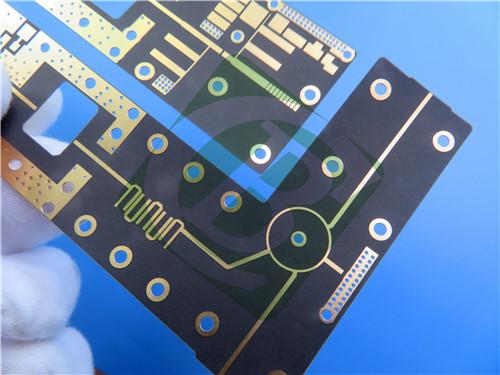

The RT/duroid 5880 2-Layer PCB is a high-frequency laminate designed for demanding RF and microwave applications. Engineered with Rogers’advanced PTFE-based material, this Rogers 5880 PCB offers exceptional electrical performance, low signal loss, and outstanding dielectric stability across a wide frequency range. With a 0.45mm finished thickness, immersion gold surface finish, and IPC-Class-2 compliance, this PCB is ideal for aerospace, radar, and millimeter-wave applications.

This duroid 5880 PCB is manufactured to IPC-Class-2 standards, undergoes 100% electrical testing, and is available for worldwide shipping. Below, we provide a detailed breakdown of the construction, stackup, statistics, and key benefits of this high-performance PCB.

PCB Construction Details

PCB Stackup

The RT duroid 5880 board follows a simple yet high-performance 2-layer stackup optimized for RF applications.

PCB Statistics

The duroid 5880 board contains 38 components, 147 pads, and 55 vias, optimized for high-frequency signal integrity.

Additional Technical Specifications

Type of Artwork Supplied

-Gerber RS-274-X format (industry-standard for PCB fabrication)

Accepted Standard

-IPC-Class-2 (suitable for high-reliability commercial and industrial applications)

Availability

-Worldwide shipping with reliable logistics support

Introduction to RT/duroid 5880

RT/duroid 5880 is a PTFE (Teflon) composite reinforced with glass microfibers, designed for high-frequency stripline and microstrip circuits. Its uniform dielectric constant (2.2±0.02) and ultra-low dissipation factor (0.0009 at 10GHz) make it ideal for Ku-band and millimeter-wave applications.

Key Features

• Dielectric Constant (Dk): 2.2±0.02 @ 10GHz/23°C
• Dissipation Factor (Df): 0.0009 @ 10GHz
• Temperature Coefficient of Dk (TCDk): -125 ppm/°C
• Moisture Absorption: 0.02% (excellent for humid environments)
• CTE (Coefficient of Thermal Expansion):
• X-axis: 31 ppm/°C
• Y-axis: 48 ppm/°C
• Z-axis: 237 ppm/°C
• Thermal Decomposition (Td): 500°C (TGA)
• Flame Rating: UL 94-V0 (self-extinguishing)
• Lead-Free Process Compatible
• Isotropic Properties (uniform performance in all directions)

Benefits of RT/duroid 5880

✔Exceptional Signal Integrity–Low loss and stable Dk ensure minimal signal distortion.

✔Wide Frequency Range–Suitable for microwave, RF, and millimeter-wave applications.

✔Machinability–Easily cut, drilled, and shaped without delamination.

✔Chemical Resistance–Withstands harsh etching and plating processes.

✔Moisture Resistance–Ideal for high-humidity environments.

✔Proven Reliability–Widely used in aerospace, defense, and telecom.

Typical Applications

Due to its superior high-frequency performance, the RT/duroid 5880 PCB is used in:

• Commercial Airline Broadband Antennas
• Microstrip & Stripline Circuits
• Millimeter-Wave Applications (5G, Satcom)
• Radar Systems (Military & Civilian)
• Guidance & Avionics Systems
• Point-to-Point Digital Radio Antennas

Conclusion

The RT/duroid 5880 high frequency PCB is a high-performance, ultra-low-loss solution for RF and microwave applications. With immersion gold finish, tight tolerances, and Rogers’premium material, it ensures reliability, signal integrity, and long-term durability. Whether for aerospace, defense, or telecom, this PCB delivers exceptional electrical and mechanical performance.

For worldwide availability and IPC-Class-2 compliance, this 15 mil RT/duroid 5880 substrate PCB is an excellent choice for engineers requiring high-frequency stability and low-loss signal transmission.
