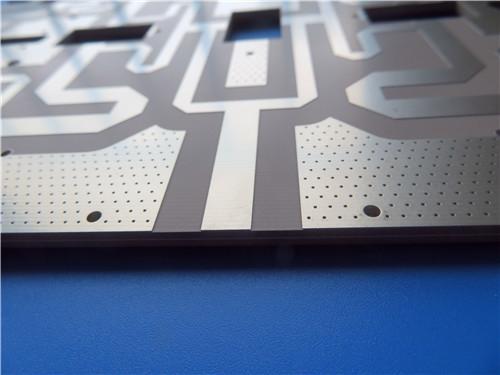

RT/duroid 6010.2LM PCB 2-layer 75mil 1.905 mm Rogers 6010.2LM Immersion Silver White Silkscreen

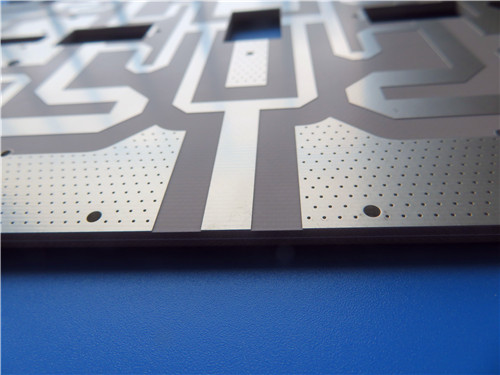

RT/duroid 6010.2LM PCB 2-layer 75mil 1.905 mm Rogers 6010.2LM Immersion Silver White Silkscreen

Introduction

Engineered for demanding microwave, RF, and high-frequency electronic systems, the 2-layer RT/duroid 6010.2LM PCB redefines performance standards with its exceptional dielectric properties, tight manufacturing tolerances, and reliability. Built on Rogers’ premium ceramic-PTFE composite laminate—optimized for high dielectric constant (Dk) and low loss—this 75mil Rogers PCB delivers repeatable circuit performance, space efficiency, and durability, making it the ideal choice for critical applications from satellite communications to radar systems. Compliant with IPC-Class-2 quality standards and backed by 100% electrical testing prior to shipment, it ensures seamless integration and long-term operational stability.

PCB Construction Details

The following table outlines the Rogers duroid PCB’s precise construction parameters, designed to balance mechanical robustness and electrical performance:

PCB Stackup

Optimized for signal integrity and thermal stability, the 2-layer stackup features consistent material thicknesses for uniform performance:

PCB Statistics

The following metrics detail the Rogers 6010.2LM PCB’s layout and interconnect design, supporting efficient assembly and component integration:

Core Material & Performance Advantages

RT/duroid 6010.2LM is a ceramic-PTFE composite engineered for high-frequency applications, offering:

Key Features: Dk of 10.2±0.25 (10GHz), dissipation factor of 0.0023 (10GHz), decomposition temperature (Td) of 500°C, moisture absorption of 0.01%, thermal conductivity of 0.86W/mk, and UL94 V-0 flammability rating. Its CTE (x/y/z: 24/24/47 ppm/°C) ensures dimensional stability under temperature fluctuations.

Critical Benefits: High Dk enables up to 40% circuit size reduction vs. lower-Dk materials; low loss guarantees signal integrity at X-band (8-12GHz) and below; minimal Z-axis expansion ensures reliable plated through-holes; ultra-low moisture absorption eliminates performance degradation in humid environments; and tight Dk/thickness control delivers consistent results across production runs.

Typical Applications

This DK10.2 PCB is purpose-built for mission-critical systems, including:

- Patch Antennas

- Satellite Communications Systems

- Power Amplifiers

- Aircraft Collision Avoidance Systems

- Ground Radar Warning Systems

Technical & Logistics Specifications

Artwork Format: Gerber RS-274-X (industry-standard for compatibility)

Quality Standard: IPC-Class-2 (meets rigorous electronic assembly requirements)

Availability: Worldwide shipping with flexible order quantities

Why Choose This PCB?

Combining Rogers’ premium RT/duroid 6010.2LM material with precision manufacturing, this  RT/duroid 6010.2LM high frequency PCB delivers the perfect balance of performance, size, and reliability for high-frequency applications. Whether you’re designing compact antennas or rugged aerospace systems, it eliminates trade-offs between size, signal quality, and durability—backed by 100% electrical testing and global availability to meet your project timelines.
