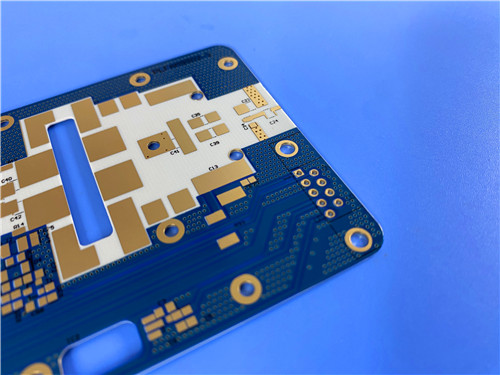

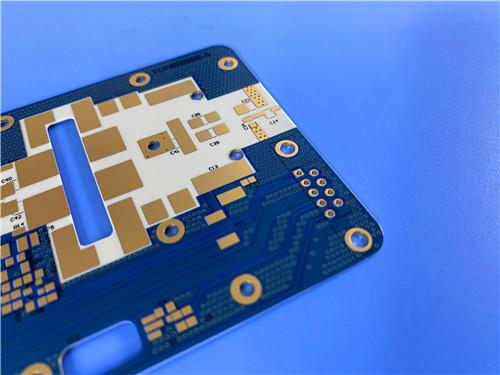

Taconic RF-60A PCB 2-layer 25mil 0.635mm Laminate ENIG DK6.15 RF Board

Taconic RF-60A PCB 2-layer 25mil 0.635mm Laminate ENIG DK6.15 RF Board

Introduction

The RF-60A PCB is a high-performance 2-layer rigid printed circuit board designed for demanding RF and microwave applications. Manufactured using Taconic RF-60A laminate, this PCB offers superior electrical stability, excellent thermal performance, and outstanding mechanical strength. With a dielectric constant DK6.15 PCB and an ultra-low dissipation factor (Df) of 0.0038, this board is ideal for high-frequency circuits, power amplifiers, filters, and antennas.

This product description provides a comprehensive technical breakdown, including PCB construction details, stackup, material properties, and key benefits to help engineers and procurement specialists make informed decisions.

PCB Construction Details

Below is a detailed summary of the 25mil RF-60A PCB’s construction, followed by a structured table for quick reference.

PCB Stackup: 2-Layer Rigid PCB

The stackup structure of the RF-60A substrate PCB ensures optimal signal integrity and mechanical stability.

PCB Statistics

The following table summarizes the component and connectivity details of the RF-60A Taconic Substrate PCB.

Additional Specifications

• Artwork Format: Gerber RS-274-X
• Quality Standard: IPC-Class-2
• Availability: Worldwide

RF-60A Laminate: Key Features & Benefits

Material Introduction

RF-60A is an organic-ceramic laminate from Taconic’s ORCER series, combining woven glass reinforcement with PTFE-based ceramic fill technology. It delivers exceptional electrical stability, thermal resistance, and mechanical strength, making it ideal for high-frequency RF applications.

Key Features

Benefits

✔RoHS & WEEE compliant–Environmentally friendly

✔Exceptional interlaminar bond strength–Enhanced durability

✔Low moisture absorption–Reliable in humid conditions

✔Stable Dk over frequency–Consistent RF performance

✔Low Z-axis expansion–Reliable PTH in thermal cycling

✔Increased flexural strength–Resists mechanical stress

Typical Applications

The RF-60A 25mil High Frequency PCB is widely used in high-frequency and RF/microwave applications, including:

• Power Amplifiers
• Filters & Couplers
• Miniaturized Antennas
• Passive Components

Conclusion

The RF-60A 2-layer 25mil PCB is a high-performance, high-frequency circuit board designed for reliability, signal integrity, and thermal stability. With its advanced RF-60A Taconic PCB laminate, strict IPC-Class-2 compliance, and robust construction, it is an excellent choice for RF engineers and high-speed digital designers.

For global availability and customization options, contact our sales team for further details!
