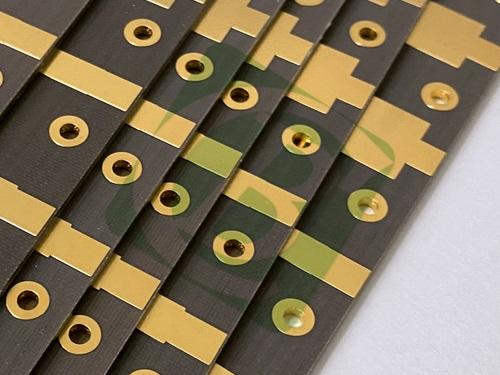

TLY-3 2-layer 20mil 0.508mm Silver Gold Plate Taconic RF PCB Circuit Board

TLY-3 2-layer 20mil 0.508mm Silver Gold Plate Taconic RF PCB Circuit Board

The TLY-3 2-Layer 20 mil Silver-Gold PCB is a cutting-edge printed circuit board tailored for high-frequency, high-reliability applications. Built on premium Taconic TLY-3 laminates, it combines exceptional dimensional stability, ultra-low dielectric loss, and robust manufacturing compatibility, making it an ideal choice for automotive radar, satellite communications, and aerospace systems. Below is a detailed breakdown of its specifications, structure, and core advantages.

1. PCB Construction Details

This table outlines the core structural and manufacturing parameters of the TLY-3 2-Layer PCB, covering material selection, dimensional tolerances, and quality control measures.

2. PCB Stackup

The stackup structure of this 2-layer rigid PCB ensures uniform signal transmission and mechanical stability, optimized for high-frequency performance.

3. PCB Statistics

This table summarizes the component and connectivity metrics, reflecting the board's layout efficiency and functional density.

4. Core Material: TLY-3 Laminate Advantage

The 20 mil TLY-3 substrates at the heart of this Taconic RF PCB are manufactured with lightweight woven fiberglass, delivering far superior dimensional stability compared to chopped fiber-reinforced PTFE composites. The woven matrix ensures mechanical stability, enabling high-volume manufacturing with exceptional yields. A standout feature is its ultra-low dissipation factor, which supports seamless operation in 77GHz automotive radar systems and other millimeter-wave antennas.

Comparative OEM testing at 77GHz confirms that TLY-3 matches the insertion loss and dielectric properties of competing chopped fiber materials—while offering significantly higher manufacturing yields. Its dielectric constant (Dk) ranges from 2.17 to 2.40, with a tight tolerance of±0.02 for most thicknesses. At 10GHz, the dissipation factor (Df) is as low as 0.0009, making it a top choice for high-frequency precision applications.

5. Key Technical Features

• Dielectric Constant: 2.33±0.02 at 10GHz (uniform and consistent)
• Dissipation Factor: 0.0012 at 10GHz (ultra-low loss)
• Thermal Conductivity: 0.22 W/mk (Unclad)
• CTE (Coefficient of Thermal Expansion): x=26 ppm/°C, y=15 ppm/°C, z=217 ppm/°C
• Peel Strength: 0.5oz (11 lbs/in), 1oz (17 lbs/in)
• Moisture Absorption: 0.02% (ultra-low, ensuring reliability in harsh environments)
• Flammability Rating: V-0 (high safety standard)
• Outgassing: TML 0.01%, CVCM 0.01%, WVR 0.01% (suitable for aerospace applications)

6. Customer-Centric Benefits

• Dimensional Stability: Woven fiberglass structure minimizes warpage, ensuring compatibility with high-volume assembly.
• Lowest Df: Reduces signal attenuation, critical for high-frequency (77GHz+) applications like automotive radar.
• High Peel Strength: Enhances copper-to-substrate adhesion, improving long-term reliability.
• Low Moisture Absorption: Prevents performance degradation in humid or harsh environments.
• Uniform Dk: Ensures consistent signal propagation, optimizing circuit performance.
• Laser Ablatable: Facilitates precise manufacturing of fine features.

7. Target Applications

This Taconic TLY-3 PCB is the ideal solution for a wide range of cutting-edge technologies:

• Automotive Radar: Ideal for 77GHz systems, leveraging low Df and dimensional stability.
• Satellite/Cellular Communications: Reliable performance in high-frequency bands.
• Power Amplifiers: Supports efficient signal transmission with minimal loss.
• LNBs, LNAs, LNCs: Optimized for low-noise, high-precision signal processing.
• Aerospace: Meets strict outgassing and environmental resistance requirements.
• Ka, E and W Band Applications: Excels in high-frequency communication systems.

 8. Quality & Availability

• Quality Standard: Complies with IPC-Class-2, ensuring consistent performance and reliability.
• Artwork Type: Gerber RS-274-X (industry-standard format for seamless manufacturing).
• Availability: Worldwide supply, supporting global production needs.

The TLY-3 Taconic High Frequency PCB is engineered to bridge the gap between high-frequency performance and manufacturing efficiency. Its advanced material properties and precise specifications make it a trusted solution for industries demanding uncompromised reliability and signal integrity.
