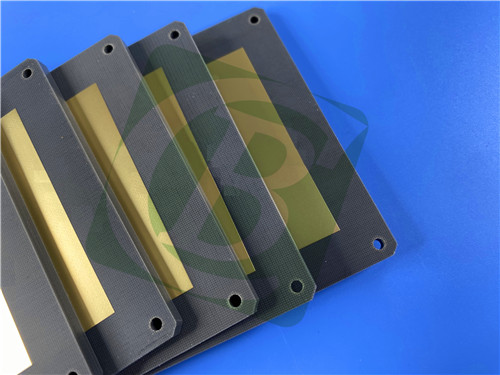

Wangling F4BTMS255 PCB 2-layer 60mil 1.524mm Thick F4BTMS Series Substrates Immersion Gold

Wangling F4BTMS255 PCB 2-layer 60mil 1.524mm Thick F4BTMS Series Substrates Immersion Gold

Introduction

The F4BTMS255 2-layer rigid PCB represents a leap in high-performance circuit board technology, built around the upgraded F4BTMS PCB material series—an innovation that resolves key pain points in demanding applications. Unlike standard PCBs, it integrates nano-ceramic enrichment and ultra-fine glass fiber reinforcement to minimize electromagnetic (EM) wave interference, reduce dielectric loss, and ensure stability across extreme temperatures.

F4BTMS Material: The Foundation of Superior Performance

The F4BTMS PCB series is an advanced upgrade of the F4BTM PCB line, engineered via breakthroughs in material formulation and production. Its core advantages include:

1) Enhanced Composition: A blend of polytetrafluoroethylene (PTFE) resin, high-load uniformly distributed nano-ceramics, and ultra-thin/ultra-fine glass fiber cloth minimizes the negative impact of glass fiber on EM wave propagation—critical for RF/microwave signals.

2) Key Benefits: Reduced dielectric loss, improved dimensional stability, lower X/Y/Z anisotropy, and an expanded usable frequency range. It also features a low thermal expansion coefficient (CTE) and stable dielectric temperature characteristics.

3) Standard RTF Copper Foil: Equipped with Reverse Treating Foil (RTF) for low conductor loss and excellent peel strength, compatible with both copper and aluminum bases—ideal for high-power or weight-sensitive designs.

1. PCB Construction Details

Below is a comprehensive breakdown of the F4BTMS255 PCB’s physical and manufacturing specifications, including finish, testing, and dimensional controls to ensure consistency and performance.

2. PCB Stackup

The 2-layer stackup is optimized for signal clarity and thermal efficiency, leveraging the F4BTMS255 PCB core’s dielectric properties to maintain signal integrity.

3. PCB Statistics

This table outlines the F4BTMS255 Wangling PCB’s component density and pad/via configuration, critical for assembly planning and compatibility with SMT/thru-hole components.

Key Electrical & Thermal Features of F4BTMS255

The PCB’s performance is defined by the F4BTMS255 material ’s industry-leading specs, making it ideal for high-frequency and extreme-environment applications:

1) Dielectric Constant (Dk): 2.55±0.04 at 10GHz (low, stable Dk minimizes signal delay).

2) Dissipation Factor (Df): 0.0012 at 10GHz, 0.0013 at 20GHz (ultra-low loss for high-frequency signals).

3) Thermal Stability: CTE (Coefficient of Thermal Expansion) of 15 ppm/°C (x-axis), 20 ppm/°C (y-axis), 80 ppm/°C (z-axis) across -55°C to 288°C—prevents warping in temperature swings.

4) Low Dk Temperature Coefficient: -92 ppm/°C from -55°C to 150°C (ensures consistent signal performance in harsh environments).

5) Safety & Durability: UL-94 V0 flammability rating and 0.025% moisture absorption (resists corrosion and reliability risks in humid conditions).

Typical Applications

The F4BTMS255 60 mil PCB is engineered for industries where failure is not an option, including:

- Aerospace equipment, space and cabin equipment

- Microwave, RF

- Radar, military radar

- Feed networks

- Phase-sensitive antennas, phased array antennas

- Satellite communications, and more.

Quality & Availability

Quality Standard: Complies with IPC-Class 2 (meets rigid performance requirements for industrial/aerospace use).

Artwork Format: Gerber RS-274-X (industry-standard for seamless manufacturing).

Global Availability: Shipped worldwide, with consistent lead times for bulk or custom orders.

Conclusion

The F4BTMS255 high frequency PCB is more than a circuit board—it’s a high-reliability solution for applications where precision, durability, and signal integrity are non-negotiable. By combining the advanced F4BTMS material with strict manufacturing controls, it outperforms foreign equivalents while supporting global supply chains. Whether for aerospace, radar, or satellite comms, this high frequency PCB delivers the stability and performance needed to power next-generation technology.
