The Wangling TP440 PCB 0.8mm offers a cutting-edge high-frequency thermoplastic solution that combines excellent electrical performance, reliable dielectric control, and remarkable reliability.
Item NO.:
BIC-287-v356.0Order(MOQ):
1-10Payment:
T/TProduct Origin:
ChinaShipping Port:
ShenzhenLead Time:
7-10 days

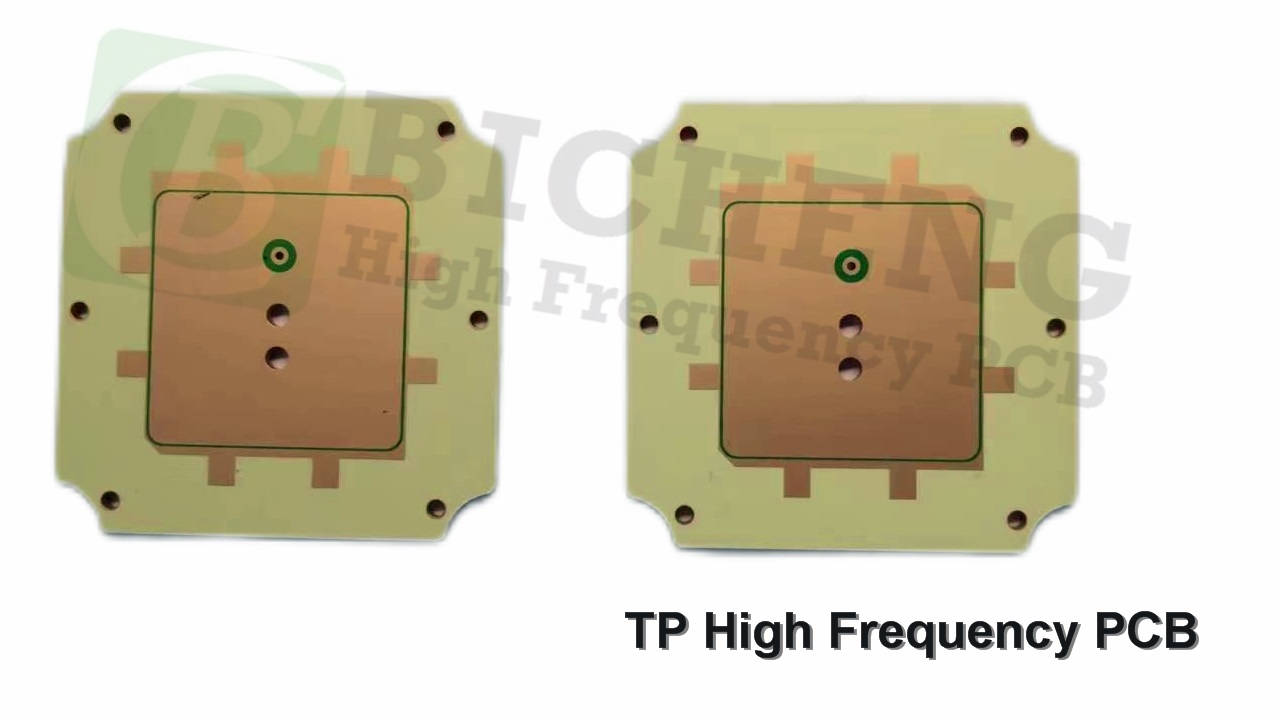

Wangling TP440 PCB 2-layer 0.8mm High FrequencyTP DK 4.4 Material
The Wangling TP440 PCB 0.8mm is a cutting-edge high-frequency thermoplastic material designed for advanced circuitry. With its unique composition and exceptional performance characteristics, TP440 is the ideal choice for applications that demand high reliability, precise dielectric control, and excellent electrical performance. This comprehensive product description will provide you with a deep and informative overview of theTP440 PCB.
Introduction of Wangling TP
The TP material represents a groundbreaking development in the industry, offering a high-frequency thermoplastic solution that is unparalleled in its capabilities. Unlike traditional laminates, the dielectric layer of TP-type laminates is composed of ceramics and polyphenylene Oxide resin (PPO) without fiberglass reinforcement. This specially engineered composition allows for superior dielectric performance and remarkable reliability. The TP series PCB encompasses TP, TP-1, and TP-2, with variations in copper cladding on one or both sides.
Features
2.1 Precisely Adjustable Dielectric Constant:
The dielectric constant of TP440 can be customized within the range of 3 to 25, ensuring precise control based on circuit requirements. The dielectric constant remains stable, even at high frequencies, making it suitable for a wide range of applications up to 10 GHz.
2.2 Wide Temperature Range:
TP440 can operate reliably in temperatures ranging from -100°C to +150°C, demonstrating exceptional low-temperature resistance. While it maintains stability in demanding temperature environments, caution should be exercised above 180°C to prevent deformation, peeling of copper foil, or significant changes in electrical performance.
2.3 Versatile Thickness Options:
With a minimum thickness of 0.5mm, TP440 offers flexibility and customization options for various thickness requirements.
2.4 Radiation Resistance and Low Outgassing:
TP440 is designed to be radiation resistant and exhibits low outgassing, ensuring its suitability for critical applications.
2.5 Ideal for Specific Applications:
TP440 is particularly well-suited for Beidou, missile-borne, fuze, and miniaturized antennas. Its unique properties make it an exceptional choice for demanding applications that require exceptional performance and reliability.
2.6 Easy to Machine:
TP440 offers excellent machinability, enabling various processing methods such as drilling, turning, grinding, shearing, and etching. This ease of processing sets it apart from ceramic substrates, unlocking a new level of versatility.
Typical Model Number List
To meet diverse design requirements, TP comes in a range of dielectric constant (DK) options. Some of the notable models are:
TP300 (DK3.0)
TP440 (DK4.4)
TP600 (DK6.0)
TP615 (DK6.15)
TP960 (DK9.6)
TP1020 (DK10.2)
TP1050 (DK10.5)
TP1100 (DK11)
TP1600 (DK16)
TP2000 (DK20)
TP2200 (DK22)
TP2500 (DK25).
PCB Stackup
PCB Stackup: 2-layer rigid PCB
Copper_layer_1 - 35μm
TP440 Core - 0.8 mm
Copper_layer_2 - 35μm
PCB Construction Details
The TP440 PCB boasts meticulous construction details that contribute to its overall performance and reliability:
Parameter |
Value |
Board dimensions |
33.12mm x 42.5mm (1PCS), +/- 0.15mm |
Minimum Trace/Space |
6/9 mils |
Minimum Hole Size |
0.3mm |
Blind vias |
No |
Finished board thickness |
0.9mm |
Finished Cu weight |
1oz (1.4 mils) outer layers |
Via plating thickness |
20 μm |
Surface finish |
Immersion Gold |
Top Silkscreen |
No |
Bottom Silkscreen |
No |
Top Solder Mask |
No |
Bottom Solder Mask |
No |
Electrical test |
100% prior to shipment |
PCB Statistics
The TP440 PCB boasts impressive statistics:
Parameter |
Value |
Components |
5 |
Total Pads |
15 |
Thru Hole Pads |
9 |
Top SMT Pads |
6 |
Bottom SMT Pads |
0 |
Vias |
8 |
Nets |
1 |
Artwork and Quality Standard
To ensure seamless integration into your manufacturing process, the TP440 PCB accepts Gerber RS-274-X artwork files. It complies with the quality standard IPC-Class-2, guaranteeing reliability and adherence to industry standards.
Availability and Applications
The TP DK4.4 PCB is available for global distribution, making it accessible to customers around the world. Its exceptional performance and reliability make it suitable for various applications, including:
GPS antennas
Missile-borne systems
Fuzes
Miniaturized antennas
Conclusion
The Wangling TP440 PCB 0.8mm offers a cutting-edge high-frequency thermoplastic solution that combines excellent electrical performance, reliable dielectric control, and remarkable reliability. With its customizable dielectric constant, wide temperature range, versatility in thickness, radiation resistance, and superior machinability, the TP440 Wangling PCB excels in a broad range of applications. Available worldwide and conforming to IPC-Class-2 quality standards, the TP440 high frequency PCB is the ideal choice for demanding projects that require exceptional performance.
