Rogers 3006 High Frequency PCB RO3006 RF 10mil 25mil 50mil Thick Coating Immersion Gold Tin Silver HASL

The Rogers 3006 is a circuit board that offers excellent mechanical stability and is applicable in the commercial microwave and radio frequency.




  • Item NO.:

    BIC-099-v170.0
  • Order(MOQ):

    1-10
  • Payment:

    T/T
  • Price Range:1 - 50/$99
  • Price Range:1 - 50/$2.9
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-10 days
  • Product Detail

Rogers 3006 High Frequency PCB RO3006 RF PCB 10mil, 25mil and 50mil Thick Coating Immersion Gold, Tin, Silver and HASL

(PCB's are custom-made products, the picture and parameters shown are just for reference)


RO3006 high frequency circuit laminates are ceramic-filled PTFE composites intended for using in commercial microwave and RF applications. Its obvious characteristic is that the electrical performance is exceptional and the mechanical property is stable and consistent. This allows our designer to develop multi-layer board without encountering warpage or reliability problems.


Features RO3006 PCB


More features and applications are as follows:

1.excellent mechanical properties versus temperature, it’s reliable for stripline and multi-layer board constructions.

2.uniform mechanical properties, it’s suitable for use with epoxy glass multi-layer board hybrid designs.

3.low in-plane expansion coefficient matches to copper, it allows for more reliable surface mounted assemblies; ideal for applications sensitive to temperature change and exhibit excellent dimensional stability.


Our PCB Capability (RO3006)

PCB Material:

Ceramic-filled PTFE composite

Designation:

RO3006

Dielectric constant:

6.15 ±0.3 (process)

6.5 (design)

Layer count:

2 Layer, Multilayer, Hybrid PCB

Copper weight:

0.5oz (17 µm), 1oz (35µm), 2oz (70µm)

PCB thickness:

10mil (0.254mm), 25mil (0.635mm)

50mil (1.27mm)

PCB size:

≤400mm X 500mm

Solder mask:

Green, Black, Blue, Yellow, Red etc.

Surface finish:

Bare copper, HASL, ENIG, OSP etc..




Double sided RO3006 high frequency PCBs are available, and also with multi-layer and hybrid construction, 0.5oz to 2oz finished copper, 0.3mm to 1.3mm thick, maximum size 400mm by 500mm, surface finish with bare copper, hot air leveling, immersion gold etc.


Applications of RO3006 PCB


Typical applications

1. Automotive radar applications

2. GPS Antennas

3. Power amplifiers and antennas

4. Patch antennas for wireless communications

5. Direct broadcast satellite

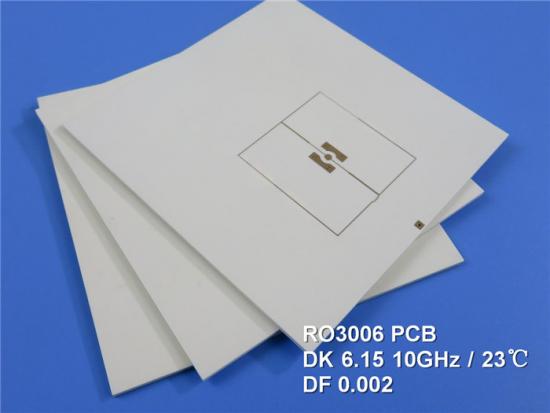

RO3006 PCB


The basic colour of RO3006 PCB is white.


The manufacturing process of RO3006 high frequency PCB is similar to standard PTFE PCB, so it’s suitable for volume manufacturing process winning advantageous market.


Appendix: Data Sheet RO3006

RO3006 Typical Value
Property RO3006 Direction Units Condition Test Method
Dielectric Constant,εProcess 6.15±0.05 Z 10 GHz/23℃ IPC-TM-650 2.5.5.5 Clamped Stripline
Dielectric Constant,εDesign 6.5 Z 8GHz to 40 GHz Differential Phase Length Method
Dissipation Factor,tanδ 0.002 Z 10 GHz/23℃ IPC-TM-650 2.5.5.5
Thermal Coefficient of ε -262 Z ppm/℃ 10 GHz -50℃to 150℃ IPC-TM-650 2.5.5.5
Dimensional Stability 0.27
0.15
X
Y
mm/m COND A IPC-TM-650 2.2.4
Volume Resistivity 105 MΩ.cm COND A IPC 2.5.17.1
Surface Resistivity 105 COND A IPC 2.5.17.1
Tensile Modulus 1498
1293
X
Y
MPa 23℃ ASTM D 638
Moisture Absorption 0.02 % D48/50 IPC-TM-650 2.6.2.1
Specific Heat 0.86 j/g/k Calculated
Thermal Conductivity 0.79 W/M/K 50℃ ASTM D 5470
Coefficient of Thermal Expansion
(-55 to 288℃)
17
17
24
X
Y
Z
ppm/℃ 23℃/50% RH IPC-TM-650 2.4.4.1
Td 500 ℃TGA ASTM D 3850
Density 2.6 gm/cm3 23℃ ASTM D 792
Copper Peel Stength 7.1 Ib/in. 1oz,EDC After Solder Float IPC-TM 2.4.8
Flammability V-0 UL 94
Lead-free Process Compatible Yes
